PE Series Graphite Processing Machine, Graphite Crusher

Product Description

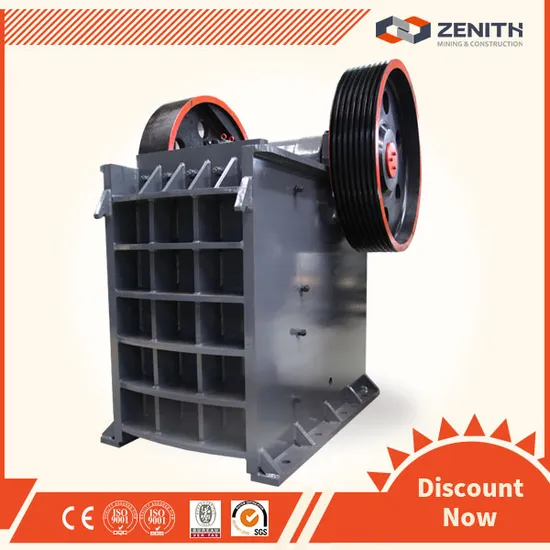

Graphite Processing Machine introduction
Graphite Processing Machine is easy to install, debug and maintenance, the continuous improvement and refinement has made it the preferred jaw crusher among professionals and customers. Every feature of Zenith jaw crusher has been carefully designed to provide superior quality and performance. It is widely used in fields of mining, metallurgical, construction, smelting, hydraulic and chemical industries, etc.
Graphite Processing Machine application:
The Graphite Processing Machine is suitable to crush all kinds of coarse,middle ore or rock, it is widely used in the industries of black, colored metal mine,asbestus, cement,glass,building material etc..The jaw fine crusher is one of ideal equipments of fine shredding mine and clinker.It has the advantages of dependable running,long usage life,high efficiency,low energy consumpotion.The hammer crusher is suitable to crush all kinds of brittle mine, such as:coal,salt,chalk,gypsum,alum,tile,limestone etc.)The impact crusher has the characters of simple structure. large reduction ratio, high output and low consumption etc.
Characteristics of Graphite Processing Machine:
-High ratio of crushing,
-Even final size,
-Simple structure,
-Reliable working condition
-Easy maintenance,
-Low operating cost.
Graphite Processing Machine technical data

Model	Feed Opening (mm)	Max Feeding (mm)	Discharge Opening (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
PE200×350	200×350	170	20-50	2-6	220	6-7.5	Y160M-6/7.5
PE250×400	250×400	210	20-60	5-20	310	6-15	Y180L-6/15	1450×1315×1296
PE250×750	250×750	210	20-60	8-22	320	6-30	Y225M-6/30
PE500×750	500×750	425	50-100	45-100	275	6-55	Y280M-6/55	1890×1916×1870
PE600×900	600×900	500	65-160	70-120	250	6-75	Y315S-6/75	2520×1840×2303
PE750×1060	750×1060	630	80-140	130-260	250	8-90	Y315L1-8/90	2620×2302×3110
PE900×1200	900×1200	750	95-165	220-380	200	8-130	JR127-8/130	3789×2826×3025
PE1000×1200	1000×1200	850	195-265	230-380	200	8-130	JR127-8/130	3889×2826×3025
PE1200×1500	1200×1500	1020	150-300	400-800	220	8-200	YR355M4-8/200	4930×3150×3700

---
