Eco-Friendly Mobile Small Mini China Asphalt Concrete Production Line

Product Description

Product Description
The Eco-friendly mobile Small mini china Asphalt concrete production line adopts a structure of intermittent drying drum and double horizontal shaft forced mixer connected as a whole. The whole machine occupies a small area, is easy to move and disassemble, has a short installation cycle, is easy to operate and maintain, has stable and reliable performance, and has the characteristics of good finished material quality, high technical content of the whole machine, high degree of automation and standardization.

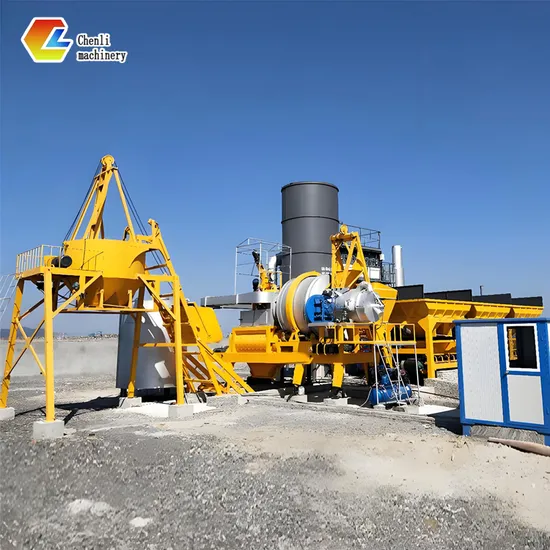

Detailed Photos
1.Aggregate hoist 6. Electric control system 2. Dual purpose kerosene combustion furnace 7. Frame system 3. Drying system 8. Mixing system 4. Asphalt conveying metering system 9. Finished product silo 5. Primary dust removal system 10. Batching machine
First, use the loader to load the cold aggregates of different specifications into the collecting hopper respectively. After the primary weighing, the qualified materials are transported by the belt conveyor to the drum dryer for heating and drying.
During the drying process, the dust and moisture contained in the cold aggregate are sucked into the bag dust collector.
The hot aggregate heated by the drum dryer passes through the hoist to the vibrating screening system above the mixing building. They are screened into different specifications by the vibrating screen, and then respectively enter the storage hopper below. Afterwards, according to different ratios, they are put into the weighing device in turn and re-weighed.
The mineral powder is transported to the temporary storage hopper through the powder elevator, and then to the weighing device for weighing. At the same time, the bitumen is sent to the bitumen metering device through the pipeline for weighing.
Later, put the weighed aggregate, mineral powder and asphalt into the twin-shaft mixer in turn for mixing. When the specified time is reached, open the discharge door of the mixer. Eco-friendly mobile Small mini china Asphalt concrete production line put the evenly stirred mixture into the finished product warehouse. Finally, the mixture is put into the dump truck and transported to the construction site.
Features
1. The integrated design of intermittent drying drum and twin-shaft mixer ensures more thorough mixing and better quality of finished products. 2. The Eco-friendly mobile Small mini china Asphalt concrete production line drying drum rotates clockwise for drying and counterclockwise for discharging. The overall structure is simple and easy to operate. 3. PLC programmable centralized control, touch screen operation, automatic and manual switching is free. 4. The mobile chassis structure makes transportation and installation faster and more convenient. 5. Coal-fired and oil-fired dual-purpose combustion furnaces can be selected according to customers' requirements.
Product Parameters

Product Name		High quality high efficiency Mobile asphalt mixing plant
Model		LQY10	LQY15	LQY20	LQY30	LQY40
Total Power(kw)	Diesel	41.5	54	63.5	104.5	125
	Coal	57.5	75	86.5	127.5	169
Aggregate Batching Hopper(m3)		3m3 x 3	3m3 x 3	3m3 x 3	5m3 x 3	5m3 x 3
Finished Product Storage Hopper(t)		3	5	5	9	9
Feeding Material Hopper Capacity(kg)		500	750	1000	1500	1800
Drying Drum Rotation Speed(r/min)		18	18	16	16	16
Finished Product Temperature(ºC)		120-180, adjustable
Fuel Consumption	Oil	5-7.5kg/h
	Coal	13-15kg/h
Working Cycle	3min

Application
Eco-friendly mobile Small mini china Asphalt concrete production line Compact structure, less land occuption;
Low initial investment, highly cost-effective;
Convenient for transporation and mobilization;
Cold aggregate bins equiped with weight sensors and variable frequency motors;aggregate feeding rate is remote controlled, adjustable and precise;
Drying drum have functions of drying, heating and mixing, low heat loss;optimized inner structure, fast heating and well mixing.
Packaging & Shipping
Taian Chenli Construction Machinery Co., Ltd. excels in developing, designing, manufacturing, engineering, and servicing intelligent complete equipment for building materials. With a profound understanding of building intelligent equipment, we are dedicated to offering users 'practical, efficient, low-carbon, environmentally friendly, intelligent and advanced' products. Adhering to the ideals of 'excellence in quality, simplicity to the extreme,' we focus on high-tech advancements in intelligent and energy-saving equipment for new building materials. Our premier products include Eco-friendly mobile Small mini china Asphalt concrete production line, mortar production lines, tower type sand making machines, and environmental protection equipment. We have earned the market's trust through high standards and reliability, becoming deeply trusted by users.
FAQ
Q: How does your factory do regarding quality control?
A: Quality is the top priority. We have always attached great importance to production quality control.
Q: What can you do?
A: 1. Our products have been aging tested before shipment, and we guarantee the safety when using our products.
Q: Warranty and Return:
A: 1. The products have been aging tested with 48 hours continuous load before shipment. 2. We have the best after-sales service team, if any problems arise, our team will do their best to solve them for you.
Q: Are samples free?
A: Samples are available, but the sample fee should be paid by you. The sample fee will be refunded after further ordering.
Q: Do you accept customized orders?
Yes, we do.
Q: What's the delivery time?
A: It usually takes 7-20 days after payment is confirmed, but the specific time should be based on the order quantity. Q:Can I visit your factory?
A: You are very welcome to visit. The nearest airport to us is Jinan Yaoqiang International Airport, where we offer airport pick-up services.

---
