Current Limiting Reactor, Filter Reactor, Shunt Reactor, American Power System, Provide Pricing and Technical Support

US$1,000.00-80,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

Reactor series

Cooling Method

Natural Cooling

Winding Type

Air-Core Reactor

Certification

ISO9001-2000, ISO9001, CCC

Usage

Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer

Frequency Characteristics

Power Frequency

Shape of Core

Air-Core Reactor

Brand

Sinm

Rated Frequency

50Hz

Design Service Life

30 Years

Reactance Rate

4%, 5%, 6%, 8%, 10%, 12%, 14%, 16%, 18%, 20%, 24%

Trademark

Sinm

Origin

China

Production Capacity

5000pieces

Product Description

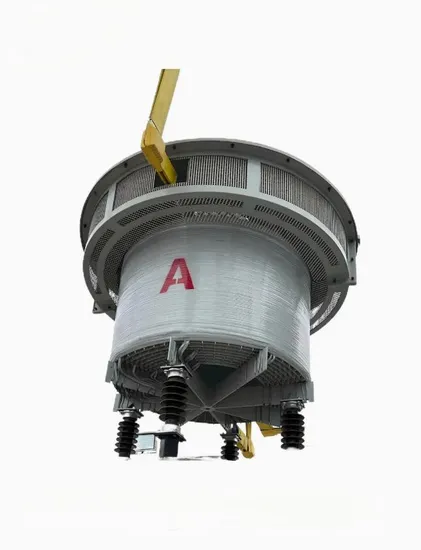

Product Description Zhejiang Shenmeng Company specializes in the production of reactors, including: Shunt reactor,Current-limiting reactor,Filter reactor,Series reactor,Flat wave DC reactor,Dry type iron core reactor,Oil type reactors, etc.
The rated voltage of the reactor is 6kV~750kV, the current is 100A~20000A, and the capacity is 10kvar~300000kvar.
The advantages of dry-type air-core reactor 1.High mechanical strength to withstand elevated short circuit forces. 2.Isothermal design method which ensures windings in all layers are the same with respect to the temperature rise. 3.Low noise level for noise sensitive applications. 4.Low eddy-current loss.The winding is wound in parallel with small diameter aluminum (copper) conductor of multiple dielectric layers, greatly reduce eddy current loss. 5.Epoxy impregnated fiberglass encapsulated construction. 6.Reasonable insulation structure, high reliability of inter-turn insulation. 7.Surface treatment for protection against UV radiation and pollution. 8.Minimum maintenance requirements and environmentally friendly. 9.All design are based on IEC, GB, JB standard.
Zhengjiang Shenmeng Company not only produces hollow core reactors, but also is a professional manufacturer of dry-type iron core reactors, oil type reactors, and various types of transformers.
Dry-type iron core reactor:
Product Parameters Shunt reactor:The shunt reactor produced by our company has a voltage level of 6KV~110KV and reactor capacity 500~100000kvar. BKGKL series shunt reactors are connected in parallel with the low-voltage winding side of 110kV, 220kV or 500kV substations ,for reactive compensation of capacitance for long-distance transmission line, which will ensure stable voltage running of transmission and distribution system.The shunt reactor produced by our company has a voltage level of 6KV~110KV and reactor capacity 500~100000kvar. The impedance or reactance rate is determined according to customer requirements. The table below shows some common parameters. If you have special requirements, please contact Zhejiang Shenmeng Company.10kV,35kV,66kV series

Part No.	System Rated voltage kV	Terminal voltage of reactor kV	Rated reactance Ω	Rated current A	Single- phase power kvar	Single- phase loss75C kW	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	System Rated voltage kV	Terminal voltage of reactor kV	Rated reactance Ω	Rated current A	Single- phase power kvar	Single- phase loss75C kW	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
BKGKL-500/10	10	10/√3	66.67	86.60	500	7.8	1440	1852	1250	1030	3 phase side by side
BKGKL-1000/10		10/√3	33.33	173.20	1000	10.6	1480	1752	1200	1800
BKGKL-2000/ 10		10/√3	16.67	346.40	2000	14.7	1790	2152	1500	2520
BKGKL-3333/10		10/√3	10.00	577.28	3333	18.5	1950	2204	1640	3350
BKGKL-4000/ 10		10/√3	8.33	692.80	4000	22.8	2240	1470	2000	2520
BKGKL-5000/ 10		10/√3	6.67	866.00	5000	25.6	2120	1520	1900	2680
BKGKL-10000/ 10		10/√3	3.33	1732.00	10000	44.0	2530	1760	2410	4300
BKGKL-15000/ 10		10/√3	2.22	2598.00	15000	54.2	2550	1780	2280	5600
BKGKL-2000/35	35	35/√3	204.00	99.00	2000	15.2	2230	2320	2030	2980
BKGKL-3333/35		35/√3	122.40	165.00	3333	19.5	2280	2504	2000	4360
BKGKL-5000/35		35/√3	81.60	247.50	5000	25.0	2033	2580	1750	3960
BKGKL-8000/35		35/√3	51.00	396.00	8000	36.0	2530	2520	2390	5520
BKGKL-10000/35		35/√3	40.80	495.00	10000	44.8	2770	2430	2500	6000
BKGKL-15000/35		35/√3	27.20	742.00	15000	49.0	2820	2380	2530	7500
BKGKL-20000/35		35/√3	20.41	990.00	20000	54.5	2930	2580	2650	8890
BKGKL-31500/35		35/√3	12.96	1559.00	31500	88.0	3060	2360	2780	10800
BKGKL-20000/66	66	66/√3	72.60	524.85	20000	60.0	2860	3680	2700	11600
BKGKL-30000/66		66/√3	48.40	787.27	30000	84.0	3220	3680	3000	13750
BKGKL-40000/66		66/√3	36.30	1049.70	40000	88.0	3380	3750	3200	18500

1,Above technical parameters are only for aluminum windings. For copper windings, we would provide separately.
2,The products produced by Zhejiang Shenmeng include but are not limited to the products listed in the table. If the customer has specified parameters, they need to confirm separately.
3,The data in the table are only for reference. The final interpretation right is owned by Zhejiang Shenmeng
Current limiting reactor:
The current limiting reactor produced by our company has a voltage level of 6KV~110KV and a current of 800A~20000A. The impedance or reactance rate is determined according to customer requirements. The table below shows some common parameters. If you have special requirements, please contact
Current limiting reactor:
The current limiting reactor produced by our company has a voltage level of 6KV~110KV and a current of 800A~20000A. The impedance or reactance rate is determined according to customer requirements. The table below shows some common parameters. If you have special requirements, please contact Zhejiang Shenmeng Company.
6kV series

Part No.	Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75C kW	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75C kW	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
XKGKL-6-800-5	800	5%	0.2170	16.00	139	3.7	1020	740	860	250	side by side
XKGKL-6-800-8		8%	0.3460	10.00	222	5.3	1220	790	1060	320
XKGKL-6-800-10		10%	0.4330	8.00	277	6.4	1300	840	1130	380
XKGKL-6-800-12		12%	0.5200	6.67	333	7.0	1300	820	1100	420
XKGKL-6-1000-5	1000	5%	0.1730	20.00	173	4.4	1150	660	1030	280
XKGKL-6-1000-8		8%	0.2770	12.50	277	6.3	1240	760	1130	360
XKGKL-6-1000-10		10%	0.3460	10.00	346	7.1	1290	840	1180	438
XKGKL-6-1000-12		12%	0.4160	8.33	416	8.4	1350	840	1170	500
XKGKL-6-1500 5	1500	5%	0.1150	30.00	260	6.1	1220	700	1030	340
XKGKL-6-1500-8		8%	0.1850	18.75	416	7.8	1420	780	1230	500
XKGKL-6-1500-10		10%	0.2310	15.00	520	7.5	1470	830	1280	570
XKGKL-6-1500-12		12%	0.2770	12.50	624	9.1	1470	900	1280	610
XKGKL-6-2000-5	2000	5%	0.0870	40.00	346	7.3	1310	700	1120	412
XKGKL-6-2000 8		8%	0.1390	25.00	554	8.1	1410	800	1220	565
XKGKL-6-2000-10		10%	0.1730	20.00	693	9.8	1500	800	1220	662
XKGKL-6-2000-12		12%	0.2080	16.67	831	10.0	1550	830	1280	730
XKGKL-6-2500-5	2500	5%	0.0690	50.00	433	8.6	1400	800	1120	486
XKGKL-6-2500-8		8%	0.1110	31.25	693	10.1	1464	940	1170	690
XKGKL-6-2500 10		10%	0.1390	25.00	866	11.0	1500	980	1230	770
XKGKL-6-2500-12		12%	0.1660	20.83	1039	12.5	1610	940	1510	854
XKGKL-6-3000-5	3000	5%	0.0580	60.00	520	8.1	1500	800	1230	538
XKGKL-6-3000-8		8%	0.0920	37.50	831	10.8	1530	900	1430	740
XKGKL-6-3000-10		10%	0.1150	30.00	1039	12.5	1580	950	1480	850
XKGKL-6-3000 12		12%	0.1390	25.00	1247	15.1	1670	930	1480	940
XKGKL-6-3500-5	3500	5%	0.0494	70.00	606	9.6	1570	750	1380	780
XKGKL-6-3500-8		8%	0.0791	43.75	970	12.3	1570	880	1380	960
XKGKL-6-3500-10		10%	0.0990	35.00	1212	14.2	1620	960	1440	1052
XKGKL-6-3500-12		12%	0.1190	29.17	1455	15.6	1670	980	1490	1323
XKGKL-6-4000-5	4000	5%	0.0433	80.00	693	10.1	1620	760	1430	825
XKGKL-6-4000-8		8%	0.0693	50.00	1109	13.2	1660	880	1480	946
XKGKL-6-4000-10		10%	0.0866	40.00	1386	15.7	1670	980	1480	1125
XKGKL-6-4000-12		12%	0.1040	33.33	1663	17.9	1760	950	1480	1204

10kV series

XKGKL-10-800-5	800	5%	0.361	16.00	230.9	4.6	1270	770	1170	350	side by side
XKGKL-10-800-8		8%	0.577	10.00	369.5	5.7	1380	840	1280	420
XKGKL-10-800-10		10%	0.722	8.00	461.9	6.5	1480	890	1380	490
XKGKL-10-800-12		12%	0.866	6.67	554.3	7.7	1530	940	1430	547
XKGKL-10-1000-5	1000	5%	0.289	20.00	288.7	6.0	1330	710	1240	370
XKGKL-10-1000-8		8%	0.462	12.50	461.9	7.2	1480	820	1380	530
XKGKL-10-1000-10		10%	0.577	10.00	577.4	8.7	1670	760	1480	580
XKGKL-10-1000-12		12%	0.693	8.33	692.8	9.8	1670	820	1480	630
XKGKL-10-1500-5	1500	5%	0.192	30.00	433.0	8.1	1380	730	1200	477
XKGKL-10-1500 8		8%	0.308	18.75	692.8	9.4	1590	780	1320	662
XKGKL-10-1500-10		10%	0.385	15.00	866.1	11.3	1590	850	1330	718
XKGKL-10-1500-12		12%	0.462	12.50	1039.3	12.8	1700	880	1430	857
XKGKIA0-2000/5	2000	5%	0.144	40.00	577.4	9.1	1710	600	1580	544
XKGKL-10-2000-8		8%	0.231	25.00	923.8	11.6	1770	700	1590	746
XKGKL-10-2000-10		10%	0.289	20.00	1154.7	13.5	1870	730	1680	778
XKGKL-10-2000-12		12%	0.346	16.67	1385.7	14.9	1860	800	1680	1000
XKGKL-10-2500-5	2500	5%	0.115	50.00	721.7	10.2	1544	790	1280	678
XKGKL-10-2500-8		8%	0.185	31.25	1154.7	13.7	1600	960	1330	946
XKGKL-10-2500-10		10%	0.231	25.00	1443.4	15.3	1740	980	1480	1085
XKGKL-10-2500-12		12%	0.277	20.83	1732.1	18.1	1730	1000	1460	1200
XKGKL-10-3000-5	3000	5%	0.096	60.00	866.0	11.2	1620	830	1440	733
XKGKL-10-3000-8		8%	0.154	37.50	1386.0	15.1	1720	930	1540	975
XKGKL-10-3000-10		10%	0.192	30.00	1732.0	17.5	1750	1130	1650	1103
XKGKL-10-3000-12		12%	0.231	25.00	2079.0	19.1	1760	1030	1500	1253
XKGKL-10-3500-5	3500	5%	0.082	70.00	1010.0	12.7	1700	800	1440	980
XKGKL-10-3500-8		8%	0.132	43.75	1617.0	15.7	1820	880	1710	1322
XKGKL-10-3500-10		10%	0.165	35.00	2021.0	18.9	1820	950	1710	1500
XKGKL-10-3500-12		12%	0.198	29.17	2425.0	20.1	1820	1020	1710	1700
XKGKL-10-4000-5	4000	5%	0.072	80.00	1155.0	12.1	1750	800	1640	1058
XKGKL-10-4000 8		8%	0.115	50.00	1848.0	17.8	1880	880	1700	1461
XKGKL-10-4000-10		10%	0.144	40.00	2309.0	20.7	1970	880	1700	1687
XKGKL-10-4000-12		12%	0.173	33.33	2771.0	22.6	2010	930	1740	1833

35kV series

XKGKL-35-200-4	200	4%	4.042	5.00	161	3.8	1590	600	1130	340	side by side
XKGKL-35-200-5		5%	5.052	4.00	202	4.7	1640	630	1180	410
XKGKL-35-200-6		6%	6.062	3.33	242	5.2	1700	630	1180	480
XKGKL-35-200-8		8%	8.083	2.50	323	6.3	1760	650	1570	560
XKGKL-35-400-5	400	5%	2.256	8.00	404	6.7	1780	730	1330	670
XKGKL-35-400 8		8%	4.042	5.00	646	8.4	1700	690	1510	880
XKGKL-35-400-10		10%	5.052	4.00	808	9.6	2000	680	1810	970
XKGKL-35-400 12		12%	6.062	3.33	970	10.7	2000	730	1810	1050
XKGKL-35-600-5	600	5%	1.684	12.00	606	8.2	1680	650	1550	850
XKGKL-35-600-8		8%	2.694	7.50	970	10.5	1980	700	1790	1120
XKGKL-35-600-10		10%	3.368	6.00	1212	12.9	1980	780	1790	1340
XKGKL-35-600-12		12%	4.042	5.00	1454	13.8	2030	800	1840	1520
XKGKL-35-800-5	800	5%	1.263	16.00	808	9.4	1800	650	1600	980
XKGKL-35-800-8		8%	2.021	10.00	1293	13.3	2100	650	1920	1420
XKGKL-35-800-10		10%	2.526	8.00	1616	14.9	2100	830	1920	1650
XKGKL-35-800-12		12%	3.031	6.67	1939	16.5	2100	760	1920	1720
XKGKL-35-1000-5	1000	5%	1.010	20.00	1010	10.2	1670	700	1540	1270
XKGKL-35-1000 8		8%	1.617	12.50	1616	14.2	1870	800	1680	1620
XKGKL-35-1000-10		10%	2.021	10.00	2020	16.9	1940	800	1750	1740
XKGKL-35-1000 12		12%	2.425	8.33	2424	18.6	2070	880	1880	1870
XKGKL-35-1500-5	1500	5%	0.674	30.00	1515	13.8	1700	750	1510	1550
XKGKL-35-1500-8		8%	1.078	18.75	2424	17.9	1820	800	1620	1910
XKGKL-35-1500-10		10%	1.347	15.00	3031	20.7	1800	900	1600	2200
XKGKL-35-1500-12		12%	1.617	12.50	3637	23.2	2300	900	2110	2380

Filter reactor:
The filter reactor produced by our company has a voltage level of 6KV~220KV and reactor capacity 50~100000kvar. The impedance or reactance rate is determined according to customer requirements. The table below shows some common parameters. If you have special requirements, please contact Zhejiang Shenmeng Company.
10kV series

Part No.	Rated current A	Rated inductance mH	Inductance adjustment range	Single- phase power kvar	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	Rated current A	Rated inductance mH	Inductance adjustment range	Single- phase power kvar	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
LKGKL-10-105-1.75	105.00	1.75	±5%	6.06	700	652	550	150	side by side turn adjustment
LKGKL-10-145-1.34	145.00	1.34	±5%	8.85	710	652	550	140
LKGKL-10-154-1.28	154.00	1.28	±5%	9.54	710	662	550	160
LKGKL-10-250-0.72	250.00	0.72	±5%	14.00	740	632	550	160
LKGKL-10-95-5.08	95.00	5.08	±5%	14.40	740	622	550	170
LKGKL-10-145-3.30	145.00	3.30	±5%	21.80	750	652	600	170
LKGKL-10-153-3.06	153.00	3.06	±5%	22.50	760	632	600	170
LKGKL-10-195-2.16	195.00	2.16	±5%	25.80	760	682	600	180
LKGKL-10-95-9.95	95.00	9.95	±5%	28.21	770	672	600	180
LKGKL-10-205-2.16	205.00	2.16	±5%	28.52	770	682	600	190
LKGKL-10-79-15.43	79.00	15.43	±5%	30.25	810	732	600	200
LKGKL-10-240-1.91	240.00	1.91	±5%	34.56	920	742	600	210
LKGKL-10-130-7.04	130.00	7.04	±5%	37.38	950	652	650	230
LKGKL-10-175-5.37	175.00	5.37	±5%	51.67	1030	682	850	250
LKGKL-10-257-3.72	257.00	3.72	±5%	77.19	1040	612	850	300
LKGKL-10-95-28.20	95.00	28.20	±5%	79.96	1090	632	850	310
LKGKL-10-140-19.33	140.00	19.33	±5%	119.02	1160	642	950	350
LKGKL-10-190-13.72	190.00	13.72	±5%	155.60	1200	662	950	370
LKGKL-10-205-12.79	205.00	12.79	±5%	168.86	1320	682	1050	390
LKGKL-10-250-10.47	250.00	10.47	±5%	205.58	1350	722	1050	400
LKGKL-10-270-27.64	270.00	27.64	±5%	633.02	1550	852	1350	550
LKGKL-10-330-0.58	330.00	0.58	±5%	19.84	830	432	600	250	side by side pitch adjustment
LKGKL-10-395-0.46	395.00	0.46	±5%	22.55	880	462	600	270
LKGKL-10-450-0.42	450.00	0.42	±5%	26.72	900	492	600	290
LKGKL-10-520 34	520.00	0.34	±5%	28.88	920	552	650	300
LKGKL-10-540-0.35	540.00	0.35	±5%	32.06	1040	562	800	300
LKGKL-10-380-1.15	380.00	1.15	±5%	52.17	1090	542	800	320
LKGKL-10-530-0.88	530.00	0.88	±5%	77.66	1050	552	800	330
LKGKL-10-400-2.33	400.00	2.33	±5%	117.12	1150	602	900	360
LKGKL-10-540-1.72	540.00	1.72	±5%	157.57	1260	642	1000	380
LKGKL-10-540-1.80	540.00	1.80	±5%	164.90	1300	622	1050	400
LKGKL-10-390-6.58	390.00	6.58	±5%	314.42	1420	652	1150	470

35kV series

Part No.	Rated current A	Rated inductance mH	Inductance adjustment range	Single- phase power kvar	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	Rated current A	Rated inductance mH	Inductance adjustment range	Single- phase power kvar	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
LKGKL-35-44-16.43	44.00	16.43	±5%	9.99	680	802	500	80	side by side turn adjustment
LKGKL-35-80-8.55	80.00	8.55	±5%	17.19	730	672	550	120
LKGKL-35-130-3.26	130.00	3.26	±5%	17.31	730	652	550	120
LKGKL-35-75-21.10	75.00	21.10	±5%	37.29	760	652	550	140
LKGKL-35-130-7.45	130.00	7.45	±5%	39.55	780	662	550	150
LKGKL-35-90-18.80	90.00	18.80	±5%	47.84	810	912	600	170
LKGKL-35-44-79.5	44.00	79.50	±5%	48.35	1040	1102	850	170
LKGKL-35-78-44.00	78.00	44.00	±5%	84.10	1020	1052	850	230
LKGKL-35-170-9.63	170.00	9.63	±5%	87.43	1010	1052	850	240
LKGKL-35-95-34.66	95.00	34.66	±5%	98.27	1010	1072	850	270
LKGKL-35-85-57.18	85.00	57.18	±5%	129.79	1030	1302	850	300
LKGKL-35-100-48.14	100.00	48.14	±5%	151.24	1120	1012	900	310
LKGKL-35-200-16.25	200.00	16.25	±5%	204.20	1180	1212	900	330
LKGKL-35-170-27.11	170.00	27.11	±5%	246.14	1200	942	950	350
LKGKL-35-245-13.53	245.00	13.53	±5%	255.14	1220	852	950	350
LKGKL-35-78-135.30	78.00	135.30	±5%	258.60	1280	1552	1450	400
LKGKL-35-270-13.20	270.00	13.20	±5%	302.31	1350	1152	1300	420
LKGKL-35-95-106.90	95.00	106.90	±5%	303.09	1370	1552	1150	420
LKGKL-35-114-87.82	114.00	87.82	±5%	358.55	1370	1352	1100	450
LKGKL-35-250-18.47	250.00	18.47	±5%	362.66	1380	1362	1100	460
LKGKL-35-120-82.22	120.00	82.22	±5%	371.95	1400	1382	1150	520
LKGKL-35-125-81.48	125.00	81.48	±5%	399.96	1410	1352	1150	530
LKGKL-35-130-84.50	130.00	84.50	±5%	448.63	1450	1362	1250	570
LKGKL-35-68-363.90	68.00	363.90	±5%	528.63	1430	1952	1500	600
LKGKL-35-70-392.40	70.00	392.40	±5%	604.05	1460	1302	1500	680
LKGKL-35-90-260.10	90.00	260.10	±5%	661.87	1420	1502	1350	750
LKGKL-35-220-45.84	220.00	45.54	±5%	692.45	1450	1742	1150	860
LKGKL-35-100-249.60	100.00	249.60	±5%	784.14	1590	2052	1150	900
LKGKL-35-130-166.00	130.00	166.00	±5%	881.34	1780	1602	1500	1050
LKGKL-35-125-217.20	125.00	217.20	±5%	1066.18	1780	1522	1600	1200
LKGKL-35-175-123.80	175.00	123.80	±5%	1191.09	1740	1502	1450	1420
LKGKL-35-170-149.10	170.00	149.10	±5%	1353.71	1850	1652	1350	1640
LKGKL-35-200-137.20	200.00	137.20	±5%	1724.10	1890	1882	1500	2150
LKGKL-35-260-97.74	260.00	97.74	±5%	2075.72	2050	1922	1750	2640
LKGKL-35-395-1.55	395	1.55	±5%	75.98	1160	592	850	250	side by side pitch adjustment
LKGKL-35-480-1.37	480	1.37	±5%	99.16	1150	612	850	270
LKGKL-35-340-4.06	340	4.06	±5%	147.45	1180	582	850	300
LKGKL-35-480-3.38	480	3.38	±5%	244.65	1200	652	950	380
LKGKL-35-350-8.61	350	8.61	±5%	331.35	1210	702	950	450
LKGKL-35-400-7.87	400	7.87	±5%	395.59	1250	712	950	550
LKGKL-35-300-15.71	300	15.71	±5%	•444.	1550	652	1200	590
LKGKL-35-450-7.17	450	7.17	±5%	456.14	1560	662	1200	620
LKGKL-35-350-13.90	350	13.9	±5%	534.93	1570	692	1200	650
LKGKL-35-550-6 28	550	6.28	±5%	596.81	1550	662	1200	720
LKGKL-35-740-3 92	740	3.92	±5%	674.37	1620	652	1300	780
LKGKL-35-500-8 61	500	8.61	±5%	676.23	1660	642	1300	880
LKGKL-35-300-27.78	300	27.78	±5%	785.46	1670	662	1400	920
LKGKL-35-750-4.48	750	4.48	±5%	791.68	1680	652	1400	950
LKGKL-35-520-8.27	520	8.27	±5%	702.52	1700	642	1400	860
LKGKL-35-300-29.92	300	29.92	±5%	845.97	1730	662	1400	960
LKGKL-35-1000-2.76	1000	2.76	±5%	867.08	1750	704	1450	980
LKGKL-35-550-9.34	550	9.34	±5%	887.61	1760	852	1450	1050
LKGKL-35-297-33.99	297	33.99	±5%	941.92	1770	852	1500	1080
LKGKL-35-950-3.67	950	3.67	±5%	1040.55	1800	864	1500	1160
LKGKL-35-390-22.88	390	22.88	±5%	1093.29	1790	862	1500	1240
LKGKL-35-355-28.94	355	28.94	±5%	1145.79	1780	852	1450	1350
LKGKL-35-1200-2.72	1200	2.72	±5%	1230.5	1800	864	1550	1450
LKGKL-35-950-4.52	950	4.52	±5%	1281.55	1850	852	1550	1480
LKGKL-35-400-25.57	400	25.57	±5%	1285.29	1880	804	1650	1530
LKGKL-35-1350-2.41	1350	2.41	±5%	1379.86	1820	854	1650	1600
LKGKL-35-900-5.60	900	5.6	±5%	1425.03	1790	852	1500	1570
LKGKL-35-480-20.78	480	20.78	±5%	1504.1	1810	762	1550	1590
LKGKL-35-600-14.70	600	14.7	±5%	1662.53	1820	834	1550	1820
LKGKL-35-980-5.63	980	5.63	±5%	1698.67	1870	864	1550	1850
LKGKL-35-650-14.96	650	14.96	±5%	1985.67	1970	854	1650	1980
LKGKL-35-700-14.67	700	14.67	±5%	2258.27	2130	904	1750	2490
LKGKL-35-300-80.89	300	80.89	±5%	2287.11	2150	1454	1850	2670
LKGKL-35-940-9.09	940	9.09	±5%	2523.30	2170	1544	1950	2690	side by side pitch adjustment
LKGKL-35-350-73.88	350	73.88	±5%	2843.23	2140	1054	2150	2720
LKGKL-35-1110-7.51	1110	7.51	±5%	2906.94	2160	1284	2200	2760
LKGKL-35-990-9.82	990	9.82	±5%	3023.65	2170	1564	1950	2740
LKGKL-35-390-58.18	390	58.18	±5%	2780.05	2160	1204	1600	2770
LKGKL-35-490-50.82	490	50.82	±5%	3833.33	2080	1304	1750	2960
LKGKL-35-1300-7.36	1300	7.36	±5%	3907.64	2020	1354	1760	3120
LKGKL-35-500-50.29	500	50.29	±5%	3949.76	2100	1354	1750	3600
LKGKL-35-590-42.04	590	42.04	±5%	4597.44	2080	1434	1750	3700
LKGKL-35-700-32.76	700	32.76	±5%	5043.01	2100	1554	1800	4060
LKGKL-35-800-31.53	800	31.53	±5%	6339.48	2250	1364	2000	4100
LKGKL-35-950-24.06	950	24.06	±5%	6821.70	2310	1064	2150	4200
LKGKL-35-980-25.67	980	26.67	±5%	8046.83	2360	1114	2150	4450
LKGKL-35-1150-23.14	1150	23.14	±5%	9614.10	2490	1104	2200	5070

66kV series

Part No.	Rated current A	Rated inductance mH	Inductance adjustment range	Single- phase power kvar	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	Rated current A	Rated inductance mH	Inductance adjustment range	Single- phase power kvar	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
LKK-66-450-6.24	450	6.24	±5%	396.97	1190	702	850	710	side by side pitch adjustment
LKK-66-450-12.23	450	12.23	±5%	778.04	1550	750	1300	1010
LKK-66-300-64.28	300	64.28	±5%	1817.47	1690	852	1450	1720
LKK-66-680-8.17	680	8.17	±5%	1186.83	1600	752	1350	1340
LKK-66-850-6.58	850	6.58	±5%	1493.53	1750	752	1500	1620
LKK-66-600-13.93	600	13.93	±5%	1575.44	1700	802	1450	1600
LKK-66-750-25.71	750	25.71	±5%	4543.33	2280	1004	2000	3300
LKK-66-595-83.33	595	83.33	±5%	9267.97	2580	1274	1250	4784
LKK-66-700-69.45	700	69.45	±5%	10690.99	2540	1274	2280	5430

The series reactor produced by our company has a voltage level of 6KV~110KV and reactor capacity 50~100000kvar. The impedance or reactance rate is determined according to customer requirements. The table below shows some common parameters. If you have special requirements, please contact Zhejiang Shenmeng Company.
10kV series

Part No.	Shunt capacitor bank		Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75C kW	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	Rated power kvar	Rated voltage kV	Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75C kW	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
CKGKL-3.3/10-1	1000	10.5/√3	55.0	1%	1.09	5.50	3.3	0.31	490	682	330	80	side by side
CKGKL-16.7/10-5		11/√3	52.5	5%	6.06	1.05	16.7	1.03	700	852	600	180
CKGKL-40/10-12		12/√3	48.1	12%	17.29	0.40	40.0	1.99	850	1252	650	250
CKGKL-6.7/10-1	2000	10.5/√3	110.0	1%	0.55	11.0o	6.7	0.52	490	812	330	90
CKGKL-33.3/10-5		11/√3	105.0	5%	3.02	2.10	33.3	1.73	730	732	550	200
CKGKL-80/10-12		12/√3	96.2	12%	8.64	0.80	80.0	3.34	830	1132	650	320
CKGKL-8/10-1	2400	10.5/√3	132.0	1%	0.46	13.20	8.0	0.59	550	652	500	100
CKGKL-40/10-5		11/√3	126.0	5%	2.52	2.52	40.0	1.99	800	732	600	210
CKGKL-96/10-12		12/√3	115.5	12%	7.20	0.96	96.0	3.83	870	952	600	330
CKGKL-10/10-1	3000	10.5/√3	166.6	1%	0.36	16.50	10.0	0.70	620	702	500	110
CKGKL-50/10-5		11/√3	156.3	5%	2.05	3.15	50.0	2.35	820	752	650	250
CKGKL-120/10-12		12/√3	144.3	12%	5.76	1.20	120.0	44.00	880	992	600	410
CKGKL-12/10-1	3600	10.5/√3	198.0	1%	0.31	19.80	12.0	0.81	670	582	500	120
CKGKL-60/10-5		11/√3	189.0	5%	1.68	3.78	60.0	2.69	820	722	550	270
CKGKL-144/10-12		12/√3	173.2	12%	4.80	44.00	144.0	3.95	880	1052	600	440
CKGKL-13.3/10-1	4000	10.5/√3	220.0	1%	0.27	22.0o	13.3	0.87	680	592	500	130
CKGKL-66.7/10-5		11/√3	210.0	5%	1.51	4.20	66.7	2.92	860	902	700	310
CKGKL-160/10-12		12/√3	192.5	12%	4.32	1.60	160.0	4.27	890	1002	600	470
CKGKL-16/10-1	4800	10.5/√3	264.0	1%	0.23	26.40	16.0	1.00	680	592	550	130
CKGKL-80/10-5		11/√3	252.0	5%	1.26	5.04	80.0	3.34	820	852	550	330
CKGKL-192/10-12		12/√3	231.0	12%	3.60	1.92	192.0	4.90	930	1672	550	530
CKGKL-16.7/10-1	5000	10.5/√3	275.0	1%	0.22	27.50	16.7	1.03	700	602	550	140
CKGKL-83.3/10-5		11/√3	262.4	5%	1.21	5.25	83.3	3.45	820	952	650	350
CKGKL-200/10-12		12/√3	240.6	12%	3.45	2.00	200.0	5.05	1120	782	800	490
CKGKL-20/10-1	6000	10.5/√3	330.0	1%	0.18	33.00	20.0	1.18	720	602	550	150
CKGKL-100/10-5		11/√3	315.0	5%	1.01	6.30	100.0	3.00	970	732	600	360
CKGKL-240/10-12		12/√3	288.7	12%	2.88	2.•40	240.0	5.79	1130	1082	900	580
CKGKL-23.3/10-1	7000	10.5/√3	385.0	1%	0.16	38.50	23.3	1.33	720	632	550	170
CKGKL-116.7/10-5		11/√3	367.4	5%	0.86	7.35	116.7	3.37	980	752	700	370
CKGKL-280/10-12		12/√3	336.8	12%	2.47	2.83	280.0	6.50	1150	1092	750	600
CKGKL-26.7/10-1	8000	10.5/√3	439.9	1%	14.00	44.00	26.7	1.47	730	652	550	170
CKGKL-133.3/10-5		11/√3	420.0	5%	0.76	8.40	133.3	3.73	910	852	650	410
CKGKL-320/10-12		12/√3	384.9	12%	2.16	3.21	320.0	7.19	1290	1002	750	620
CKGKL-30/10-1	9000	10.5/√3	494.9	1%	0.12	49.49	30.0	1.60	730	652	550	190
CKGKL-150/10-5		11/√3	472.4	5%	0.67	9.45	150.0	4.07	930	852	650	430
CKGKL-360/10-12		12/√3	433.0	12%	1.92	3.61	360.0	7.85	1250	1002	650	660
CKGKL-33.3/10-1	10000	10.5/√3	549.9	1%	0.11	54.99	33.3	1.73	730	652	550	210
CKGKL-166.7/10-5		11/√3	524.9	5%	0.61	10.50	166.7	4.41	1010	882	710	470
CKGKL-400/10-12		12/√3	481.1	12%	1.73	4.00	400.0	8.50	1240	982	990	730

20kV series

Part No.	Shunt capacitor bank		Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75C kW	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	Rated power kvar	Rated voltage kV	Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75C kW	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
CKGKL-13.3/20-1	4000	21/√3	110.0	1%	1.10	11.00	13.3	0.87	680	732	600	160	side by side
CKGKH6.7/20-5		22/√3	105.0	5%	6.05	2.10	66.7	2.92	1100	985	800	260
CKGKL-160/20-12		24/√3	96.2	12%	17.29	0.80	160.0	4.27	1200	1432	800	430
CKGKL-20/20-1	6000	21/√3	165.0	1%	0.73	16.50	20.0	1.18	700	732	550	170
CKGKL-100/20-5		22/√3	157.5	5%	4.03	3.15	100.0	3.00	980	972	650	280
CKGKL-240/20-12		24/√3	144.3	12%	11.53	1.20	240.0	5.79	1170	1302	750	480
CKGKL-26.7/20-1	8000	21/√3	219.9	1%	0.55	21.99	26.7	l.47	700	752	550	200
CKGKL-133.3/20-5		22/√3	210.0	5%	3.02	4.20	133.3	3.73	1150	862	750	350
CKGKL-320/20-12		24/√3	192.5	12%	8.64	1.60	320.0	7.19	1240	1252	850	570
CKGKL-33.3/20-1	10000	21/√3	274.9	1%	44.00	27.49	33.3	1.73	730	752	550	230
CKGKL-166.7/20-5		22/√3	262.4	5%	2.42	5.25	166.7	4.41	1180	832	700	430
CKGKL-400/20-12		24/√3	240.6	12%	6.91	2.00	400.0	8.50	1220	12

Company.
6kV series

Part No.	Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75C kW	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75C kW	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
XKGKL-6-800-5	800	5%	0.2170	16.00	139	3.7	1020	740	860	250	side by side
XKGKL-6-800-8		8%	0.3460	10.00	222	5.3	1220	790	1060	320
XKGKL-6-800-10		10%	0.4330	8.00	277	6.4	1300	840	1130	380
XKGKL-6-800-12		12%	0.5200	6.67	333	7.0	1300	820	1100	420
XKGKL-6-1000-5	1000	5%	0.1730	20.00	173	4.4	1150	660	1030	280
XKGKL-6-1000-8		8%	0.2770	12.50	277	6.3	1240	760	1130	360
XKGKL-6-1000-10		10%	0.3460	10.00	346	7.1	1290	840	1180	438
XKGKL-6-1000-12		12%	0.4160	8.33	416	8.4	1350	840	1170	500
XKGKL-6-1500 5	1500	5%	0.1150	30.00	260	6.1	1220	700	1030	340
XKGKL-6-1500-8		8%	0.1850	18.75	416	7.8	1420	780	1230	500
XKGKL-6-1500-10		10%	0.2310	15.00	520	7.5	1470	830	1280	570
XKGKL-6-1500-12		12%	0.2770	12.50	624	9.1	1470	900	1280	610
XKGKL-6-2000-5	2000	5%	0.0870	40.00	346	7.3	1310	700	1120	412
XKGKL-6-2000 8		8%	0.1390	25.00	554	8.1	1410	800	1220	565
XKGKL-6-2000-10		10%	0.1730	20.00	693	9.8	1500	800	1220	662
XKGKL-6-2000-12		12%	0.2080	16.67	831	10.0	1550	830	1280	730
XKGKL-6-2500-5	2500	5%	0.0690	50.00	433	8.6	1400	800	1120	486
XKGKL-6-2500-8		8%	0.1110	31.25	693	10.1	1464	940	1170	690
XKGKL-6-2500 10		10%	0.1390	25.00	866	11.0	1500	980	1230	770
XKGKL-6-2500-12		12%	0.1660	20.83	1039	12.5	1610	940	1510	854
XKGKL-6-3000-5	3000	5%	0.0580	60.00	520	8.1	1500	800	1230	538
XKGKL-6-3000-8		8%	0.0920	37.50	831	10.8	1530	900	1430	740
XKGKL-6-3000-10		10%	0.1150	30.00	1039	12.5	1580	950	1480	850
XKGKL-6-3000 12		12%	0.1390	25.00	1247	15.1	1670	930	1480	940
XKGKL-6-3500-5	3500	5%	0.0494	70.00	606	9.6	1570	750	1380	780
XKGKL-6-3500-8		8%	0.0791	43.75	970	12.3	1570	880	1380	960
XKGKL-6-3500-10		10%	0.0990	35.00	1212	14.2	1620	960	1440	1052
XKGKL-6-3500-12		12%	0.1190	29.17	1455	15.6	1670	980	1490	1323
XKGKL-6-4000-5	4000	5%	0.0433	80.00	693	10.1	1620	760	1430	825
XKGKL-6-4000-8		8%	0.0693	50.00	1109	13.2	1660	880	1480	946
XKGKL-6-4000-10		10%	0.0866	40.00	1386	15.7	1670	980	1480	1125
XKGKL-6-4000-12		12%	0.1040	33.33	1663	17.9	1760	950	1480	1204

10kV series

XKGKL-10-800-5	800	5%	0.361	16.00	230.9	4.6	1270	770	1170	350	side by side
XKGKL-10-800-8		8%	0.577	10.00	369.5	5.7	1380	840	1280	420
XKGKL-10-800-10		10%	0.722	8.00	461.9	6.5	1480	890	1380	490
XKGKL-10-800-12		12%	0.866	6.67	554.3	7.7	1530	940	1430	547
XKGKL-10-1000-5	1000	5%	0.289	20.00	288.7	6.0	1330	710	1240	370
XKGKL-10-1000-8		8%	0.462	12.50	461.9	7.2	1480	820	1380	530
XKGKL-10-1000-10		10%	0.577	10.00	577.4	8.7	1670	760	1480	580
XKGKL-10-1000-12		12%	0.693	8.33	692.8	9.8	1670	820	1480	630
XKGKL-10-1500-5	1500	5%	0.192	30.00	433.0	8.1	1380	730	1200	477
XKGKL-10-1500 8		8%	0.308	18.75	692.8	9.4	1590	780	1320	662
XKGKL-10-1500-10		10%	0.385	15.00	866.1	11.3	1590	850	1330	718
XKGKL-10-1500-12		12%	0.462	12.50	1039.3	12.8	1700	880	1430	857
XKGKIA0-2000/5	2000	5%	0.144	40.00	577.4	9.1	1710	600	1580	544
XKGKL-10-2000-8		8%	0.231	25.00	923.8	11.6	1770	700	1590	746
XKGKL-10-2000-10		10%	0.289	20.00	1154.7	13.5	1870	730	1680	778
XKGKL-10-2000-12		12%	0.346	16.67	1385.7	14.9	1860	800	1680	1000
XKGKL-10-2500-5	2500	5%	0.115	50.00	721.7	10.2	1544	790	1280	678
XKGKL-10-2500-8		8%	0.185	31.25	1154.7	13.7	1600	960	1330	946
XKGKL-10-2500-10		10%	0.231	25.00	1443.4	15.3	1740	980	1480	1085
XKGKL-10-2500-12		12%	0.277	20.83	1732.1	18.1	1730	1000	1460	1200
XKGKL-10-3000-5	3000	5%	0.096	60.00	866.0	11.2	1620	830	1440	733
XKGKL-10-3000-8		8%	0.154	37.50	1386.0	15.1	1720	930	1540	975
XKGKL-10-3000-10		10%	0.192	30.00	1732.0	17.5	1750	1130	1650	1103
XKGKL-10-3000-12		12%	0.231	25.00	2079.0	19.1	1760	1030	1500	1253
XKGKL-10-3500-5	3500	5%	0.082	70.00	1010.0	12.7	1700	800	1440	980
XKGKL-10-3500-8		8%	0.132	43.75	1617.0	15.7	1820	880	1710	1322
XKGKL-10-3500-10		10%	0.165	35.00	2021.0	18.9	1820	950	1710	1500
XKGKL-10-3500-12		12%	0.198	29.17	2425.0	20.1	1820	1020	1710	1700
XKGKL-10-4000-5	4000	5%	0.072	80.00	1155.0	12.1	1750	800	1640	1058
XKGKL-10-4000 8		8%	0.115	50.00	1848.0	17.8	1880	880	1700	1461
XKGKL-10-4000-10		10%	0.144	40.00	2309.0	20.7	1970	880	1700	1687
XKGKL-10-4000-12		12%	0.173	33.33	2771.0	22.6	2010	930	1740	1833

35kV series

XKGKL-35-200-4	200	4%	4.042	5.00	161	3.8	1590	600	1130	340	side by side
XKGKL-35-200-5		5%	5.052	4.00	202	4.7	1640	630	1180	410
XKGKL-35-200-6		6%	6.062	3.33	242	5.2	1700	630	1180	480
XKGKL-35-200-8		8%	8.083	2.50	323	6.3	1760	650	1570	560
XKGKL-35-400-5	400	5%	2.256	8.00	404	6.7	1780	730	1330	670
XKGKL-35-400 8		8%	4.042	5.00	646	8.4	1700	690	1510	880
XKGKL-35-400-10		10%	5.052	4.00	808	9.6	2000	680	1810	970
XKGKL-35-400 12		12%	6.062	3.33	970	10.7	2000	730	1810	1050
XKGKL-35-600-5	600	5%	1.684	12.00	606	8.2	1680	650	1550	850
XKGKL-35-600-8		8%	2.694	7.50	970	10.5	1980	700	1790	1120
XKGKL-35-600-10		10%	3.368	6.00	1212	12.9	1980	780	1790	1340
XKGKL-35-600-12		12%	4.042	5.00	1454	13.8	2030	800	1840	1520
XKGKL-35-800-5	800	5%	1.263	16.00	808	9.4	1800	650	1600	980
XKGKL-35-800-8		8%	2.021	10.00	1293	13.3	2100	650	1920	1420
XKGKL-35-800-10		10%	2.526	8.00	1616	14.9	2100	830	1920	1650
XKGKL-35-800-12		12%	3.031	6.67	1939	16.5	2100	760	1920	1720
XKGKL-35-1000-5	1000	5%	1.010	20.00	1010	10.2	1670	700	1540	1270
XKGKL-35-1000 8		8%	1.617	12.50	1616	14.2	1870	800	1680	1620
XKGKL-35-1000-10		10%	2.021	10.00	2020	16.9	1940	800	1750	1740
XKGKL-35-1000 12		12%	2.425	8.33	2424	18.6	2070	880	1880	1870
XKGKL-35-1500-5	1500	5%	0.674	30.00	1515	13.8	1700	750	1510	1550
XKGKL-35-1500-8		8%	1.078	18.75	2424	17.9	1820	800	1620	1910
XKGKL-35-1500-10		10%	1.347	15.00	3031	20.7	1800	900	1600	2200
XKGKL-35-1500-12		12%	1.617	12.50	3637	23.2	2300	900	2110	2380

Part No.	Rated current A	Rated inductance mH	Inductance adjustment range	Single- phase power kvar	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	Rated current A	Rated inductance mH	Inductance adjustment range	Single- phase power kvar	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
LKGKL-10-105-1.75	105.00	1.75	±5%	6.06	700	652	550	150	side by side turn adjustment
LKGKL-10-145-1.34	145.00	1.34	±5%	8.85	710	652	550	140
LKGKL-10-154-1.28	154.00	1.28	±5%	9.54	710	662	550	160
LKGKL-10-250-0.72	250.00	0.72	±5%	14.00	740	632	550	160
LKGKL-10-95-5.08	95.00	5.08	±5%	14.40	740	622	550	170
LKGKL-10-145-3.30	145.00	3.30	±5%	21.80	750	652	600	170
LKGKL-10-153-3.06	153.00	3.06	±5%	22.50	760	632	600	170
LKGKL-10-195-2.16	195.00	2.16	±5%	25.80	760	682	600	180
LKGKL-10-95-9.95	95.00	9.95	±5%	28.21	770	672	600	180
LKGKL-10-205-2.16	205.00	2.16	±5%	28.52	770	682	600	190
LKGKL-10-79-15.43	79.00	15.43	±5%	30.25	810	732	600	200
LKGKL-10-240-1.91	240.00	1.91	±5%	34.56	920	742	600	210
LKGKL-10-130-7.04	130.00	7.04	±5%	37.38	950	652	650	230
LKGKL-10-175-5.37	175.00	5.37	±5%	51.67	1030	682	850	250
LKGKL-10-257-3.72	257.00	3.72	±5%	77.19	1040	612	850	300
LKGKL-10-95-28.20	95.00	28.20	±5%	79.96	1090	632	850	310
LKGKL-10-140-19.33	140.00	19.33	±5%	119.02	1160	642	950	350
LKGKL-10-190-13.72	190.00	13.72	±5%	155.60	1200	662	950	370
LKGKL-10-205-12.79	205.00	12.79	±5%	168.86	1320	682	1050	390
LKGKL-10-250-10.47	250.00	10.47	±5%	205.58	1350	722	1050	400
LKGKL-10-270-27.64	270.00	27.64	±5%	633.02	1550	852	1350	550
LKGKL-10-330-0.58	330.00	0.58	±5%	19.84	830	432	600	250	side by side pitch adjustment
LKGKL-10-395-0.46	395.00	0.46	±5%	22.55	880	462	600	270
LKGKL-10-450-0.42	450.00	0.42	±5%	26.72	900	492	600	290
LKGKL-10-520 34	520.00	0.34	±5%	28.88	920	552	650	300
LKGKL-10-540-0.35	540.00	0.35	±5%	32.06	1040	562	800	300
LKGKL-10-380-1.15	380.00	1.15	±5%	52.17	1090	542	800	320
LKGKL-10-530-0.88	530.00	0.88	±5%	77.66	1050	552	800	330
LKGKL-10-400-2.33	400.00	2.33	±5%	117.12	1150	602	900	360
LKGKL-10-540-1.72	540.00	1.72	±5%	157.57	1260	642	1000	380
LKGKL-10-540-1.80	540.00	1.80	±5%	164.90	1300	622	1050	400
LKGKL-10-390-6.58	390.00	6.58	±5%	314.42	1420	652	1150	470

35kV series

Part No.	Rated current A	Rated inductance mH	Inductance adjustment range	Single- phase power kvar	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	Rated current A	Rated inductance mH	Inductance adjustment range	Single- phase power kvar	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
LKGKL-35-44-16.43	44.00	16.43	±5%	9.99	680	802	500	80	side by side turn adjustment
LKGKL-35-80-8.55	80.00	8.55	±5%	17.19	730	672	550	120
LKGKL-35-130-3.26	130.00	3.26	±5%	17.31	730	652	550	120
LKGKL-35-75-21.10	75.00	21.10	±5%	37.29	760	652	550	140
LKGKL-35-130-7.45	130.00	7.45	±5%	39.55	780	662	550	150
LKGKL-35-90-18.80	90.00	18.80	±5%	47.84	810	912	600	170
LKGKL-35-44-79.5	44.00	79.50	±5%	48.35	1040	1102	850	170
LKGKL-35-78-44.00	78.00	44.00	±5%	84.10	1020	1052	850	230
LKGKL-35-170-9.63	170.00	9.63	±5%	87.43	1010	1052	850	240
LKGKL-35-95-34.66	95.00	34.66	±5%	98.27	1010	1072	850	270
LKGKL-35-85-57.18	85.00	57.18	±5%	129.79	1030	1302	850	300
LKGKL-35-100-48.14	100.00	48.14	±5%	151.24	1120	1012	900	310
LKGKL-35-200-16.25	200.00	16.25	±5%	204.20	1180	1212	900	330
LKGKL-35-170-27.11	170.00	27.11	±5%	246.14	1200	942	950	350
LKGKL-35-245-13.53	245.00	13.53	±5%	255.14	1220	852	950	350
LKGKL-35-78-135.30	78.00	135.30	±5%	258.60	1280	1552	1450	400
LKGKL-35-270-13.20	270.00	13.20	±5%	302.31	1350	1152	1300	420
LKGKL-35-95-106.90	95.00	106.90	±5%	303.09	1370	1552	1150	420
LKGKL-35-114-87.82	114.00	87.82	±5%	358.55	1370	1352	1100	450
LKGKL-35-250-18.47	250.00	18.47	±5%	362.66	1380	1362	1100	460
LKGKL-35-120-82.22	120.00	82.22	±5%	371.95	1400	1382	1150	520
LKGKL-35-125-81.48	125.00	81.48	±5%	399.96	1410	1352	1150	530
LKGKL-35-130-84.50	130.00	84.50	±5%	448.63	1450	1362	1250	570
LKGKL-35-68-363.90	68.00	363.90	±5%	528.63	1430	1952	1500	600
LKGKL-35-70-392.40	70.00	392.40	±5%	604.05	1460	1302	1500	680
LKGKL-35-90-260.10	90.00	260.10	±5%	661.87	1420	1502	1350	750
LKGKL-35-220-45.84	220.00	45.54	±5%	692.45	1450	1742	1150	860
LKGKL-35-100-249.60	100.00	249.60	±5%	784.14	1590	2052	1150	900
LKGKL-35-130-166.00	130.00	166.00	±5%	881.34	1780	1602	1500	1050
LKGKL-35-125-217.20	125.00	217.20	±5%	1066.18	1780	1522	1600	1200
LKGKL-35-175-123.80	175.00	123.80	±5%	1191.09	1740	1502	1450	1420
LKGKL-35-170-149.10	170.00	149.10	±5%	1353.71	1850	1652	1350	1640
LKGKL-35-200-137.20	200.00	137.20	±5%	1724.10	1890	1882	1500	2150
LKGKL-35-260-97.74	260.00	97.74	±5%	2075.72	2050	1922	1750	2640
LKGKL-35-395-1.55	395	1.55	±5%	75.98	1160	592	850	250	side by side pitch adjustment
LKGKL-35-480-1.37	480	1.37	±5%	99.16	1150	612	850	270
LKGKL-35-340-4.06	340	4.06	±5%	147.45	1180	582	850	300
LKGKL-35-480-3.38	480	3.38	±5%	244.65	1200	652	950	380
LKGKL-35-350-8.61	350	8.61	±5%	331.35	1210	702	950	450
LKGKL-35-400-7.87	400	7.87	±5%	395.59	1250	712	950	550
LKGKL-35-300-15.71	300	15.71	±5%	•444.	1550	652	1200	590
LKGKL-35-450-7.17	450	7.17	±5%	456.14	1560	662	1200	620
LKGKL-35-350-13.90	350	13.9	±5%	534.93	1570	692	1200	650
LKGKL-35-550-6 28	550	6.28	±5%	596.81	1550	662	1200	720
LKGKL-35-740-3 92	740	3.92	±5%	674.37	1620	652	1300	780
LKGKL-35-500-8 61	500	8.61	±5%	676.23	1660	642	1300	880
LKGKL-35-300-27.78	300	27.78	±5%	785.46	1670	662	1400	920
LKGKL-35-750-4.48	750	4.48	±5%	791.68	1680	652	1400	950
LKGKL-35-520-8.27	520	8.27	±5%	702.52	1700	642	1400	860
LKGKL-35-300-29.92	300	29.92	±5%	845.97	1730	662	1400	960
LKGKL-35-1000-2.76	1000	2.76	±5%	867.08	1750	704	1450	980
LKGKL-35-550-9.34	550	9.34	±5%	887.61	1760	852	1450	1050
LKGKL-35-297-33.99	297	33.99	±5%	941.92	1770	852	1500	1080
LKGKL-35-950-3.67	950	3.67	±5%	1040.55	1800	864	1500	1160
LKGKL-35-390-22.88	390	22.88	±5%	1093.29	1790	862	1500	1240
LKGKL-35-355-28.94	355	28.94	±5%	1145.79	1780	852	1450	1350
LKGKL-35-1200-2.72	1200	2.72	±5%	1230.5	1800	864	1550	1450
LKGKL-35-950-4.52	950	4.52	±5%	1281.55	1850	852	1550	1480
LKGKL-35-400-25.57	400	25.57	±5%	1285.29	1880	804	1650	1530
LKGKL-35-1350-2.41	1350	2.41	±5%	1379.86	1820	854	1650	1600
LKGKL-35-900-5.60	900	5.6	±5%	1425.03	1790	852	1500	1570
LKGKL-35-480-20.78	480	20.78	±5%	1504.1	1810	762	1550	1590
LKGKL-35-600-14.70	600	14.7	±5%	1662.53	1820	834	1550	1820
LKGKL-35-980-5.63	980	5.63	±5%	1698.67	1870	864	1550	1850
LKGKL-35-650-14.96	650	14.96	±5%	1985.67	1970	854	1650	1980
LKGKL-35-700-14.67	700	14.67	±5%	2258.27	2130	904	1750	2490
LKGKL-35-300-80.89	300	80.89	±5%	2287.11	2150	1454	1850	2670
LKGKL-35-940-9.09	940	9.09	±5%	2523.30	2170	1544	1950	2690	side by side pitch adjustment
LKGKL-35-350-73.88	350	73.88	±5%	2843.23	2140	1054	2150	2720
LKGKL-35-1110-7.51	1110	7.51	±5%	2906.94	2160	1284	2200	2760
LKGKL-35-990-9.82	990	9.82	±5%	3023.65	2170	1564	1950	2740
LKGKL-35-390-58.18	390	58.18	±5%	2780.05	2160	1204	1600	2770
LKGKL-35-490-50.82	490	50.82	±5%	3833.33	2080	1304	1750	2960
LKGKL-35-1300-7.36	1300	7.36	±5%	3907.64	2020	1354	1760	3120
LKGKL-35-500-50.29	500	50.29	±5%	3949.76	2100	1354	1750	3600
LKGKL-35-590-42.04	590	42.04	±5%	4597.44	2080	1434	1750	3700
LKGKL-35-700-32.76	700	32.76	±5%	5043.01	2100	1554	1800	4060
LKGKL-35-800-31.53	800	31.53	±5%	6339.48	2250	1364	2000	4100
LKGKL-35-950-24.06	950	24.06	±5%	6821.70	2310	1064	2150	4200
LKGKL-35-980-25.67	980	26.67	±5%	8046.83	2360	1114	2150	4450
LKGKL-35-1150-23.14	1150	23.14	±5%	9614.10	2490	1104	2200	5070

66kV series

Part No.	Rated current A	Rated inductance mH	Inductance adjustment range	Single- phase power kvar	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	Rated current A	Rated inductance mH	Inductance adjustment range	Single- phase power kvar	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
LKK-66-450-6.24	450	6.24	±5%	396.97	1190	702	850	710	side by side pitch adjustment
LKK-66-450-12.23	450	12.23	±5%	778.04	1550	750	1300	1010
LKK-66-300-64.28	300	64.28	±5%	1817.47	1690	852	1450	1720
LKK-66-680-8.17	680	8.17	±5%	1186.83	1600	752	1350	1340
LKK-66-850-6.58	850	6.58	±5%	1493.53	1750	752	1500	1620
LKK-66-600-13.93	600	13.93	±5%	1575.44	1700	802	1450	1600
LKK-66-750-25.71	750	25.71	±5%	4543.33	2280	1004	2000	3300
LKK-66-595-83.33	595	83.33	±5%	9267.97	2580	1274	1250	4784
LKK-66-700-69.45	700	69.45	±5%	10690.99	2540	1274	2280	5430

Part No.	Shunt capacitor bank		Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75C kW	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	Rated power kvar	Rated voltage kV	Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75C kW	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
CKGKL-3.3/10-1	1000	10.5/√3	55.0	1%	1.09	5.50	3.3	0.31	490	682	330	80	side by side
CKGKL-16.7/10-5		11/√3	52.5	5%	6.06	1.05	16.7	1.03	700	852	600	180
CKGKL-40/10-12		12/√3	48.1	12%	17.29	0.40	40.0	1.99	850	1252	650	250
CKGKL-6.7/10-1	2000	10.5/√3	110.0	1%	0.55	11.0o	6.7	0.52	490	812	330	90
CKGKL-33.3/10-5		11/√3	105.0	5%	3.02	2.10	33.3	1.73	730	732	550	200
CKGKL-80/10-12		12/√3	96.2	12%	8.64	0.80	80.0	3.34	830	1132	650	320
CKGKL-8/10-1	2400	10.5/√3	132.0	1%	0.46	13.20	8.0	0.59	550	652	500	100
CKGKL-40/10-5		11/√3	126.0	5%	2.52	2.52	40.0	1.99	800	732	600	210
CKGKL-96/10-12		12/√3	115.5	12%	7.20	0.96	96.0	3.83	870	952	600	330
CKGKL-10/10-1	3000	10.5/√3	166.6	1%	0.36	16.50	10.0	0.70	620	702	500	110
CKGKL-50/10-5		11/√3	156.3	5%	2.05	3.15	50.0	2.35	820	752	650	250
CKGKL-120/10-12		12/√3	144.3	12%	5.76	1.20	120.0	44.00	880	992	600	410
CKGKL-12/10-1	3600	10.5/√3	198.0	1%	0.31	19.80	12.0	0.81	670	582	500	120
CKGKL-60/10-5		11/√3	189.0	5%	1.68	3.78	60.0	2.69	820	722	550	270
CKGKL-144/10-12		12/√3	173.2	12%	4.80	44.00	144.0	3.95	880	1052	600	440
CKGKL-13.3/10-1	4000	10.5/√3	220.0	1%	0.27	22.0o	13.3	0.87	680	592	500	130
CKGKL-66.7/10-5		11/√3	210.0	5%	1.51	4.20	66.7	2.92	860	902	700	310
CKGKL-160/10-12		12/√3	192.5	12%	4.32	1.60	160.0	4.27	890	1002	600	470
CKGKL-16/10-1	4800	10.5/√3	264.0	1%	0.23	26.40	16.0	1.00	680	592	550	130
CKGKL-80/10-5		11/√3	252.0	5%	1.26	5.04	80.0	3.34	820	852	550	330
CKGKL-192/10-12		12/√3	231.0	12%	3.60	1.92	192.0	4.90	930	1672	550	530
CKGKL-16.7/10-1	5000	10.5/√3	275.0	1%	0.22	27.50	16.7	1.03	700	602	550	140
CKGKL-83.3/10-5		11/√3	262.4	5%	1.21	5.25	83.3	3.45	820	952	650	350
CKGKL-200/10-12		12/√3	240.6	12%	3.45	2.00	200.0	5.05	1120	782	800	490
CKGKL-20/10-1	6000	10.5/√3	330.0	1%	0.18	33.00	20.0	1.18	720	602	550	150
CKGKL-100/10-5		11/√3	315.0	5%	1.01	6.30	100.0	3.00	970	732	600	360
CKGKL-240/10-12		12/√3	288.7	12%	2.88	2.•40	240.0	5.79	1130	1082	900	580
CKGKL-23.3/10-1	7000	10.5/√3	385.0	1%	0.16	38.50	23.3	1.33	720	632	550	170
CKGKL-116.7/10-5		11/√3	367.4	5%	0.86	7.35	116.7	3.37	980	752	700	370
CKGKL-280/10-12		12/√3	336.8	12%	2.47	2.83	280.0	6.50	1150	1092	750	600
CKGKL-26.7/10-1	8000	10.5/√3	439.9	1%	14.00	44.00	26.7	1.47	730	652	550	170
CKGKL-133.3/10-5		11/√3	420.0	5%	0.76	8.40	133.3	3.73	910	852	650	410
CKGKL-320/10-12		12/√3	384.9	12%	2.16	3.21	320.0	7.19	1290	1002	750	620
CKGKL-30/10-1	9000	10.5/√3	494.9	1%	0.12	49.49	30.0	1.60	730	652	550	190
CKGKL-150/10-5		11/√3	472.4	5%	0.67	9.45	150.0	4.07	930	852	650	430
CKGKL-360/10-12		12/√3	433.0	12%	1.92	3.61	360.0	7.85	1250	1002	650	660
CKGKL-33.3/10-1	10000	10.5/√3	549.9	1%	0.11	54.99	33.3	1.73	730	652	550	210
CKGKL-166.7/10-5		11/√3	524.9	5%	0.61	10.50	166.7	4.41	1010	882	710	470
CKGKL-400/10-12		12/√3	481.1	12%	1.73	4.00	400.0	8.50	1240	982	990	730

20kV series

Part No.	Shunt capacitor bank		Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75C kW	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
Part No.	Rated power kvar	Rated voltage kV	Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75C kW	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg	Suggested arrangement mode
CKGKL-13.3/20-1	4000	21/√3	110.0	1%	1.10	11.00	13.3	0.87	680	732	600	160	side by side
CKGKH6.7/20-5		22/√3	105.0	5%	6.05	2.10	66.7	2.92	1100	985	800	260
CKGKL-160/20-12		24/√3	96.2	12%	17.29	0.80	160.0	4.27	1200	1432	800	430
CKGKL-20/20-1	6000	21/√3	165.0	1%	0.73	16.50	20.0	1.18	700	732	550	170
CKGKL-100/20-5		22/√3	157.5	5%	4.03	3.15	100.0	3.00	980	972	650	280
CKGKL-240/20-12		24/√3	144.3	12%	11.53	1.20	240.0	5.79	1170	1302	750	480
CKGKL-26.7/20-1	8000	21/√3	219.9	1%	0.55	21.99	26.7	l.47	700	752	550	200
CKGKL-133.3/20-5		22/√3	210.0	5%	3.02	4.20	133.3	3.73	1150	862	750	350
CKGKL-320/20-12		24/√3	192.5	12%	8.64	1.60	320.0	7.19	1240	1252	850	570
CKGKL-33.3/20-1	10000	21/√3	274.9	1%	44.00	27.49	33.3	1.73	730	752	550	230
CKGKL-166.7/20-5		22/√3	262.4	5%	2.42	5.25	166.7	4.41	1180	832	700	430
CKGKL-400/20-12		24/√3	240.6	12%	6.91	2.00	400.0	8.50	1220	1242	750	630
CKGKL-40/20-1	12000	21/√3	329.9	1%	0.37	32.99	40.0	1.99	750	732	550	240
CKGKL-200/20-5		22/√3	314.9	5%	2.02	6.30	200.0	5.05	1200	812	750	450
CKGKL-480/20-12		24/√3	288.7	12%	5.76	2.40	480.0	9.74	1310	1252	800	790

35kV series

Part No.	Shunt capacitor bank		Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75C kW	Overall dimension		Pitch diameter Dc mm	Weight (per phase) kg		Suggested arrangement mode
Part No.	Rated power kvar	Rated voltage kV	Rated current A	Rated reactance rate	Rated reactance Ω	Short- time current kA	Single- phase power kvar	Single- phase loss75C kW	Ds mm	H mm	Pitch diameter Dc mm	Weight (per phase) kg		Suggested arrangement mode
CKGKL-13.3/35-1	4000	22	60.6	1%	3.63	6.06	13.3	0.87	750	822	650		180	side by side
CKGKL-66.7/35-5		22	60.6	5%	18.15	1.21	67.0	2.93	1160	1002	850		290
CKGKL-160/35-12		24	55.6	12%	51.80	0.46	160.0	4.27	1260	1622	950		460
CKGKL-20/35-1	6000	22	90.9	1%	2.42	9.09	20.0	1.18	780	802	600		210
CKGKL-100/35-5		22	90.9	5%	12.10	1.82	100.0	3.00	1030	1002	750		330
CKGKL-240/35-12		24	83.3	12%	34.57	0.69	240.0	5.79	1230	1502	850		570
CKGKL-26.7/35-1	8000	22	121.2	1%	1.82	12.12	26.7	1.47	820	812	600		230
CKGKL-133.3/35-5		22	121.2	5%	9.08	2.42	133.3	3.73	1200	882	750		390
CKGKL-320/35-12		24	111.1	12%	25.92	0.93	320.0	7.19	1300	1352	850		650
CKGKL-33.3/35-1	10000	22	151.5	1%	1.45	15.15	33.3	1.73	820	832	600		240
CKGKL-166.7/35-5		22	151.5	5%	7.26	3.03	166.7	4.41	1230	852	950		470
CKGKL-400/35-12		24	138.9	12%	20.73	1.16	400.0	8.50	1270	1352	750		760
CKGKL-40/35-1	12000	22	181.8	1%	1.21	18.18	40.0	1.99	830	812	600		250
CKGKL-200/35-5		22	181.8	5%	6.05	3.64	200.0	5.05	1240	822	950		490
CKGKL-480/35-12		24	166.7	12%	17.28	1.39	480.0	9.74	1340	1272	1050		850
CKGKL-333.3/35-5	20000	22	303.0	5%	3.63	6.06	333.3	7.41	1370	1062	850		660
CKGKL-800/35-12	20000	24	277.8	12%	10.37	2.31	800.0	10.53	1490	1582	1210		1200
CKGKL-666.7/35-5	40000	22	606.2	5%	1.81	12.12	666.7	9.18	1580	1022	1280		950
CKGKL-1600/35-12	40000	24	555.6	12%	5.18	4.63	1600.0	17.71	1800	1354	1500		1760
CKGKL-1000/35-5	60000	22	909.2	5%	1.21	18.18	1000.0	12.45	1630	1254	1320		1350
CKGKL-2400/35-12	60000	24	833.3	12%	3.46	6.94	2400.0	24.00	1950	1404	1640		2150
CKGKL-1333.3/35-5	80000	22	1212.3	5%	0.91	24.25	1333.3	15.45	1750	1554	1450		1520
CKGKL-3200/35-12	80000	24	1111.1	12%	2.59	9.26	3200.0	29.78	2150	1674	1750		2480

>> China Acetic 100% RTV Glass General Purpose Universal Adhesive 300ml Weatherproof Fast Cured Acid Window Door Acetoxy Silicone Sealant Adhesive
>> 6-seat sightseeing car, electric golf carts
>> T-Grid & Suspension System/Suspended Ceiling T-Grid/Water &Fire Resistan T-Grid for Gypsum
>> Heavy Duty Truck Coolant Temperature Sensor Auto Parts Wholesale
>> Android PDA Handheld Animal Scanner with Bluetooth WiFi Camera GPS
>> Stpp sodium tripolyphosphate for water retaining with low price
>> CP-E 24/1.25 ABB Rail type switching power supply
>> High-Efficiency Multi Purpose Combination Machine (KY450A/KY700A)
>> High Performance Square Plansifter for Flour Mill Models Fsfg8*740/730/640
>> 100% Water Soluble Hi-Pure Fa-80-P Fulvic Acid
>> 100% Eco-friendly PETG Eco-friendly Material NFC Access Control Card RFID Card
>> 1000lbs Heavy Duty Boat Winch, Hand Gear Pulley Winch Without Cable (41011000)
>> Color box design customized digital products Color box customized tools Color box customized
>> Hot Selling Mini Excavator Flexible in Narrow Space
>> an-31 High Quality Multifunctional Model Dual Color T-Shaped Switch Button
>> Poppuck Fidget Decompression Toy Series Elastic Pop up Magnet Toys Colorful Decompression Fidget Toys for Adults Kids Gifts
>> Hot Fix Rhinestone Shoe Upper Accessories
>> 3000*1500mm High Pressure CNC Watejet Cutter Machine
>> Fruit shapes strawberry watermelon chewy gummy candy
>> Wooden Ring Toss Game Set Fun Quoits Game
