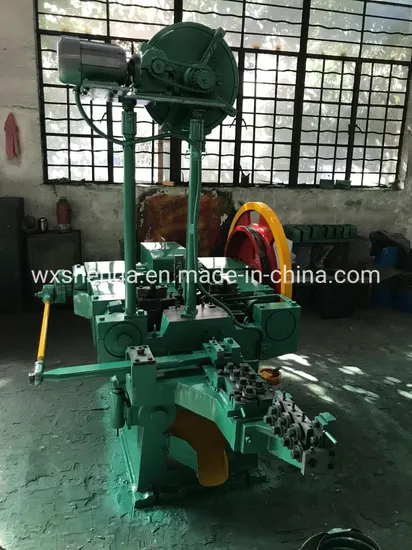

High Speed Twist Roofing Nail Making Machine

Product Description

Product Description
The nail making machine used for producing vaious normal nails and special nails. And the assortment of our products is complete. It has wide applications, simple operation and reliable running. We can supply various machine fitting and necessay fine auxiliaris to you.

parameter	unit	WZ94-4C
Dia of nail max	mm	4.5
Dia of nail min	mm	2.38
Length of nail max	mm	100
Length of nail min	mm	50
Dsigned output	pcs/min	130
Moter power	kw	4
Speed	pcs/min	960
Weight(approx)	kg	2100
Overall dimensions	mm	2436X1512X1710

Roofing nail making machine for nail cap making

Name	Roofing nail cap making machine
Productivity	390pcs/min
Machine power	5.5kw
Roofing nail cap diameter	18mm/20mm
roofing nail cap thickness	0.8-1.2mm
Machine weight	2300kg
Machine diamension	1350*1050*2200mm

Roofing nail galvanized machine

Model	BGD50-2(semi-automatic)	BGD80-6(automatic)
load of roller(kg)	100kg	480kg
Time control(min)	0-120min	0-120min
Roller Speed(r/min)	7-9(r/min)	7-9(r/min)
Machine power	4kw	8.5kw
Machine weight	1100kg	5000kg

Packaging & Delivery
Packaging Details: Plywood box
Delivery Detail: 15 days after prepaid
Company information
Your concern is our concern!Your request is our request!Your value is our value! 1. 26years experience in nail &wire machinery manufacture ,strictly cover all requirements for customer. 2. offer ultimate customization and personalized solutions 3. factory lay-out and Installation support 4. Engineer available for machine adjusting and testing abroad.
