sediment sampler description

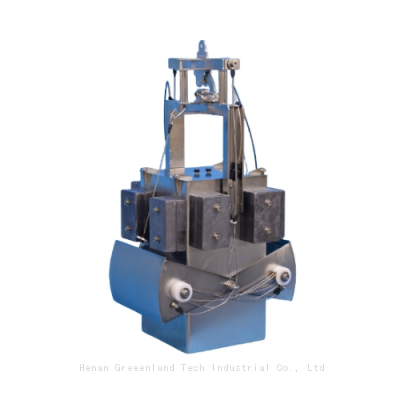

The Ekman bottom corer is based on the Ekman design. The sediment sampler is made of AISI 316 stainless steel.
To be deployed by means of a cord, recommended diameter 5 mm. Comes with a loading tool and a drop messenger for closing the grab.
By adding the 12.006 pole (length 2 + 2 m) the grab can be inserted manually into the sediment and closed by pulling the line.
sediment sampler specification
Ordering No.
| 12.000
| 12.002 - 400 cm² sample area
|
Sample volume
| 5 L
|
|
Sample area
| 225 cm²
| 400 cm²
|
Drop messenger, brass
| 500 g
| None (not necessary)
|
Height, loaded
| 45 cm
| 65 cm
|
Weight
| 5,6 kg
| 18 kg
|
Extra weights
| None
| 4 x 2 kg or 8 x 2 kg (total weight of corer: 26 or 34 kg)
|
Spare parts
|
|
|
Drop messenger, brass,
Ø3,2 x 9 cm, 500 gr
| Ordering no. 12.001
|
|
Spring for model 12.000 only, requires 2 pcs
| Ordering no. 12.003
|
|
>>
