Wt-HS High Speed Film Blowing Machine

Product Description

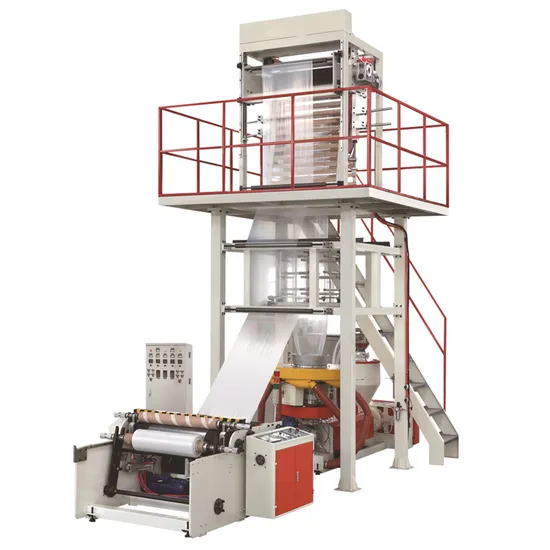

WT-HS High Speed Film Blowing Machine
Introduction:
This machine group is designed to absorb the advanced products of similar products at home and abroad. It adopts advanced technology such as hierarchical 360 ° die continuous rotating device, efficient cooling double air duct, double cross section double surface grinding machine equipment. The main group can produce LDPE, LLDPE, HDPE, and other raw materials for the composite film. With a good barrier, moisture, frost, oil, it can be widely used in light and heavy packaging, such as all kinds of fresh fruit, meat, fresh milk, liquid beverages and so on.
Technical Specifications:

Model	WT-HS-700	WT-HS-900	WT-HS-1100	WT-HS-1300
Applicable Materials	HDPE/LDPE/LLDPE
Width of Film	300-600	400-800	500-1000	600-1200
Thickness of Film	0.08-0.10	0.008-0.10	0.01-0.10	0.01-0.10
Max. Extrusion Output	HDPE:60kg/h	HDPE:80kg/h	HDPE:100kg/h	HDPE:120kg/h
	LDPE:80kg/h	LDPE:100kg/h	LDPE:120kg/h	LDPE:140kg/h
Extruder
Screw Diameter	Φ50	Φ55	Φ60	Φ65
Screw L/D Ratio	30:1
Screw material	SAC-645/38CRMOALA
Material of the delivery barrel	SAC-645/38CRMOALA
Cooling of the delivery barrel	180w*3	180w*3	180w*4	180w*4
Power of the main motor	18.5kw	22kw	30kw	37kw
Temperature control point	3	3	3	4
Screen changer
Screen changing mode	Manual screen changing
Temperature control point	1	1	1	1
Die head
Die diameter	HDPE:Φ80mm	HDPE:Φ100mm	HDPE:Φ120mm	HDPE:Φ150mm
	LDPE:Φ150mm	LDPE:Φ170mm	LDPE:Φ220mm	LDPE:Φ280mm
Cooling air ring type	Double vents air ring
Air feeder type	Air supply by the variable frequency motor
Power of the air feeder	3kw	4kw	5.5kw	7.5kw
Take-up unit
Width of the take-up roller	700	900	1100	1300
Take-up speed	10-90
Power of the take-up motor	1.1kw	1.5kw	1.5kw	1.5kw
Stabilizing ring	1UNIT
Wind-up device
Wind-up type	Back-to-back automatic wind-up (single winding)
Effective width	600	800	1000	1200
Maximum winding diameter	800
Wind-up roller	Φ300×700L	Φ300×900L	Φ300×1100L	Φ300×1300L
Pneumatic winding shaft	2SETS
Floor size	5.5×2.1×5.5	6.0×2.3×6.0	6.3×2.6×6.5	6.6×2.8×6.8
Average power consumption	18kw/h	20kw/h	24kw/h	28kw/h
Device to be purchased	Surface treating machine, knurling rolls, quick screen changing and back-to-back automatic wind-up (double-winding)

The data is subject to change without prior notice.
Q1. What is your terms of packing?
A: The normal package is making a pallet to protect the machine at the bottom and wrap the whole machine with plastic film packing. If export to EUROPEAN countries, the wooden box will be fumigated. we use PE film for packing or pack it according to customers special request.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
