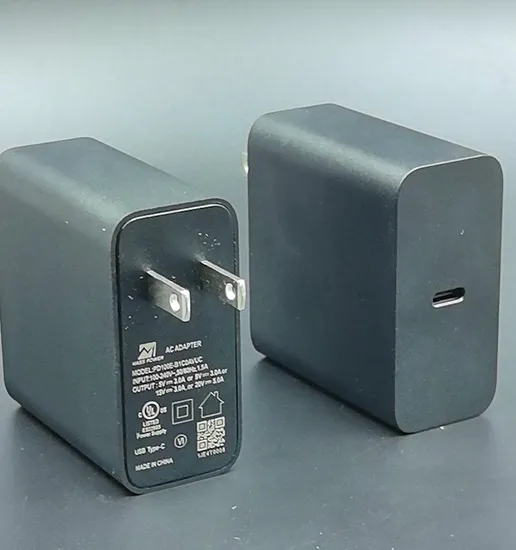

100W Pd Charger, USB-C Wall Charger

Product Description

Detailed Photos
Product Description DESCRIPTION : WALL MOUNT
1, INPUT VOLTAGE RANGE

MIN.	NORMAL	MAX.
90VAC	100-240VAC	264VAC

INPUT FREQUENCY RANGE

MIN.	MORMAL	MAX.
47Hz	50/60Hz	63Hz

2, OUTPUT CHARACTERISTIC
STATIC LOAD

Output Voltage	Total Regulation	Load Range
5V	4.75-5.25V	3A
9V	8.55-9.45V	3A
15V	14.25-15.75V	3A
20V	19.00-21.00V	5A

3, OUTLINE DRAWING Notes: 1). Physical size: 63.00±1.0mm(L)*61.50±1.0mm(W)* 30.00±1.0mm(H) 2). Unit: mm 3). Material: PC945, UL94V-0 4). Color: BLACK 5). AC Input Plug: US 4, NAMEPLATE
Notes: Unit: mm 1.Laser The QR code's number have nine digits,For Example:123456789 Number 1 to 2, means laser mechine No.:per code 1~9, A~Z(no include I,O) Number 3, means Year, 1~9,A~Z(no include I,O), for example "9" for 2019,"A" for 2020 Number 4, means Month,1~9 for Jan to Sep, "A" for Oct, "B" for Nov, "C" for Dec Number 5, means Date,1~9,A~X(no include I,O),for example "A5G" for 2020/05/16 Number 6 to 9, means serial number: 1~9, A~Z(no include I,O) QR code size:7mm*7mm,type:QR Code Digit Size:0.9mm(H)(±0.5mm) The distance from QR code size to the digit size:0.5-1mm 5,ENVIRONMENTAL COMPLIANCE RoHS Meet 2011/65/EU directive and its amendment (EU) 2015/863
PACKAGING Meet 94/62/EC directive
REACH Meet (EC) No.1907/2006 directive
WEEE (Waste Electrical and Electronic Equipment) Meet 2012/19/EU directive

---
