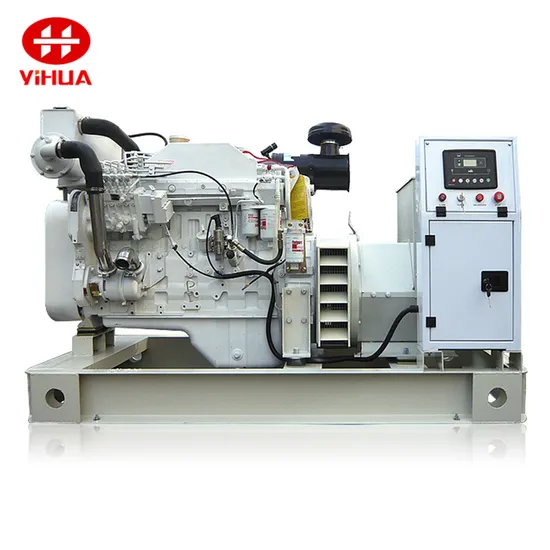

Open Type_ Yihua 15-400 kw used marine diesel generator set high quality
| Genset Type | Open Type |
| Voltage | 110/220V, 220/380V,230/400V, 440V, 480V, etc. |
| Electric System | 24V/12V |
| Frequency | 50HZ/60HZ |
| Rated Speed | 1500/1800rpm |
| Type | single phase or three phase,4wire connection |
| Cooling System | Water Cooled |
| Fuel Tank | at least 8 hours running time for full load |
| Insulation Class | Class H/F |
| Protection Class | IP21-23 |
| Wave Distort | <10% |
| Frequency at Stable State | <0.5% |
| Frequency Deviation at Instantaneous State | ≤+10% |
| Frequency Return Time | ≤3s |
| Voltage deviation at stable state | ≤±1% |
| Voltage deviation at instantaneous state | ≤+20% |
| Voltage return time | ≤4s |
| Voltage modulation | ≤0.3% |
| Other | Open/Silent/weather proof/trailer type for optional with silencer,manual and tools |
