Core Vibration Dry Cast Rcp Reinforced Concrete Pipes Making Machine

Product Description

Core Vibration Dry Cast RCP Reinforced Concrete Pipes Making Machine
Technical Parameter Working Principle: The vertical core vibration machine is through the vibration core high frequency vibration for producing reinforced concrete drainage and sewage pipes. Scope of application: The equipment is suitable for the production of DN1350-3600, length of 2M/ flat mouth, socket, soft type, steel bell type reinforced concrete drain pipe and sewage pipe. Total Power:156.81KW Cooling type: oil cooling Vibrator Rotation Speed: 0-4000RPM Vibration Strength: 300KN/274KN/210.8KN/136.8KN/100KN 5stage adjustable Equipment Configuration: the equipment includes: 2sets main frame, 2 sets main bearing base, 2sets inner mold vibrator, 2sets port pressing machine,1 sets core cooling oil lubrication system(2sets combine into 1set), 1 set hydraulic system(2sets combine into 1set), 1set rotary concrete placer,1set electric control system, 1 set assemble tools Working Efficiency

Mode	DN1350-1500MM	DN1600-2000MM	DN2200-2800MM
Efficiency(piece/h)	3-4	2.5-3.5	2-3

The above parameters are just for reference, the real speed will according to factors such as the performance of the mixing station supply by customer and conveying distance and other factors.
3.Working Flowchart

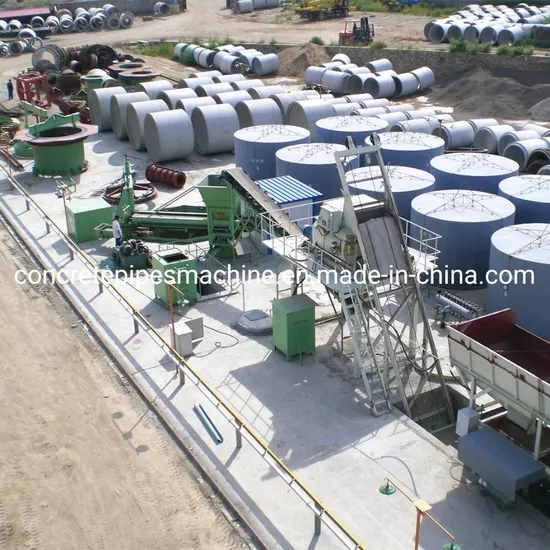

4.Core Vibration RCP Reinforced Concrete Pipe Production Line Working Site
core vibration rcp reinforce cage concrete drain jacking pipe making machine:main body
core vibration rcp reinforce cage concrete drain jacking pipe making machine:core body
core vibration rcp reinforce cage concrete drain jacking pipe making machine:bottom plate
core vibration rcp reinforce cage concrete drain jacking pipe making machine:concrete pipe mould
core vibration rcp reinforce cage concrete drain jacking pipe making machine:cage welding machine
core vibration rcp reinforce cage concrete drain jacking pipe making machine:wire cage
core vibration rcp reinforce cage concrete drain jacking pipe making machine:concrete pipe casting
core vibration rcp reinforce cage concrete drain jacking pipe making machine:final product in stock
core vibration rcp reinforce cage concrete drain jacking pipe making machine:concrete pipe in stock
core vibration rcp reinforce cage concrete drain jacking pipe making machine:concrete pipe for shipping
Our factory is a professional manufacturer of cement products complete sets equipment and molds. It has more than 40 years of experience in research and development, design and manufacture of cement products machinery and equipment. The company has strong technical strength and has a number of national patents. Our factory passed the ISO9001:2008 quality management system certification, and obtained a number of national invention patents. Our main products: DN400-4000mm PCCP Pipe Production Line Concrete Drainage Pipe Production Line Cage Welding Machine Concrete Pipe Mold In order to expand the international market, our company established SHANGHAI SINOMAC MACHINERY INDUSTRIAL CO.,LTD in Shanghai in 2015. Our company have sell more than 60sets complete PCCP pipe production line equipment to domestic and foreign market. Now our company's PCCP production line equipment has been exported to Canada, Egypt, India, Indonesia ,South America, Africa and so on.
Welcome all the customers to visit our factory and cements products production line working site.
pccp concrete pipe production line making machine:pccp pipe in stock

Name	Diameter Range	Length	Application
DN600-1600X6000MM	600 to 1600mm	6000MM	Water Transfer/Power Plant
DN1600-3600X6000MM	1600 to 3600mm	6000MM	Water Transfer/Power Plant
PCCP Concrete Pipe Production Line Types

The full completely DN600-4000mm PCCP Pipe Production Line main equipment includes: Spigot Bell Ring Roller, Bell Plate Edger, Spigot/Bell Ring Expanding Machine, Spigot/Bell Port Assemble Platform, Steel Cylinder Welding Machine, Steel Cylinder Water Pressure Testing Machine, Concrete Placer, Wire Wrapping Machine, Concrete Spraying Machine, PCCP pipe internal/External Pressure Testing Machine, Concrete Molds etc.
pccp concrete pipe production line making machine:pccp pipe mould
2.Working Flowchart
F.Φ600-3600 PCCP Pipe Mouldjacking concrete pipe production line making machine:jacking conrete pipe mould
pccp concrete pipe production line making machine:DN600x6000mm pccp pipe mold
G. PCCP Pipe Concrete Casting Machine
K. Final Products
pccp concrete pipe production line making machine:pccp pipe checking
pccp concrete pipe production line making machine:pccp pipe steel cylinder welding machine installation in Eygpt NPC National Pipe Company
pccp concrete pipe production line making machine:jacking concrete pipe mold loading into container and export to Canada
pccp concrete pipe production line making machine:jacking pipe cage welding machine export to India
Welcome to visit our factory and RCP Drain Concrete Pipe Making Machine/PCCP Pipe Production Line Working Site.

---
