Biogas Detector, H2s O2 CH4 CO2 Infrared Sensor, Biogas Analyzer

Product Description

Biogas Detector, H2S O2 CH4 CO2 Infrared sensor, Biogas analyzer Features

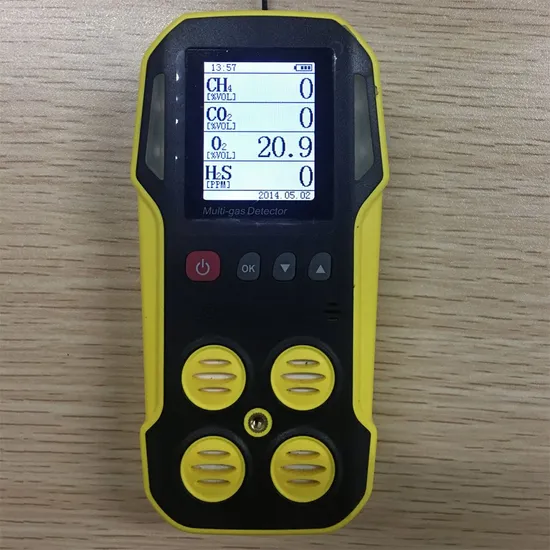

Portable Biogas detector, biogas analyzer(CH4/CO2/H2S/O2)
• Measures %CH4, CO2, Oxygen; and ppmH2S
• CH4 and CO2 accuracy ±3% after calibration
• SGX infrared(NDIR) sensor from UK for CH4 and CO2, CityTech Electro-chemical sensor from UK
• Up to 5 gases monitored
• Stores and downloads reading data
• Datalogging and profiling function (optional)
• Factory reset option
• Choice of user settings and simple gas reading function
• Certified:CE, EX
• 12 Months warranty

Applications
Portable Biogas detector, biogas analyzer(CH4/CO2/H2S/O2)
• Farm digester gas monitoring
• Food processing biogas monitoring
• Waste water biogas monitoring
• Methane recovery
• Laboratory research and analysis for biogas
Detailed description:
Portable Biogas detector, biogas analyzer(CH4/CO2/H2S/O2)
This item, portable biogas analyzer, is mainly used to detect and analyze biogas concentration, helping to check the digester process is running efficiently.
Specifications
Portable Biogas detector, biogas analyzer(CH4/CO2/H2S/O2)

Model	IRCD4
Gas Detected	Methane CH4	Carbon Dioxide CO2	Hydrogen Sulfide H2S	Oxygen O2
Detection Principle	Specilized 2 IN 1 Infrared Sensor, imported from UK, E2V; 5 Years life span		Electrochemical UK sensor, Alpha; 2 years life span	Electrochemical UK sensor, CityTech; 2 years life span
Sampling Method	Natural diffusion type
Detection Range	(0-100)%VOL	(0-100)%VOL	*(0-2000)PPM	(0.0-30.0)%VOL
Precision /Accuracy	1%VOL	1%VOL	1PPM	0.1%VOL
Operating Temperature	-25ºC~+55ºC, Short time: -40ºC~+55ºC
Chargeable Battery	PL123450, 3.7V/1500mA
Display	LCD Display with backlight
Alarm Mode	Sound & Light Alarm; Full range adjustable
Explosion-Proof	Exibd I(CMExC)
Degree of Protection	IP54
Dimensions	130x66x30 mm
Weight	250g (not including suitcase)
Standard Accessories	English User's Manual; USB charger and adapter; Calibration Cap and tube; Calibration Certificate; Hanging Cord; Protection Leather Case, Professional Briefcase

Standard accessories:
• English User's Manual
• USB cable & Adapter
• Calibration Certificate
• Cap and extension Hose
• Hanging cord
• Leather Case
• Briefcase
Optional accessories
- Gas sampling pump with filter. (sampling hose and probe.)
- Data logger software, works for Windows 10, Windows XP, Windows 7. Available to output Excel file.
- Carrying suitcase. Hard-sided carrying case with foam case insert.
Other related hotsale models as Biogas analyzer, Biogas Detector
- IRCH4: Only analyze Methane (CH4) Gas in Biogas
- IRCO2: Only analyze Carbon Dioxide (CO2) Gas in Biogas
- SAZQ: Simultaneously analyze 3 Gases (CH4, CO2, H2S)
* H2 or NH3 gas for biogas analyzer are also available
About Us
Beijing Shi'an Tech Instrument Co., Ltd is grown out of Beiijing Dashiweye Technology Co., Ltd, and it's engaged in designing and manufacturing portable gas detectors since Year 2013.
