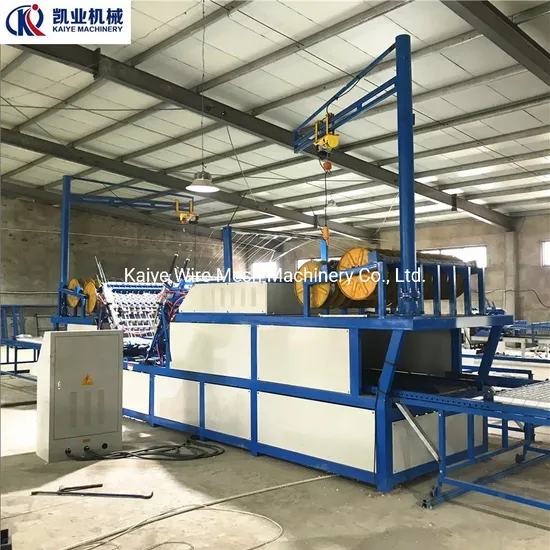

Fully Automatic 3D Panel Wire Mesh Frame Welding Machine

Product Description

Fully Automatic 3D Panel Wire Mesh Frame Welding Machine Product Application Bevel inserting combination jointing machine is the main machine on the production line, which adopts PLC touching screen controlling system, pneumatically actuated or stepping electromotor as drive, through the equipment's automatic bevel inserting and cut off, strict position jointing of the bevel inserting thread and flat mesh to realize the production of the steel wire mesh rack polystyrene sandwich panel.
This production line is of high automatic manufacturing level and productive efficiency, low jointing omitting rate, stronger and more even solder joint strength, smooth quality of products and low cost.
3D panel adopts 3D imension spatial steel wire mesh frame as the framework, antiflaming polystyrene (EPS) foam panel as heat protective core layer. External layer of the wall building material is sprayed with the pea gravel concrete or slush.

Rated electrical power				75KVA
Input voltage				AV380V 50Hz
Air source allocation				3 cubic meter/min 0.6MPa
Applicable range	Core panel thickness			50mm-100mm
	Truss wire configuration			Single or double sided wire mesh
Production standard	Standard sandwich panel		length	3000mm
			width	1220mm
	Nonstandard sandwich panel			The length according to your requirement ≤6000mm
Material characteristics	Welded wire material			2.0-3.0mm cold-drawing low-carbon steel wire
	Core panel material			Anti-flaming EPS board & XPS board
	Grid space of mesh			52mm*50mm(A-model) / 50mm*50mm(B model)
Lacking welding rate				≤5%
Welding strength				Single point≥330N
Overall dimension		length		13500mm
		width		1800mm
		height		1700mm
Weight				4000kg

Main Features 1) The Welding Machine welds the horizontal and vertical wires to form a steel wire mesh. Mesh Width: 1200mm, Grid size: 50 x 50mm or 75 x 75mm or 100 x 100mm.
2) PLC control system to automatically straightens, welds and cuts the steel wire.
3) The machine has the mechanical transmission system.
4) The Automatic Alarm Device is easy to operate and maintenance.
5) The machine makes use of the integrated pneumatic system to ensure that the operation is stable, high reliability and long life span of the equipment.
6) The horizontal steel wires use the integrated straightening and cutting system to ensure stable operation and high accuracy .
Guarantee and after-service:
1. Our technician will help you install the wire mesh machine and training your workers.

2. One year gurantee for whole machine except vulnerable parts.

3. 24 hours technical support by email. 4. Door to door service can be provided.
5. We can according to your requirements production machinery.
Inquiry now, we will reply at first time.
Contact Person: Larry Liu
Mobile/ : +86-15931130356

---
