Standard Three-Pointed Mounted Rotary Tiller of Tractor Tools

Product Description

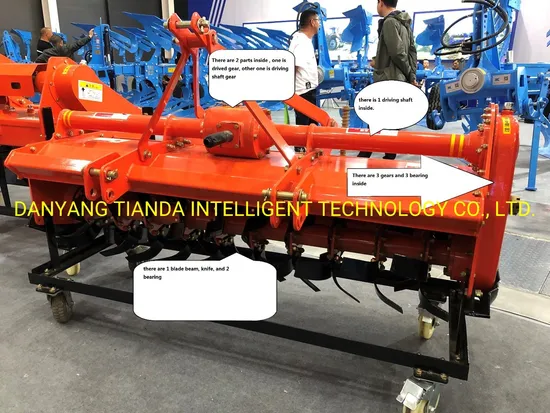

1GQN series Rotary Tiller is adopted middle gear transmission system, mounted with the tractor of 12-80HP. Tractor wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. So it can be used on dry and paddy field. It can reduce the time, laboring, and cost, etc. during operation.

Model		1GQN-100	1GQN-115	1GQN-120	1GQN-125	1GQN-140	1GQN-150	1GQN-160	1GQN-180	1GQN-200	1GQN-220	1GQN-250
(hp) Matched power		12-15	15-18	15-18	18-20	20-25	25-30	30-40	50-55	55-75	60-80	75-80
(cm) .Working width		100	115	120	125	140	150	160	180	200	220	250
(cm) Working depth		8-14							12-18
		10-16							14-20
No. of blades		18	18	22	26	30	34	38	42	46	50	58
Type of blade		IT225							IT245
(kg) Total weight		180	185	185	190	200	210	220	350	370	390	410
(mm) O.D.	(L)	850	900	900	900	900	900	900	1020	1020	1020	1020
	(W)	1050	1310	1350	1450	1600	1740	1880	2056	2396	2636	2816
	(H)	950	1000	1000	1000	1000	1000	1000	1152	1152	1152	1152
Linkage		(Standard three-point mounted)

---
