Welcome to visit

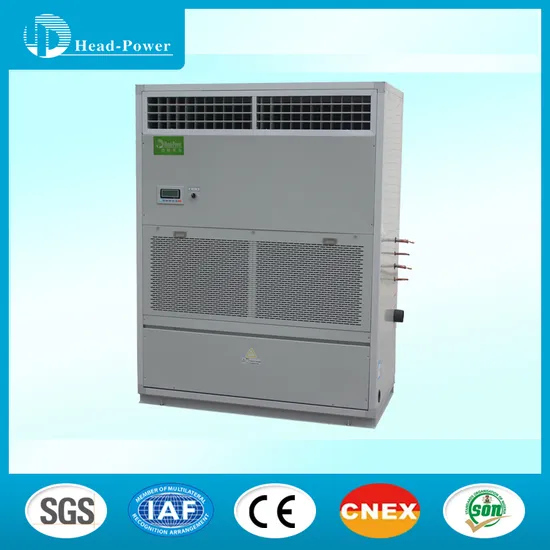

20kg/H 20L R410A Industrial Dehumidifier for Plastic

US$1,200.00-100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CFT
Timing Function
With Timing Function
Type
Floor Standing
Name
20kg/H 20L R410A Industrial Dehumidifier
Rated Dehumidification Cap
8-100 Kgs/H
Rated Cooling Cap
14-165kw
Power Suplly
220/1pH/50Hz, 380/3pH/60 Hz etc, Choose by Client
Comprssor Type
Hermetic Scrol
Compressor Rated Power
3.75-9*5kw
Exchanger Type
Hydrophilic Film Aluminum Fin with Copper Tubes
Air Flow
5000-66000 CMH
Refrigerant
R410/R22/R407c etc Choose by Client
Weight
220-1160kgs
Dehumidifier Function
Adjustable Humidistat
Classification
Dehumidification
Dehumidifier Type
Cooling
Power Type
AC Source
Water Shortage Power-off Protection
With Water Shortage Power-off Protection
Humidifier Type
Industrial Dehumidifier
Humidity Control
Auto and Manual
Transport Package
Plastc+Foam+Woden Case
Specification
1unit/case
Trademark
Headpower
Origin
Guangdong Foshan
Production Capacity
500 Units/Months

Product Description

1)The Feature of 20kg/h 20l R410a industrial dehumidifier for plastic
1.Headpower company has rich experience in design and manufacturing of refrigeration dehumidifiers.Its series of refrigeration dehumidification equipment for air dehumidification are applicable for places with need of dehumification, such as national defense engineerings,civil air defense engineerings,tabacco and petrochemical industries,metrostations,aerospace,decontamination engineerings,lab,telecommunication equipment rooms,archives rooms, foor rooms,pharmaceutical and film workshops,and specialty glass manufacturing.
2.Headpower dehumidifiers include series of regular dehumidifiers,pipe dehumidifiers,heating pipe dehumidifiers, dehumidifiers forcoastal engineerings,dehumidifiers for tabacco storehouses, dehumidifiers for air-conditioning of undergroud engineerings,full fresh air dehumidifiers,and united dehumidifiers
2)Product model:
items type CFT8 CFT10 CFT16 CFT20 CFT25 CFT32 CFT40 CFT50 CFT60 CFT80 CFT100
dehumidity capacity kg/h 8 10 16 20 25 32 40 50 60 80 100
cooling capacity KW 14 16.6 28 33 42 56 66 83 99 132 165
power supply 220V/1PH-50HZ 380V/ 3PH-50HZ 380V/3PH-50HZ
protection devices high &low pressure switch,over load protector,phase order protection,internal over-heat protector ,frequent boot protector
operation and control microcomputer control automatically,failure warning,trouble self-checking, operation balance,Timer on/off
compressor type hermetic scroll compressor
power KW 3.75 4.5 3.75×2 4.5×2 3.75×3 3.75×4 4.5×4 4.5×5 9×3 9×4 9×5
heat exchanger of air side exchanger type copper tubes with aluminum fin
fan type ultra-low-noise centrifugal
air flow m3/h 2600 3200 5200 6400 7800 10800 12800 16000 19200 25600 32000
external static pressure Pa 0/100 0/120 0/150 0/180 200 220 250 280 350 350 400
motor power KW 0.55 0.75 0.55×2 0.75×2 2.2 3 4 5.5 7.5 11 15
heat exchanger of outdoor side exchanger type hydrophilic film aluminum fins with copper tubes
fan type low-noise axial
air flow m3/h 5000 6000 11000 13000 17000 22000 25000 33000 39000 54000 66000
motor power KW 0.25 0.28 0.25×2 0.28×2 0.55×2 1.1×2 1.1×2 0.75×3 1.1×3 1.1×4 1.1×5
refrigerant/volume control R22/ thermostatic expansion valve
operation noise dB(A) 56 59 62 63 65 66 66 68 70 71 72
weight kg 220 240 320 380 450 520 600 680 810 980 1160
dimensions (L×W×H) indoor unit mm 1050×600×1650 1100×600×1700 1450×650×1700 1600×800×1800 1800×800×1800 2000×850×1980 2100×900×2050 2100×1160×2200 2200×1200×2200 2400×1380×2200 2500×1600×2400
outdoor unit mm 840×840 ×950 840×840 ×950 1050×1050×1300 1050×1350×1300 1200×1350×1300 2250×1050×1150 2300×1100×1250 2300×1100×1500 2300×1200×1400 2300×2100×2000 2300×3100×2000
Note: 1. The above parameters are measured under the following conditions: indoor air temperatureDB27 ºC,WB21.2ºC; For air cooled type, outdoor air temperature DB35ºC,WB24ºC; For water cooled type, the inlet/outlet water temperature is 30ºC/35ºC. 2. The specifications are subject to change without notice for improvement. 3. Any special requirements please notify us in advance.
3) Dispaly:
4)Packing and shipping
5)Our company file
