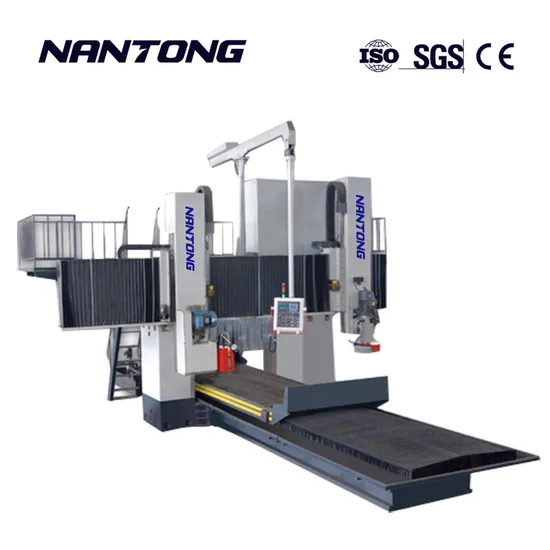

Fixed Beam Metal Gantry CNC Machine

Product Description

Machine Parameters

Model	Unit	SKX2016	SKX2500	SKX3020	SKX4025
Travel
X axis	mm	2,200	2,700	3,200	4,200
Y axis	mm	1,600 / 2,000/2500/3000
Z axis	mm	800(1,000-opt.)
Distance from spindle nose to table	mm	150 - 950(150 / 1,150-opt.)
Distance between two column	mm	1,700 / 2,100/2600
Working table
Table Length	mm	2,000	2,500	3,000	4,000
Table Width	mm	1,600 / 2,000
Table Load	kg	6,000	7,000	9,000	10,000
T- Slot (Width x Number x Pitch)	mm	22x7x180 / 22x9x180
Spindle
Spindle Taper	-	BT-50 / ISO-50 / CAT-50
Spindle Speed	rpm	3,000(6,000-opt.)
Spindle motor(cont./30 minutes rated)	kw	18.5 / 22 (22/26-opt.)
Feed
Rapid Traverse(X/Y/Z)	m/min	12 / 12 / 15			10 / 12 / 15
Cutting feedrate	mm/min	7,000
Accuracy
Positioning Accuracy	mm	±0.005 / 300 ; ±0.015 / Full travel
	mm	P0.03		P0.035
Repeatability	mm	±0.003
	mm	0.025		0.028
ATC
Tool magazine capacity	pcs	32 (24/40/60-opt.)
Max. tool size (full pocket/next pockets empty)	mm	Ø125/245
Max. tool length	mm	350
Max. tool weight	kg	20
Others
Power required	kva	65
Pneumatic input pressure	kg/cm2	6.5
Machine net weight	tons	20 / 22	22 / 24	24 / 26	28 / 30
Floor space (LxWxH)	m	8.5x5.1(5.5)x4.7	10.5x5.1(5.5)x4.7	12.5x5.1(5.5)x4.7	15.2x5.1(5.5)x4.7

Machine Configuration

Automatic lubrication system

Spindle oil cooler

Air blast through spindle

Manual Pulse Generator

Working lamp

3-color alarm lamp

RS-232 interface

Heat exchanger for electrical cabinet

Water gun and air gun interface

Cutting coolant system

Twin auger chip removal system

Belt type chip conveyor with cart

X axis Heidenhain Linear Scale

Sub-table

3 axes manual pulse generator for mold processing

Coolant through spindle at 20/40/70 bar

Coolant through tool holder interface

Air conditioner for electrical cabinet

Transformer

Oil skimmer

Oil mist collector

Company Introduction
NANTONG YIJI MACHINERY CO., LTD
Established in 1988, Nantong YIJI Machinery Co., Ltd specializes in the production of move column CNC machine centers, floor-type boring machines, CNC gantry milling machines, automatic solutions, and professional machine tools. Adhering to our core business philosophy of 'Quality is Essence, Excellence through Full Participation,' we continually enhance the esteemed 'YIJI' machine brand. Through specialized design, mature craftsmanship, stringent QC management, rapid integrated solutions, and exceptional after-sales service, we have gained the trust of our extensive clientele. Our expanding market presence spans over 30 countries across Europe, America, and Southeast Asia, earning us a stellar reputation. Accredited with import/export rights, our products are certified with CE markings and ISO9001 quality system certification.
Endless Innovation. Techniques Shape the Future. We are committed to providing you with our professional expertise, high-quality machinery, and exceptional service.
Our Service
Warranty & After-Sale Service
1. 24-hour technical support via email or phone.
2. Provision of extra machine accessories and custom program services based on your drawings. Customized or special designs are available.
3. All our products come with a 12-month warranty.
4. Man-made damage is excluded.
5. We offer materials and technical support to help our customers resolve any issues.
In cases of repair, return, or replacement, we will cover the delivery charges.
We look forward to your inquiry!

---
