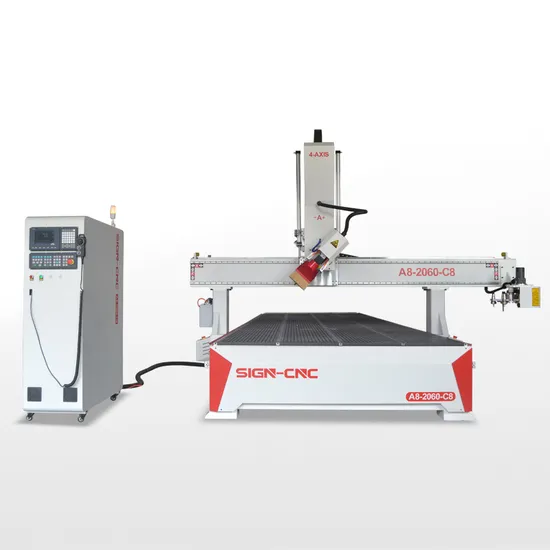

| Model | A8-2060-C8 |
| Working area | 2000*6000mm |
| Z feeding | 400mm |
| Frame structure | Steel casting-welding |
| Type of table cover | Vacuum table with T-slot |
| Vacuum pump | 5.5kw air cooling |
| Z axis transmission | Ball screw and 25 square guide rails |
| X Y axis transmission | 25 square guide rails + Helical rack |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| Command Code | G code * .u00 * .mmg * .plt |
| Operating voltage | AC 380V/50Hz |
| Spindle power | HQD 9.0 KW |
| Spindle rotate | Left and right 180 degree |
| Tool Magazine | 8 - 12 |
| Type of cooling | Air cooling |
| Spindle Speeds | 0-24000rpm/min |
| Drive motor type | Syntec 1000w servo motor with drivers |
| operating system | Taiwan SYNTEC 60WE |
| Dust Collector | 3kw with double bags |
| Lubrication system | Automatic |
| Supported software | Artcam software, Type3 software |
| Operating conditions | Humidity: 30% -75%, temperature: 15 - 45 degree |
| Warranty | Two years |
