Associated Gas Compressor Water-Cooling Compressor Oil Free Compressor

Product Description

Company Profile
Product Description Product ApplicationMainly used for pressurized transmission of natural gas into the pipeline network (Natural pipeline gas extraction and combustible gas recovery tank filling)It can also be used for stirring in the pharmaceutical and brewing industries, pressurized gas transportation in the chemical industry, blow molding bottle making in the food industry, and dust removal of parts in the machine manufacturing industry.Product Features1. This series of compressors is an advanced piston compressor unit produced and manufactured using the product technology of Mannes Mandermarg Company in Germany.2. The product has the characteristics of low noise, low vibration, compact structure, smooth operation, safety and reliability, and high automation level. It can also be configured with a data-driven remote display and control system according to customer requirements.3. Equipped with alarm and shutdown functions for low oil pressure, low water pressure, high temperature, low inlet pressure, and high exhaust pressure of the compressor, making the operation of the compressor more reliable.Structure IntroductionThe unit consists of a compressor host, electric motor, coupling, flywheel, pipeline system, cooling system, electrical equipment, and auxiliary equipment.

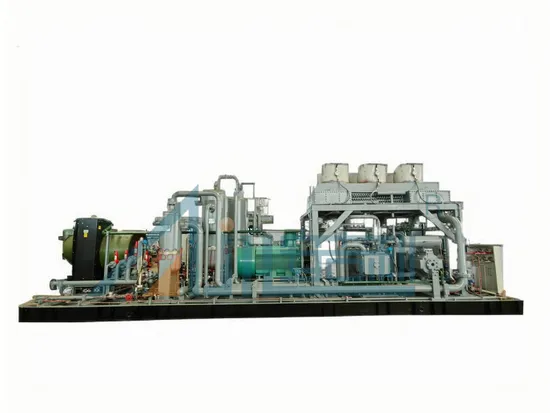

Detailed Photos
Product Parameters

NO.	MODEL	Compressed medium	Flow rate Nm³/h	Inlet pressure MPa	Outlet pressure MPa	Rotating speed r/min	Motor power KW	Cooling mode	Overall dimension mm	Weight Kg
1	DW-14/(0-0.2)-25	Raw gas	800	0-0.02	2.5	740	160	Water cooled	4800*3200*1915	~10000
2	VW-8/18	Vinylidene fluoride gas	418	Atmospheric pressure	1.8	980	75	Water cooled	3700*2000*1700	~4500
3	VWD-3.2/(0-0.2)-40	Biogas	230	0-0.2	4.0	740	45	Water cooled	6000*2500*2650	~8000
4	VW-9/6	Ethyl chloride gas	470	Atmospheric pressure	0.6	980	55	Water cooled	2800*1720*1700	~3500
5	DWF-12.4/(9-12)-14	Carbon dioxide	6400	0.9-1.2	1.4	740	185	Air cooled	6000*2700*2200	~10000
6	VWF-2.86/5-16	Nitrogen gas	895	0.5	1.6	740	55	Air cooled	3200*2200*1750	~3500
7	DW-2.4/(18-25)-50	Raw gas	2900	1.8-2.5	5.0	980	160	Water cooled	4300*3000*1540	~4500
8	VW-5.6/(0-6)-6	Isobutylene gas	1650	0-0.6	0.6	740	45	Water cooled	2900X1900X1600	~3500
9	VW-3.8/3.5	Mixed gas	200	Atmospheric pressure	0.35	980	18.5	Water cooled	2200*1945*1600	~2000
10	ZW-1.7/3.5	Vinyl chloride gas	100	Atmospheric pressure	0.35	740	15	Water cooled	2700X1600X2068	~2000
11	ZWF-0.96/5	Hydrogen chloride gas	55	Atmospheric pressure	0.5	740	11	Air cooled	2000*1500*2000	~1000
12	VW-0.85/(0-14)-40	Refrigerant gas	300	0-1.4	4.0	740	55	Water cooled	4500*2300*1780	~5500
13	DW-3.78/(8-13)-(16-24)	Ammonia gas	2700	0.8-1.3	1.6-2.4	740	75	Water cooled	3200*2000*1700	~3500
