1700mm ABC 3 Layers Film Blowing Machine

Product Description

Extruder can provide a good plastic effect and a high quality products. It is designed optimizedly in die head and the flow is designed scientificly and rationlly.
Widely used in producing composite membrane, cable film, macromolecule adhesive film, liquid film, agricultural film and shrinkable film.

Model	FM3-1300	FM3-1700	FM3-2000	FM3-2200
suitable material	HDPE
thickness	0.02--0.20mm
film width	1200mm	1600mm	1900mm	2100mm
max output	80kgs/hr	105kgs/hr	150kgs/hr	215kgs/hr

Extruder

screw diameter	Φ45mm*3	Φ55mm*3	Φ65mm*3	Φ75mm*3
L/D ratio	30:1
temp. controller	15 zone	15 zone	16 zone	16 zone
barrel cooling	120w*4	120w*4	120w*6	120w*6
driving motor	11kw*3	15kw*3	18.5kw*3	30kw*3

Die head

die diameter	Φ250mm	Φ350mm	Φ450mm	Φ630mm
air ring diameter	Φ350mm	Φ450mm	Φ550mm	Φ900mm
die structure	Spiral mandrel die chrome plated surface 40Cr
cooling fan	2.2kw	3kw	4kw	5.5kw

Take up part

take up width	1300mm	1700mm	2000mm	2200mm
effective width	1200mm	1600mm	1900mm	2100mm
take up motor	1.5kw	2.2kw	2.2kw	3.7kw

winder

winder width	1300mm	1700mm	2000mm	2200mm
effective width	1200mm	1600mm	1900mm	2100mm
winder motor	1.5kw	2.2kw	3.7kw	3.7kw
optional equipment	auto-loader device, film surface treater, air compressor, fast change net, automatic winder, double wind air ring, IBC inner cooling die head

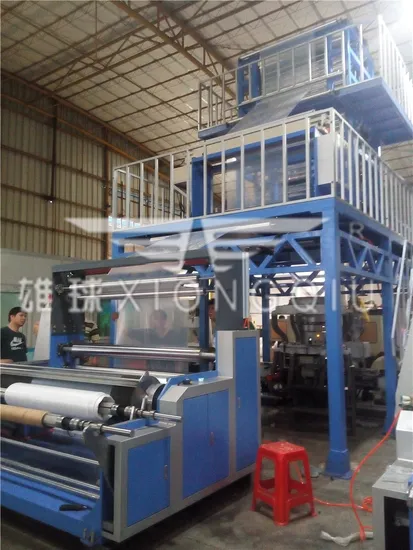

PICTURES FOR REFERENCE:

---
