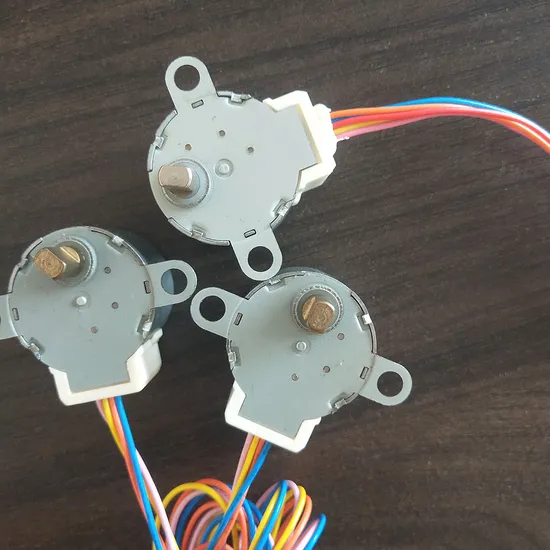

AC Synchronous Step Motor 24byj48 Air Conditioner Stepper Motor

Product Description

Product Description We are professional manufacturer for 20BYJ46 / 24BYJ / 28BYJ48 / 24BYJ48 / 30BYJ / 30BYJ46 / 35BYJ46 / 35BYJ412 series stepper motor
Motor voltage, speed, pull the torque, can be adjusted according to customer requirements.
Products are widely used in air conditioning, monitoring, smart toilet, electronic locks, valves, packaging machinery, food machinery, printing machinery, semiconductor processing, medical machinery, textile machinery, office automation equipment, fitness equipment,Engraved, lettering, and other areas of automation and control. We also serve the user at the same time, to provide the entire system control program, motor selection and technical support for the motor control, to undertake the motor control system hardware and software development.
Mainly used for: home air conditioning, surveillance cameras, high-speed dome, variable speed ball, medium speed ball, air conditioning, smart toilet, office equipment, mobile air conditioning, stage lighting, medical equipment, textile machinery, equipment, sanitary ware and other automation and control areas. General models are as follows:

	V	Ω	HZ	≥mN.m	≥mN.m	pps	pps	step angle
24BYJ48	5	15	100	24.5	24.5	800	1000	5.625
24BYJ48	5	15	100	29.4	39.4	800	1000	5.625
24BYJ48	5	20	100	34.2	39.2	800	1000	5.625
24BYJ48	5	20	100	88.2	39.2	800	1000	5.625
24BYJ48	12	80	100	98	39.2	800	1000	5.625
24BYJ48	12	120	100	88.2	39.2	800	1000	5.625
24BYJ48	12	200	100	68.6	39.2	800	1000	5.625
24BYJ48	12	300	100	49	39.2	800	1000	5.625
24BYJ48	24	200	100	98	39.2	800	1000	5.625
24BYJ48	24	300	100	88.2	39.2	800	1000	5.625
24BYJ48	36	380	100	98	49	800	1000	5.625
Reduction ratio:1/12 1/16 1/25 1/32 1/36 1/64 1/90 1/96
28BYJ48	5	15	100	24.5	24.5	800	1000	5.625
28BYJ48	5	15	100	29.4	39.4	800	1000	5.625
28BYJ48	5	20	100	34.2	39.2	800	1000	5.625
28BYJ48	5	20	100	88.2	39.2	800	1000	5.625
28BYJ48	12	80	100	98	39.2	800	1000	5.625
28BYJ48	12	130	100	88.2	39.2	800	1000	5.625
28BYJ48	12	200	100	68.6	39.2	800	1000	5.625
28BYJ48	12	300	100	49	39.2	800	1000	5.625
28BYJ48	24	200	100	98	39.2	800	1000	5.625
28BYJ48	24	300	100	88.2	39.2	800	1000	5.625
28BYJ48	36	380	100	98	49	800	1000	5.625
Reduction ratio:1/12 1/16 1/25 1/32 1/36 1/64 1/90 1/96
35BYJ46	5	10--20	100	127-196	58.8	800	500	7.5
35BYJ46	12	30-60	100	196	88.2	800	500	7.5
35BYJ46	12	70-100	100	147	68.8	800	500	7.5
35BYJ46	12	130	100	127.4	68.8	800	500	7.5
35BYJ46	12	200	100	147	68.8	800	500	7.5
35BYJ46	24	250	100	196	88.2	800	500	7.5
Reduction ratio:1/15 1/30 1/85
35BYJ412	5	15-20	100	300	120	500	350	3.75
35BYJ412	12	40-60	100	350	120	500	350	3.75
35BYJ412	12	70-90	100	350	150	500	350	3.75
35BYJ412	12	100-120	100	300	150	500	350	3.75
35BYJ412	12	130-150	100	300	180	500	350	3.75
35BYJ412	24	200-600	100	300	180	500	350	3.75
Reduction ratio:1/17.7 1/22.3 1/42.5

After-Sales Service All of our motors have a Warranty and complete After-Sales Service: 1). If there are any quality problems in one month when customer received our motors, we will send you new motors to replace the defective ones, We pay for all of the cost; or we refund all of the payment to customer. 2). All of our motor's information, such as specification data, and instructions of usage will be offered to customer. 1.Q: Can I get some samples first? A: Sure, we are honored to offer you samples for your check. 2.Q: Do you have the products in stock? A: Our products are manufactured according to your order except for the normal products. 3.Q: What's the delivery time? A: It usually takes about 7 working days,but the exact delivery time might be different for different orders or at different time. 4.Q: How does your factory do regarding quality control? A: Quality is a priority. We always attach great importance to quality control from the beginning to the end of production. Every product will be fully assembled and carefully tested before being packed. 5.Q: What are your warranty terms?
A: We offer different warranty terms for different products. Please contact us for details.

---
