Light Duty Disc Harrow at Contraposition

US$580.00-850.00 1 Piece (MOQ)

Basic Info.

Model NO.
1BQD-2
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Fixed Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Vertical Shaft
Certification
CE
Color
Red
Warranty
1 Year
Working Width
2000mm
Working Depth
100-140mm
Disc Dia.
460mm
Disc Quty.
20PCS
Matched Tractor Power
50-60HP
Mounted Way
Three Point Mounted
Weight
380kg
Transport Package
Plywood Case
Specification
2000mm
Origin
China
HS Code
8432100000

Product Description

Product Description
The disc harrow is mainly used for crushing soil work, and it is directly used for turning the ground when the soil quality is good. If the soil quality is not very good, the soil should be deeply ploughed with the disc plows firstly, then the soil should be broken up by disc harrows so that to make the soil ploughing effect better.
Different types of disc harrows are matched according to the models of the tractors and the requirements for deeper depth.
The disc harrows are divided into light disc harrows, medium disc harrows and heavy disc harrows. Among them, the light disc harrow and the medium disc harrow are three-point hitch with the tractor,and heavy duty disc harrow are tractor trailed.

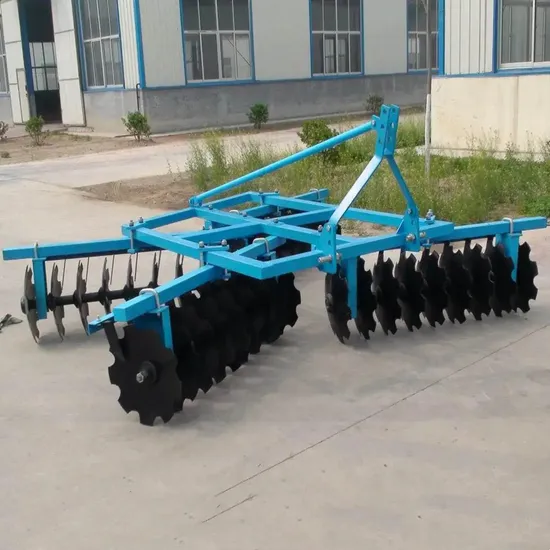

Detailed Photos

Product Parameters
Model Working width Working depth Q'ty of disc Disc diameter Overall weight Matched power
1BQD-1.3 1300mm 100-140mm 16pcs 460mm 330kg 30-40hp
1BQD-1.6 1600mm 100-140mm 20pcs 460mm 360kg 35-45hp
1BQD-2.0 2000mm 100-140mm 24pcs 460mm 380kg 50-60hp
1BQD-2.4 2400mm 100-140mm 28pcs 460mm 440kg 60-70hp
1BQD-3.0 3000mm 100-140mm 32pcs 460mm 510kg 80--90hp
1BQD-3.6 3600mm 100-140mm 40pcs 460mm 580kg 90-100hp

Linkage With Tractor Shows

Related Farm Machines

FAQ
1, What tractors can you match the attachments tools?--- We can supply the tools for tractors from 25hp to max 260hp.2,What is the lead time normally?-- About 10-15days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?-- Normally, if only one tractor without cab, we will make plywood case with steel frame packing to pack the tractor and do LCL shipment; If the tractor with cab, we suggest to use one single container to ship it.5, How about your quality control?--We have engaged in the tractor field for many years, now we have our own brand and have passed the EU CE certification, the quality is ensured.6, How about your warranty and after-sale service?---The warranty for the tractor is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.7, Any free spare parts supply for the tractor and attachment tools?--- Normally, we will give extra oil and diesel fitlers for spare parts.But it depends the order quantity.
