US$20,000.00-100,000.00
|
1 Set
(MOQ)
|
Basic Info.
Type

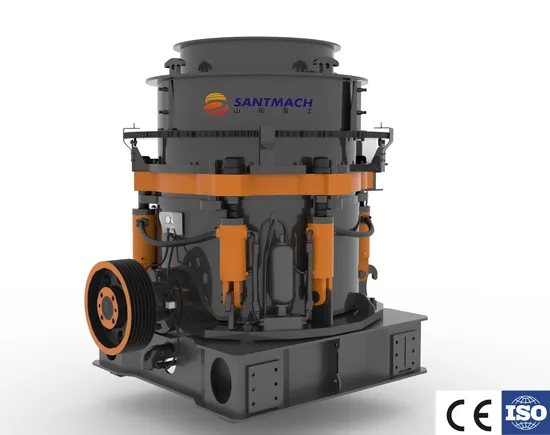

Hydraulic Cone Crusher
Factory Visit
Warmly Welcomed
Transport Package
Container
Production Capacity
70 Per Year
Packaging & Delivery
Package Size
600.00cm * 700.00cm * 500.00cm
Package Gross Weight
14500.000kg
Product Description
Detailed Photos
Product Advantages 1. Optimization design of ship form frame structure, the low vehicle chassis, compact and reasonable structure, modular assembly structure, small turning radius and convenient transporation.
2. Folding type feeding bin, hydraulic support guard board, easy and reliable operation.
3. The control cabinet equips with the advanced words touch control screen, PLC control system, ensureing the function of starting, process adjustment, misoperation tip and protection, electrical control operation, fault and safety tip.
4. The feeder can presort fines, automatic design for silo door, controlling the direction of dividing material.
5. The angle of conveyor is adjustable, and the conveyor can be turned and folded, extending operation conditions, easy for transporation.
6. Adopt stream-line design for vehicle structure, compact and reasonable mechanics optimization structure.
Product Parameters
| Model | Cavity | Standard Type | Short Type | Power (kw) | Capacity (t/h) |
| Feeding Size (mm) | Min Discharging Size (mm) | Feeding Size (mm) | Min Discharging Size (mm) |
| HPS200 | Super coarse | | | | | 132-200 | 90-250 |
| Coarse | 185 | 19 | 76 | 10 |
| Medium | 125 | 17 | 54 | 6 |
| Fine | 95 | 13 | 23 | 6 |
| Super Fine | | | 10 | 5 |
| HPS300 | Super coarse | 230 | 25 | | | 180-250 | 115-440 |
| Coarse | 210 | 20 | 75 | 10 |
| Medium | 150 | 15 | 50 | 8 |
| Fine | 105 | 10 | 20 | 6 |
| Super Fine | | | 20 | 6 |
| HPS400 | Super coarse | 295 | 30 | | | 280-355 | 140-630 |
| Coarse | 250 | 25 | 90 | 10 |
| Medium | 195 | 20 | 50 | 8 |
| Fine | 110 | 14 | 40 | 6 |
| Super Fine | | | 30 | 6 |
| HPS500 | Super coarse | 330 | 30 | | | 355-450 | 175-790 |
| Coarse | 285 | 25 | 90 | 13 |
| Medium | 200 | 20 | 55 | 10 |
| Fine | 133 | 16 | 40 | 8 |
| Super Fine | | | 35 | 6 |
| HPS800 | Super coarse | 353 | 32 | | | 550-630 | 260-1200 |
| Coarse | 297 | 32 | 155 | 13 |
| Medium | 267 | 25 | 92 | 10 |
| Fine | 219 | 16 | 33 | 6 |
| Super Fine | | | | |
Product Description Product Introduction:
The cone crusher is the most widely used crushing equipment in crushing operations, and all countries in the world attach great importance to its improvement work. Over the years, the majority of workers and technicians in China have done a lot of work to improve and seek a new type of crushing equipment with simple structure, convenient use, good performance and high efficiency.
Working Principle:
These include improvements to spring-loaded cone crushers and the design, manufacture, testing and application of hydraulic cone crushers. The shortcomings of the old spring cone crusher; the adjustment of the discharge port is inconvenient; due to the large spring stiffness when the iron is over, the crusher overload factor is large, and it is difficult to remove the non-broken objects that are blocked in the crushing cavity. The hydraulic cone crusher overcomes the above disadvantages more satisfactorily. In recent years, China's vast number of workers, engineers and technicians have summed up China's more than ten years of production practice experience and critically absorbed foreign advanced technology, designed, manufactured and applied single-cylinder and multi-cylinder hydraulic cone crushers. Improvements and research are still ongoing.
After Sales Service
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
>>
