10g 25g 40g 100g SFP Transceiver Optical Fiber Cable Active Optical Breakout Cable Aoc Cable

Product Description

10G SFP+ to SFP+ Active optical Cable AOC Cable 1M 1m~100m AOC cable
Product Description
1.Overview
10G-AOC-xM SFP+ Active Optical Cable (AOC) is a 10Gbps solution to10G Ethernet, and data center. The integrated cable transmits 10Gbps data in each direction over MMF with distance up to 100m. The AOC is SFP+ MSA compliance, low power consumption and lightweight. 2. Features
10Gb/s active optical cable up to 100m OM2 MMF 850nm VCSEL and PIN receiver Single 3.3V power supply Operating Case Temperature: -5~75ºC Hot pluggable Low Power Consumption Light weight Small Bend Radius Digital Diagnostic Monitor(DDM) All-metal Housing for Superior EMI Performance
3. Applications
•10G Ethernet
•Datacom
• Other high-throughput data transmission network
4. Standard
Compliant with SFF-8431 and SFF-8432
Compliant with SFF-8472 Rev 10.2
Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
RoHS Compliant
5. Ordering informations:

10G SFP+ AOC	10G SFP+ AOC OM3 1M
25G SFP28 AOC	25G SFP28 AOC OM3 1M

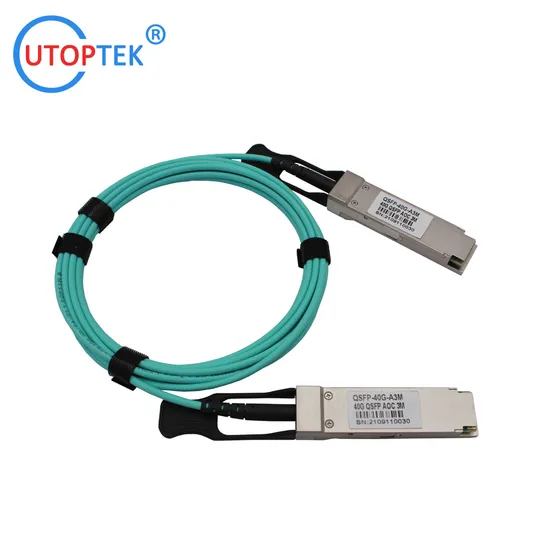

40G QSFP+ AOC	40G QSFP+ AOC OM3 1M
40G QSFP+ to 4*SFP+ AOC	40G QSFP+ to 4*SFP+ AOC OM3 1M
100G QSFP28 AOC	100G QSFP28 AOC OM3 1M
100G QSFP28 to 4*SFP28 AOC	100G QSFP28 to 4*SFP28 AOC OM3 1M

Note: Cable length can be 1-100m available, more longer length, can be customized too. Detailed Photos
Company Profile
Certifications
Customer's Feedbacks

FAQ
Q1 . What's your MOQ?
A1 .1 pc/pair is ok, we don't have MOQ limited.
Q2.What certification did you get?
A2 : Our products passed the CE,FCC,ROHS and SGS test, you can trust our quality very good.
Q3 :What about your delivery time?
A3:For small sample QTY,we have in stock, need 1day.
For QTY 200-500, usually will take 2-3working days. for big QTY pls contact our sales about details.
Q4.What your common shipping method?
A4:By air, by sea or express(DHL,Fedex,UPS,TNT,EMS...), We will make a perfect delivery plan for you.
Q5.How about your product warranty time?
A5:Our products have 1/3/5years warranty for different product series.
Q6. How to handle quality issues with your product?
We give you the promise if any question during 1 year and not cause by human factors, we will fix it.
