Intermediate Drawing Machine for Copper Wire

US$100,000.00-300,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HT. SD250.01.17
Usage
Wire
Metal Material
Copper
Outlet Diameter
0.4-1.8mm
Max.Inlet Wire Dia.
3.0-3.5mm
Block Dia.
250mm
Max. Number of Block
17
Certification
ISO, CE
Condition
New
Line Speed
Max. 1800m/Min
No. of Dies
17
Transport Package
Pallets
Specification
HT. MD150.01.25.04
Trademark
JOC
Origin
China
HS Code
84794000
Production Capacity
100 Stes

Product Description

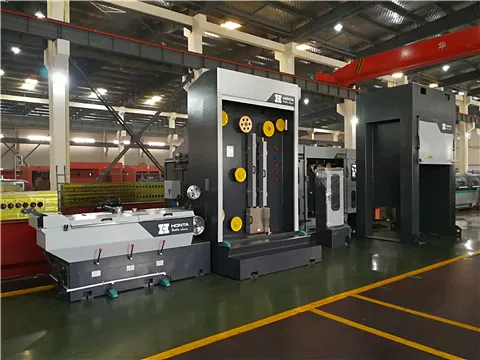

Intermediate Drawing Line
Product Overviews :
High-precision grinding helical gear transmission, forced oil lubrication control, low noise. Full immersion lubrication design.
DC annealing control, annealing automatic tracking speed. Ensure that the elongation of copper wire is stable and uniform.
The take-up tension PID is automatically adjusted to ensure that the tension during the wire drawing process is always stable.
Smaller compression ratio design is more suitable for the production of large-size conductors, such as the production of wire and single conductor.
Inlet dia. :3.00-3.50mm
Outlet dia. :0.40-1.80mm
No. of wires :1
No. of dies :17
Machine speed :Max.1800m/min
Technical Specification :
Machine type HT.SD300.01.17 HT.SD250.01.17
Material Cu,Cu Alloy Cu
Machine speed Max. 1500m/min Max. 1800m/min
Inlet dia. Max. 3.50mm Max. 3.00mm
Outlet dia. 0.80-1.80mm 0.40-1.60mm
No. of dies 17 17
Drawing capstan dia. 300mm 250mm
Finished capstan dia. 300mm 250mm
Annealing current Max. 3500A Max. 2000A
Annealing power Max. 270Kw Max. 170Kw
