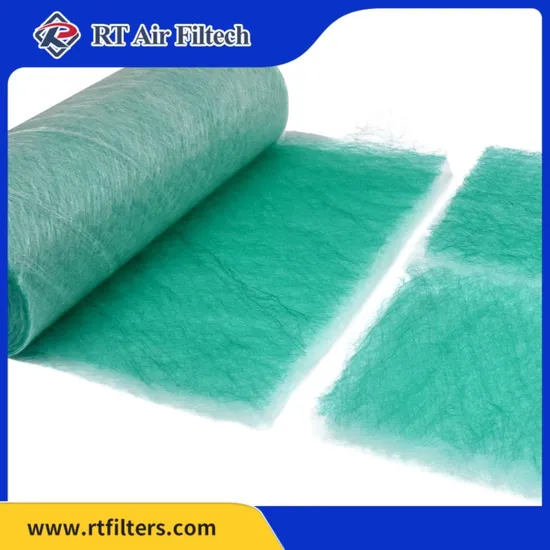

Paint Stop Filter

Product Description

Detailed Photos
Features Step by step encryption of filter fibers and stratified filtration; High dust holding and long service life; air outlet surface with film treatment, stable structure, not easy to drop chips; Strong absorptive power for paint mist and oil mist; Excellent moisture-proof, elasticity, acid and alkali resistance, and high temperature resistance. Application It is mainly used in the discharge filtration of paint mist or industrial oil mist from painting systems or pre-filtration of general ventilation.
Technical Parameters

Main Material	Fiberglass fiber	Filter object	Paint mist, oil mist, dust particles
Filtration class	G2,G3,G4(EN779)	Color	Green-white,Blue-white, yellow-white, pink-white, and white
Final resistance	200Pa(suggestion)	Temperature resistance	200ºC
Average weight efficiency	PA-50/60 ≥90%,PA-75 ≥95%,PA-100 ≥98%	Temp short peak	250ºC
Flammability rating	F1(DIN 53438),B1(GB/T 17591-2006)	Moisture resistance(relative humidity)	100%

Specification

Model	Filtration Class	Thickness (mm)	Weight (g/sq.m.)	Dust holding Capacity (g/sq.m.)	Rated air velocity (m/s)	CMH	I.N.P (Pa)	F.N.P (Pa)	Capture rate
RT-PA30	G2	30~40	180	>3500	2	7200	15	200	85%
RT-PA50	G3	40~50	210	>3800	2	7200	18	200	90%
RT-PA60	G3	50~60	220	>4000	2	7200	20	200	90%
RT-PA70	G3	60~70	250	>4300	1.75	6300	23	200	95%
RT-PA80	G4	70~80	300	>4600	1.75	6300	28	200	95%
RT-PA100	G4	90~100	350	>5000	1.5	4500	40	200	98%
Note: other specification can be customized according to requirements.
