Jieda HY1200 Model Horizontal Continuous Piston Pusher Centrifuge

Product Description

Jieda HY1200 Model Horizontal Continuous Piston Pusher Centrifuge
Product Structure Principle of HY1200 Model Pusher Centrifuge:
The main motor drives the bowl to turn at full speed. The materials are continuously introduced from the feeding pipe and are evenly spread onto the inner filter screen wall of the bowl. Under the action of centrifugal force, after passing through the filter screen and bowl filtration pores, the liquids are discharged outside the machine from the liquid discharging pipe at the housing. The solids are retained in the bowl and form circular filter cakes. When turning at the same speed as the pushing disc, the bowl is pushed by the piston to continuously make axial reciprocating movements. The filter cakes are pushed to continuously move outside the bowl and discharged out of the machine from the bottom of the housing.
Product Features & Uses of HY1200 Model Pusher Centrifuge:
The HY1200 Pusher Centrifuge is a filtering centrifuge with horizontal piston pushing and continuous operation. The centrifuge can carry out feeding, separating, washing, discharging, etc. continuously when it is running at full speed. With such features as continuous operation, stable running, convenient operation, high production capacity, good washing effect, low cake moisture content and etc., it is suitable for separation of suspensions containing solids with granularity higher than 0.1mm and concentration higher than 40%. It is widely used in chemical industry, chemical fertilizer, alkali making, salt making and other industries, and is especially suitable for solid-liquid separation of ammonium bicarbonate, ammonium chloride, Glauber's salt, cotton seed pickling, etc.
Notes of HY1200 Model Pusher Centrifuge:
1. The technical parameters in the product instructions shall prevail.
2. During consultation, customers should specify material features, parameters, service conditions and other requirements.
3. According to special requirements of customers, we can adopt individual design and manufacturing.
Materials: Parts that contact materials can be made of ordinary stainless steel, special stainless steel, titanium alloy, etc.
Motor type: ordinary or explosion-proof single-speed motor, etc.
Selection range of filter screen interval width: 0.1-0.4mm
Design and manufacturing can be made according to the GMP standard.
Other technical requirements can be negotiated.
Main Technical Parameters of HY1200 Model Pusher Centrifuge:

Model		HY-800-N	HY-1200-N
Drum	Diameter(mm)	800	1200
	Filtering Length(mm)	400	500
	Max Speed(r/min)	700/800/900	500/650
	Separating Factor (ω²r/g)	220/287/363	170/284
	Loading Limit(KG)	70	130
Length Stroke(mm)		40	50
Frequrncy of Stroke(1/min)		40	30
Main Motor Power(KW)		18.5	30
Oil Pump Motor(KW)		11	22
Hydraulic System Pressure(Mpa)		2.0-3.0	2.0-3.0
Dimensions(L*W*H)(mm)		2270*1780*1400	3165*2119*1912
Production Capacity(T/H)		8-12	15-20
Weight(KG)		4000	7700

HY1200 Model Pusher Centrifuge is suitable for Salt Production:
Drawing of HY1200 Model Pusher Centrifuge:

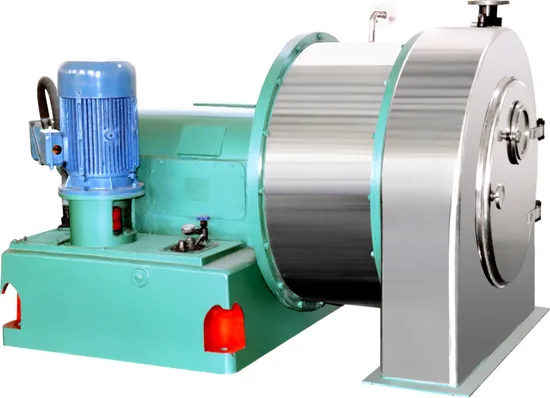

Photo of HY1200 Model Pusher Centrifuge:
Company Profile:
Founded in 2001, Jieda Centrifuge specializes in technical research and development, project design, equipment manufacturing, product sale and application services in the filtering and separating fields. Our company is a National High-tech Enterprise, a Private Technology-oriented Enterprise in Jiangsu Province, a member of Separating Machinery Division of China General Machinery Industry Association, a member of National Filtering Professional Technical Association, and a member of China Association for Pharmaceutical Equipment.
With a wide variety of products, we focus on providing whole-course services and offering overall filtering and separating solutions for such industries as medicine, chemical industry, food, environmental protection and metallurgy. With complete manufacturing equipment and advanced management concepts, our company has been certified to the ISO9001 international quality system and GMP. Our products have been underwritten by PICC P&C. While focusing on technical innovation, our company has cooperated with Jiangsu University of Science and Technology to establish the postgraduate work station and build the centrifuge separating technology research center, continuously climbing high peaks in the centrifugal separation field.
Constant pursuit of perfection will surely create distinguished products and accomplish prominent quality. With higher passion, more extraordinary belief, as well as excellent products and services, Jieda personnel will realize future prosperity and dreams.
Certificates of Our Pusher Centrifuge:
Our Centrifuge Workshop:
Jieda has high-precision CNC machining tools and machining centers, advanced production equipment, fine technique and strict and perfect quality management system, and moreover, we gather professional elites and science and technology team with leading level, so as to make full use of new technologies, new techniques and new materials to guarantee stability and reliability of products. Our product quality originates from advanced manufacturing means, and the concept of fine products stems from continuous innovation.
Why Choose Us:
1. Professional team for you selecting suitable Centrifuge and give you best after-sale service
2. Good quanlity for the Centrifuge running stably
3. Reasonable Price & Fast Delivery
