US$1,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Automatic Screen Printing Machine
Style
Screen-process Printing Press
Structure
Flat-bed cylinder press
Color & Page
Multi-Colour Printing Press
Printing Color
1 - 4 Colors
Conveyor Belt Width
300 mm
Positioning
Electrical Photo-Cell Tracing
Max. Printing Aera
500*260 mm
Running Speed
800-2400 Time/H
Oven Temperature
50-200 ºC
Measurement
11500*550*1850 mm
Electrical Requirement
6-12 Kw / 380V AC
Transport Package
Sea Wood Packing
Specification
11500*550*1850 mm
Production Capacity
1000 Set/Year
Product Description
Elastic tape ribbon webbing band belt silk screen printing machine
Elastic tape ribbon webbing band belt silk screen printing machine is for printing silicone logo onto elastic tape , fabrics , paper , color tape , PP , PE in web feeding .
Multiple purpose , modular structured , durable , easy to use and cost effective a silk screen printing machine can be your ideal choice for small / medium jobs.
We have 1 color machine , 2 color machine , 3 color machine and 4 color machine for you to choose .

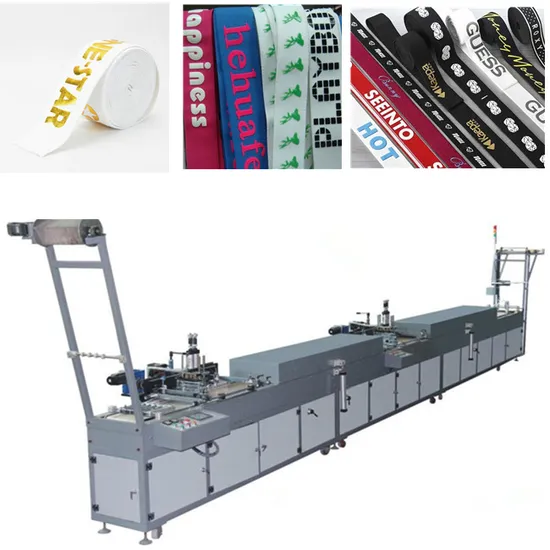

Elastic tape ribbon webbing band belt silk screen printing machine Picture:
Elastic tape ribbon webbing band belt silk screen printing machine Parameter:
| Model | DH |
| Halftone | 1/2/3/4 |
| Printing Color | 1/2/3/4 Color |
| Conveyor Belt Width | 300 mm |
| Positioning | Electrical Photo-cell tracing |
| Min. Tape Width | 3 mm |
| Max. Tape Width | 260 mm |
| Max. Printing Aera | 500*260 mm |
| Running Speed | 800-2400 Time/h |
| Oven Temperature | 50-200 ºC |
| Measurement | 11500*550*1850 mm |
| Weight | 1000 KG |
| Air Requirement | 6 kg/cm² |
| Electrical Requirement | 6-12 KW / 380V AC |
Below sample made by Elastic tape ribbon webbing band belt silk screen printing machine :
Company Information :
Dong Guan Do Hearts Technology Co., Ltd are specialized in the development and manufacturing of PVC label machine , Silicone Trademark Machine , Garments Printing , silicone coating machine , silicone printing for textile ect.
With more than 13 years of development, we have a senior and specialized group. Our company have set up a good reputation within the industry and become the earliest production base of PVC products making machine , silicone products making machine and other machines all over the world .
Package & Shipment :
Pre-sale Service :
1. Supporting sample testing
2. Visiting our factory
3. Supporting one station solution service
After-sales Service :
1. Training supporting, teach you how to install the machines , how to use the machines and how to make products
2. Engineers supporting
>>
