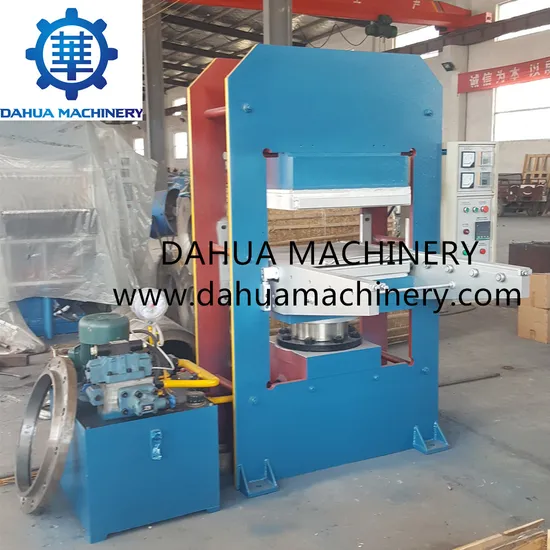

Rubber Speed Bumper Vulcanizing Press Machine

Product Description

Rubber Speed Bumper Vulcanizing Press Machine 1.Material of steel plate: We use hight quality carbon steel Q-235(produce by Jigang Group Co.,Ltd which is a famous company) ,more thicker than other supplier,after shot blasting ,smooth, it is strong enough than common steel 2.Weldment of frame : world technique Welded together as a whole part,Stewing fire treatment after weldment. (Carbon dioxide gas shielded welding,alloyed welding wire). submerged arc welding, VSR treatment after weldment. 3.Piston: the material of plunger is Chilled cast iron, after polishing,grinding treatment and resist compression test,make the surface smooth,anti-abrasion,durable. 4.Heating way&precision temperature control: Steam ,oil or Electric (We use high quality hot platen and heating pipe to keep heating stability and uniformity) range of temperature:0-300 °C (can be adjustment if you need 400 °C ,we can do it ) Plate temperature tolerance: ±0.1°C (very precise)other factory just is ±3°C Also we can produce the machine with water cooling system. 5.Hydraulic system: (PLC control) the professional hydraulic components, stable and reliable and quality .Pressure sensor control system pressure and never off pressure. We use OMRON,SIMENS CHNT , ect brand electric parts. 6.There are more advanced technical information as our core patents,and not showed in the description,please send email to us.
technical parameter:

Parameters/version	XLB350*350*2	XLB400*400*2	XLB500*500*2	XLB600*600*2/4	XLB750*850*2	XLB1000*1000*2
Mould closing force	0.25	0.5	0.8	1.0	1.6	2.5
Hot plate spacing	125	125	125	125	125	200
Hot plate layer	2	2	2	2/4	2	2
Plunger stroke	250	250	250	250/500	250	400
Heating way	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/Stream	Electricity/stream
Main motor power	2.2	2.2	2.2	2.2	3	5.5
The thermal power	2.4kw/board	3kw/board	3kw/board	7.5kw/board	9kw/board	10.8kw/board
Size(l*w*h)	1450*400*1350	1600*400*1440	1450*690*1818	1880*780*1660	2100*1010*1900	2400*960*2500
Weight(kg)	1200	1500	1700	2500/3100

Type	XLB-D(Y)700*700*1/1.00MN	XLB-D(Y)800*800*1/1.60MN	XLB-D(Y)1000*1000*1/1.60MN	XLB-D(Y)2000*1000*2/6.00MN
Nominal molding power(MN)	1.00	1.00/1.60	1.00/1.60	60.0
Working layer number	1-2	1-2	1-2	2
Piston stroke(mm)	250-500	250-500	250-500	300
Main motor power(KW)	2.2	2.2	2.2	2.2
Plate clearance(mm)	125-500	125-500	125-500	150
Calefaction manner	Oil,steam,electricity	Oil,steam,electricity	Oil,steam,electricity	Oil,steam,electricity
Configuration	Frame	Frame	Frame	Frame

Type		XLB-DQ 1200*1200*2		XLB-DQ 1300*1200*1		XLB-DQ 1200*2500*1		XLB-DQ 1500*2000*1		XLB-DQ 2000*3000*1		XLB-DQ 1400*5700*1
Total pressure(MN)		3.15		5.6		7.5		10		18		28
Plate size(mm)		1200*1200		1300*1200		1200*2500		1500*2000		2000*3000		1400*5700
Plate clearance(mm)		200		400		400		400		400		400
Working layer number		2		1		1		1		1		1
Piston stroke(mm)		400		400		400		400		400		400
Plate pressure(Mpa)		22		21.5		25		33.5		30		35
Motor power(kw)		3		8		9.5		11		26		55
Weight(kg)		9500		17000		20000		33000		66000		140000

All our presses can be customized according to your requirements in total pressure, platen size, daylight distance between plate, working layer and piston stroke. Detailed Photos Packaging & Shipping
About Dahua : Qingdao Dahua Machinery Co.,Ltd. which was established in 2000 is affiliated to Shandong Rubber Machinery Research Institute.We specialize in scientific research,production and sales of Rubber Machinery.As keeping extensive close cooperation with Qingdao University of science and technology,Shandong University,China University of petroleum,Chinese Academy of Sciences we have made a great contribution to the development of China Rubber Machinery.The company has experienced technical team,earnestly the grass-roots staff.We have advanced CNC machines and a variety of large and small mechanical processing equipment,heat treatment equipment and sophisticated detection equipment and introduced advanced UG 3D mechanical design software and performance optimization software in 2006. Our design team can design and manufacture non-standard rubber machinery according to customer requirements."Quality first, technology innovation" is the company's business principle,our products were rated as "excellent provincial famous brand" ,"free products" and exported to many countries and regions such as United States,Germany,France,Canada,Australia,South America and so on.With excellent quality and good customer service, the products have been well received among domestic and foreign customers!We sincerely welcome customers all over the world to visit our company or call us to have a business negotiation, hope to make a good faith and win-win cooperation with you and common development hand in hand. Customer SHOW:
FAQ:
Q1.WHO ARE YOU?
A: We are Professional Provider of Rubber Machine in China for many years.
Q2.ARE YOU AN COMPREHENSIVE SUPPLIER FOR RUBBER&PLASTIC MACHINE?
A: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3. HOW ABOUT THE QUALITY CONTROL IN YOUR FACTORY?
A: We has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP.
Q4. WHAT ABOUT THE AFTER-SERVICE? WILL YOU SEND YOUR ENGINEER TO MY COUNTRY TO HELP COMMISSION AND INSTALL THE MACHINE?
A: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers.
Q5. WHAT IS THE DELIVERY TIME OF THE MACHINE?
A: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within10-60 days.
Q6. WHAT IS THE WARRANTY OF THE MACHINE?
A: The whole machine's warranty period is 12 months and spare parts will be depended.

---
