FM Listed Protection Good Quality Sprinkler Head for Residential Fire Sprinkler System

Product Description

Product Description

Characteristics and Functions
Model	Fire sprinkler
Material	Brass, chrome plating
Type	Conventional ZSTP-15
Norminal diameter(mm)	15DN
Connecting thread	R1/2
Glass bulb color	Red
Temperature rating	68°C
Flow Rate	80±4
Bulb	3mm or 5mm
Response	quick response

Basic Parameters
Type	Specification	Norminal Diameter	Thread Size	Flow Rate
Conventional	T-ZSTP	DN15	R1/2	80±4
		DN20	R3/4	115±6
Pendent	T-ZSTX	DN15	R1/2	80±4
		DN20	R3/4	115±6
Upright	T-ZSTZ	DN15	R1/2	80±4
		DN20	R3/4	115±6
Sidewall	T-ZSTB	DN15	R1/2	80±4
		DN20	R3/4	115±6
Concealed	ZSTDY	DN15	R1/2	80±4
		DN20	R3/4	115±6

Temperature Rating

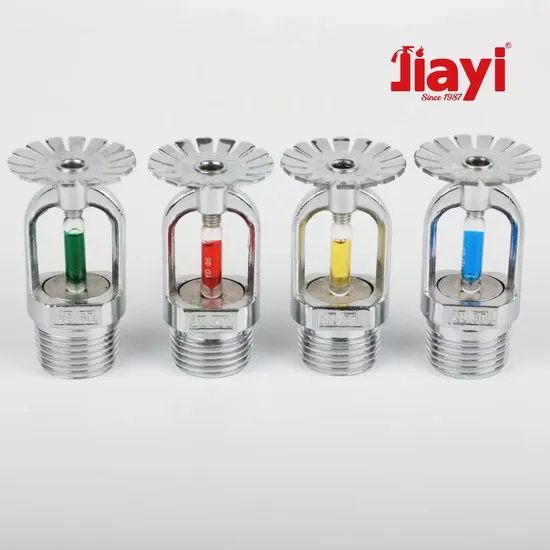

Glass Bulb Color	Orange	Red	Yellow	Green
Nominal Temp. Rating	135°F/57°C	155°F/68°C	175°F/79°C	200°F/93°C
Max. Ambient Temp. Allowed	115°F/46°C	135°F/57°C	155°F/68°C	180°F/82°C
Max. Recommended Ambient Temp.	100°F/38°C	100°F/38°C	150°F/65°C	150°F/65°C

Nanjing Jiayi Fire Technology Co., Ltd is a professional leading supplier of fire extinguisher equipment in China.
With quality products and competitive prices, we have grown rapidly to expand our business all over the world and gained good reputation in the fire fighting industry.
We fully understand that quality comes first, and therefore our products have obtained international certifications namely ISO, CE, EN3, UL, CCC, CCCF etc.
We take care of customers' various needs and provide customized service including OEM, ODM so as to strive for excellent customer service and achieve win-win situation.
Our AdvantagesWe have our own factory to ensure the quality of products.We have teams of professional and mature workmanship technology.Competitive price in the market.Support OEM/ODM.No MOQ and with sufficient stocks available. Certifications
Product ParametersPOWDER Fire Extinguisher

Type	1kg	2kg	6kg	9kg	12kg
Cylinder Size	D85*H270	D110*H317	D162*H422	D184*H489	D184*H581
Capacity	1.25L	2.5L	7.5L	11.25L	13.5L
Net Weight	2.4kg	4.1kg	9.8kg	14.2kg	18kg
Working temp	-20ºC~60ºC
Working Pressure	14 Bar
Test Pressure	27 Bar
Discharge Time(s)	9s	11s	17s	20s
Fire Class	8A 34B C	13A 70B C	34A 183B C	55A 233B C	55A 233B C
Packing Size(mm)	490*250*370	370*270*415	170*170*560	205*200*610	210*200*700

CO2 Fire Extinguisher

Type	1.3kg/3lbs	2kg	3kg	4.5kg/10lbs	6kg	7kg/15lbs
Cylinder Size (mm)	D108*H330	D114*H420	D114*H610	D152*H520	D152*H670	D152*H760
Wall Thickness (mm)	4.2	4.5		5.5
Cylinder weight	>3.90kg	>5.3kg	>7.3kg	>12.2kg	>13.5kg	>16.5kg
Capacity	2L	3L	4.5L	6.8L	9L	10.5L
Agent	>1.3kg CO2	>2.0kg CO2	3.0kg CO2	>4.4kg CO2	5.0kg CO2	7.0kg CO2
Net Weight	5.8kg	7.8kg	11kg	17kg	20.5kg	25kg
Measurements (cm)	16*13*46	17*13*55	17*13*72	23*17*64	22*17*79	22*17*88
Operating Temperature	-20ºC to +60ºC
Working pressure	≤15Mpa
Test pressure	25MPa
Burst pressure	≥40Mpa
Discharge time	≥8s		≥15s
Discharge range	≥2m	≥2.5m

WATER & FOAM Fire Extinguisher

Type	500ML	1L	2L	6L	9L
Cylinder Material	SS304			ST12
Cylinder Weight (kg)	0.4	0.53	0.75	2.7	3.2
Cylinder Capacity (L)	0.65	1.3	2.5	7.8	11.8
Working Pressure	14 Bar
Test Pressure	29 Bar
Working temp	0ºC to +60ºC
Propellant gas	Nitrogen / N2
Declare fire rate	3A 13B C	1A 10B C	8A 34B C	1113B 89B	113B
Packing Size (mm)	D75*H260	D85*H340	D102*H420	D160*H550	D180*H600
Total Weight (kg)	1.12	1.8	3.1	9.3 +/- 0.1	13.2 +/- 0.2
Agent	6% AFFF

WHEELED Fire Extinguisher

Type	10kg	12kg/25lbs	20kg	24kg	30kg	50kg
Cylinder Material	CK45		37Mn
Wall Thickness (mm)	5.5		6
Cylinder Weight (kg)	19.5	25	50	55	60	100
Capacity (L)	15	18	30	36	45	80
Filling With CO2 (kg)	10	12	20	24	30	50
Net Weight (kg)	39	46	95	100	120	195
Measurement (cm)	38*28*115	38*28*132	110*50*110	110*50*120	110*60*130	110*70*120
Using Temperature	-20ºC to +60ºC
Working Pressure	≤15Mpa
Test Pressure	25MPa
Burst Pressure	≥40Mpa
Discharge Time	≥15s
Discharge Range	≥5m

Tips For SelectingClass A rating fire extinguishers are often water-based, and are highly effective in extinguishing burning materials found or stored in an office or warehouse for example. Water-based Class A extinguishers may also have additives to make them more effective.
Class B rating fire extinguishers are usually foam fire extinguishers or powder. These extinguishers work by not only extinguishing flames but also sealing in any potentially dangerous vapours.
Class C rating fire extinguishers will be dry powder fire extinguishers that are capable of separating the elements of thee fire triangle.
Class D rating fire extinguishers are highly specialized extinguishers, designed to be used on specific metal fires with such exotic names as M28, L2 and Purple-K. They will have a long lance with a low velocity application on the end.
Class E rating fire extinguishers are specially designed for use on live electrical equipment. While a powder fire extinguisher is non-conductive and safe to use, the most popular fire extinguisher for use on electrical equipment fires is carbon dioxide, which extinguishes flames without causing further damage.
Class F rating fire extinguishers, also known as wet chemical fire extinguishers, are specifically for fires involving cooking oils and fats.
Detailed Photos
FAQQ1. Do you provide customized products ?
A1. Yes, we do OEM and ODM, or we are open for any other requirement.
Q2. Do you provide sample for trial ?
A2. Yes, we can offer free sample.
Q3. What's the warranty ?
A3. Our products come with 6-month warranty period, and we provide one-stop after sales service to assist you solve all problems.
Q4. How long does it take for delivery ?
A4. The products will be ready for delivery within 20 to 25 days as usual after the payment.
Q5. What's the payment term ?
A5. We accept L/C, T/T, D/P, PayPal, Western Union, etc.

---
