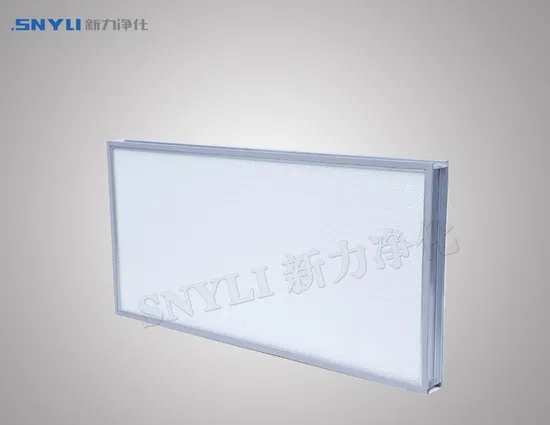

ULPA Filter Standard Air Flow Mini Pleat Panel Type ULPA Air Filter Used in Clean Rooms of Electronics Medical Industries (U15, U16)

Product Description

ULPA Filter Standard Air Flow Mini Pleat Panel Type ULPA Air Filter Used in Clean Rooms of Electronics Medical Industries (U15, U16)All heating and cooling air duct systems naturally collect dust and contaminants. Clean rooms, such as those used in the electronics, pharmaceutical, and medical industries, require a controlled environment free of dust, airborne particles, and other contaminants. Ultra low particulate air (ULPA) filters and high efficiency particulate air (HEPA) filters are used in commercial air filtration systems to trap extremely small particulate contaminants.
ULPA filters trap more and smaller particulate matter than HEPA filters. ULPA filters are 99.999% effective at removing submicron particulate matter of 0.12-micron diameter or larger.Mini pleat design ensures low resistance to airflow.Seamless sealing technology.Uniform air flow, high efficiency,low resistance.Anti-aging technology,long service life.Application:Mainly used in terminal filtration of electronics, Bio,pharmaceutical industries,hospitals,,FFU,Laminar flow devices,and other clean room equipments.
Frame: Anodized aluminum profile
Media: Ultra fine glass fiber
Media guard:Aluminium mesh/Painting fished expanded mesh
Fiber class according to EN1822:2009 : U16/U15
Fiber class according to ASHRAE 52.2-2007:MERV20
Efficiency:99.99995%,99.9995% at 0.12μm
(DOP/PAO Counting method)
Maximum temperature: 70ºC
Maximum relative humidity: 100%
Customized size: AvailableCOMMON DIMENSIONS

Model	Actual size W×H×D(mm)	Air flow (m³/h)	Initial pressure drop(Pa)	Final pressure drop(Pa)
U5MSH48448470	484×484×70	370	167Pa Face velocity 0.5m/sec	340Pa *Proposed value
U5MSH63063070	630×630×70	650
U5MSH570117070	570×1170×70	775	117Pa Face velocity 0.35m/sec	240Pa *Based on FFU performance
U5MSH1170117070	1170×1170×70	1640
U5MSH48448490	484×484×90	370	139Pa Face velocity 0.5m/sec	280Pa *Proposed value
U5MSH63063090	630×630×90	650
U5MSH570117090	570×1170×90	775	98Pa Face velocity 0.35m/sec	200Pa *Based on FFU performance
U5MSH1170117090	1170×1170×90	1640

ADVANCED TESTING MACHINE
We have advanced HEPA filter testing machine to test the efficiency rate,pressure drop and non leakaging. We garrantee the products we shipped out were all good quality product.
Company introductionSNYLI Environmental Technology (Shandong) Co., Ltd. (Abbr.: SNYLI) is a professional service provider of air purification products integrating R&D, design, production and sales for more than 10 years, with the registered brand of "SNYLI". We are a Company with ISO 9001:2015 and CE Certificates, our primary and medium filters are tested according to ISO 16890 and EN 779:2002. Each HEPA filter and ULPA filter will be scanned to detect possible leaks and filter performance, such as initial pressure drop and filter efficiency.
Since established in 2010, SNYLI always takes deeply contributing innovation and development of the air purification industry as its original intention and mission. With a decade of technology accumulation, SNYLI is growing up to a company with advanced manufacturing equipment, production technology, testing technology.

---
