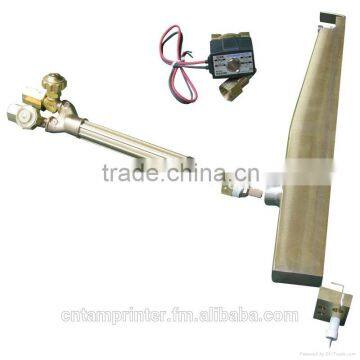

Prepress flame treatment gun or name Air-Gas burner
| Model No. | Size mm(excluding copper fittings of silencer) | Material | Specification | Effective flame length(mm) | Flame width(mm) | flame nozzle rows | Mixed thread in gas hole | Body head screw |
| TAM-F70A | 98X25X55 | | vertical | 0-70 | 10 | | | |
| TAM-F100A | 140X25X55 | | vertical | 0-100 | 10 | | | |
| TAM-F120A | 170X25X35 | | horizontal | 0-120 | 10 | | | |
| TAM-F120B | 175X25X50 | | horizontal | 0-120 | 15 | | | |
| TAM-F150A | 200X25X50 | | vertical | 0-150 | 10 | | | |
| TAM-F200A | 245X25X70 | SUS304 shell, copper fire-breathing hole | horizontal | 0-200 | 15 | | | |
| TAM-F200B | 242X25X50 | | vertical | 0-200 | 10 | | | |
| TAM-F200C | 245X25X55 | | vertical | 0-200 | 15 | | | |
| TAM-F220A | 270X25X55 | | vertical | 0-220 | 15 | | | |
| TAM-F250A | 290X25X55 | Copper shell and flame nozzle | vertical | 0-250 | 10 | 5 | M-G3/8 | SUS M5 0R M6 |
| TAM-F250B | 290X25X47 | | vertical | 0-250 | 10 | | | |
| TAM-F250C | 295X25X35 | | horizontal | 0-250 | 10 | | | |
| TAM-F250D | 290X25X47 | | vertical | 0-250 | 10 | | | |
| TAM-F250E | 300X25X50 | SUS304 shell, copper fire breathing hole | horizontal | 0-250 | 10 | | | ~3Kg |
| TAM-F250F | 320X35X40 | | horizontal | 0-250 | 10 | | | |
| TAM-F300A | 355X25X40 | | horizontal | 0-300 | 10 | | | |
| TAM-F350A | 405X25X58 | | vertical | 0-350 | 10 | | | |
We have copper burner or stainless steel burner,
1, not leak gas welding, to ensure safety.
2, Appearance is very beautiful, internal filter fine,
3, forked joint imports from U.S..
4, have 17 types , min size of burner TAM-F70A
|
| |
|
