Js Series 2000 Litres Double Spiral Twin Shaft Concrete Mixer Js2000

Product Description

Brief Introduction of Twin Shaft Concrete Mixer:

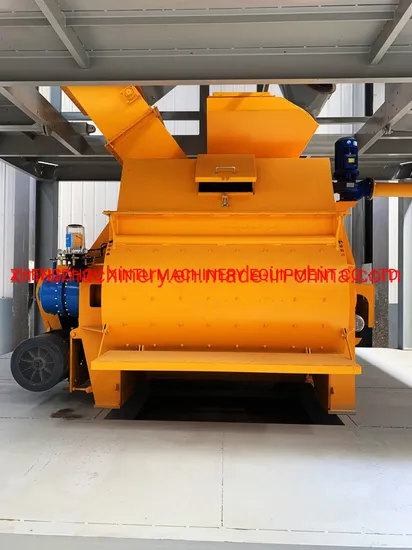

This JS series twin shaft concrete mixer is compulsory type with main components of feeding system(skip hopper), mixing bowl, discharging system, water supply system and electrical system. It is widely used for small or medium scale concrete batching plant to produce commodity concrete.
Features & Benefits of Twin Shaft Concrete Mixer: 1.The high hardness Mn-steel makes the liner and blade have long working time.
2.With the new designed mixing system, it can work more steady and efficiency.
3. Easy for operating & maintaining, saving more cost.
4. Discharge height can us special designed.
parameters of bucket type twin shaft Concrete Mixer:

Model		JS1000	JS1500	JS2000	JS3000	JS4000
Discharging capacity		1000L	1500L	2000L	3000L	4000L
Charging capacity		1600L	2250L	3000L	4500L	6000L
Productivity		≥60m³/h	≥90m³/h	≥120m³/h	≥180m³/h	≥240m³/h
Maximum size of Aggregate (mm)		<60/80	<40/60	<80/100	<80/100	<80/100
Mixing blade	Speed of mixing drum	32r/min	30r/min	25r/min	22r/min	20r/min
	Quantity	2×7	2×8	2×8	2×9	2x10
Mixing motor	Model	Y180M-4	Y180-4	Y200L-4	Y225S-43	Y250M-4
	Power	2X18.5kw	2X30kw	2X37kw	2X55kw	2X75
Total Weight	kg	5200	5800	7500	9200	12200

This efficient machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.

---
