Product Details
Product Description
Product Description

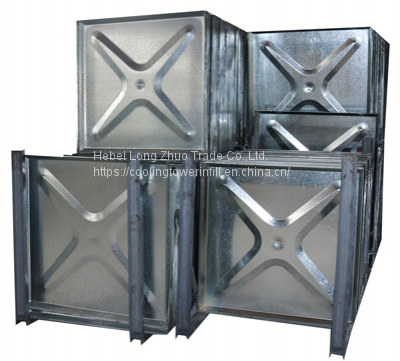

Galvanized steel water tanks
The hot dipped galvanized steel water tank is defers to the manufactured new type water tank.The manufacture and the installmentof tank have no influence of the construction.There are not needed the welding apparatus, the surface is hot dipped galvanize antiseptic treatment. It’s artistic durable, prevents two times pollution to water quality and it beneficial to human health.
The water tank meets the construction product standardization, the seriation and the factorization request.
This product is suitable for the construction water storing,the regulating tank,heating system's inflation water tank,the condensate tank as well as the building construction, the geological prospecting,the industry, the defense project and so on temporarily store water tank.This water tank volume has 24 kinds specifications, select for the design. The engineer also can design according to the water tank's length, width, high then factory assembles.
The inlet pipe, the outlet pipe, the overflow caliber and the position of water tank is depends on the designing. All around the water tank should have no less than 700mm channels, the bottom and the cover should no less than 600mm. When it installed, the bottom and all around between the bottom standard plate's joins must be located on the support.
For the steel panel water tank series,there are three kinds of water tank:
1.Hot dip galvanized steel water tank
Carbon steel panel immersed in molten zinc solution to get Fe Zn alloy.Anti-corrosion from kinds of liquid.
2.Enameled steel water tank
Enameled steel plate surface to prevent the steel plate from rust .One layer black outside,double layers white inside.It can store drinking water .
3.Gush-paint steel water tank
In electrostatic interaction ,the powder absorbed in the panel surfact.Then through high temperature baking flow get finnal coationg effect.
Water Tank
Height(mm)
| Thickness of each panel(mm)
|
Bottom
| 1st side
| 2nd side
| 3rd side
| 4th side
| 5th side
| Top
|
1000
| 3
| 3
| /
| /
| /
| /
| 2
|
1500
| 3
| 3
| 3
| /
| /
| /
| 2
|
2000
| 3
| 3
| 3
| /
| /
| /
| 2
|
2500
| 4
| 4
| 3
| 3
| /
| /
| 2
|
3000
| 4
| 4
| 3
| 3
| /
| /
| 2
|
3500
| 4
| 4
| 3
| 3
| 3
| /
| 2
|
4000
| 5
| 5
| 4
| 3
| 3
| /
| 2
|
4500
| 5
| 5
| 5
| 4
| 4
| 3
| 2
|
5000
| 5
| 5
| 5
| 4
| 4
| 3
| 2
|
