4 5 6 Spindles 400mm 330mm 230mm 210mm 160mm 120mm Woodworking Machinery Four Side Wood Planer Moulder

Product Description

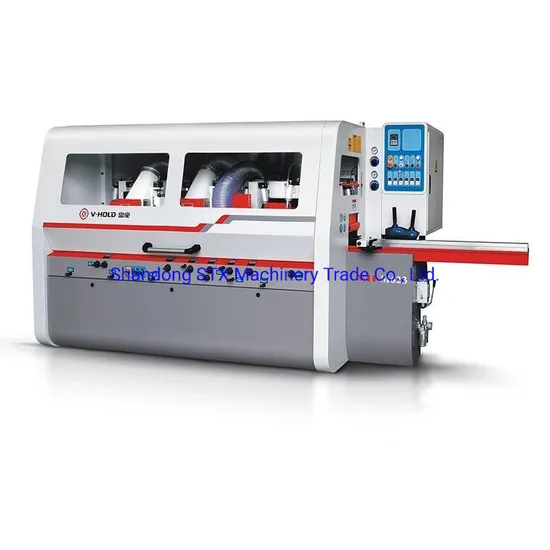

Heavy Duty Woodworking Four Side Moulder Planer with CE Certification

Specification

Main Feature
1.Adopt stepless speed regulation with the feeding speed of 6-36 M / min
2.Each spindle driven by an independent motor, with strong cutting force.
3.Spindle adjustment is in the front, easy to operate.
4.Electroplating countertops with good wear resistance
5.The lower initiative rollers improves the feeding effect
6.Configured Chint electrical components
7.Fully enclosed safety shield, effectively avoid sawdust flying and isolate noise
8.Pneumatic pressure type feed wheel, adjust the clamping force sectionally,
is good for smooth feeding of wood profile with different thickness
9.Configured auxiliary device for short profile to promote the smooth feed.

Parameters

Basic technical data
Model NO.	M623E
Working width	25-230mm
Working thickness	8-160mm
Length of working table	1970mm
Feeding speed	6-36m/min
Spindle diameter	40mm
Spindle speed	6500r/min
Air pressure	0.6MPa
Motor Power
1st bottom shaft	7.5kw
Right vertical shaft	7.5kW
Left shaft	7.5kW
1st top shaft	11kW
2nd top shaft	7.5kW
2nd bottom shaft	7.5kW
Lifting beams	0.75 kW
Feeding	5.5 kW
The total power	55.12kW
Tool diameter
1st bottom shaft	125mm
Right vertical shaft	125-180mm
Left shaft	125-180mm
1st upper shaft	125-180mm
2nd upper shaft	125-180mm
2nd bottom shaft	125-200mm
Other Parameters
Feeding wheel diamter	140mm
Overall dimension	3961*1462*1776mm
Dust outlet diameter	140mm
Machine weight	3150kg

Detailed Images

	Rapidly flip-short feeding device This mechanism effectively menhance the smooth feeding of short material, auxiliary feed wheel has a drive power to make feeding more brisk. Feeding off the wheel, easy to replace the tool and calibrated
Moveable working table on the last bottom spindle, Making easy working on changing cutters
	Heavy cutting gear box Nourishment wheel via a universal joint and the gearbox, ensure no power loss. Feeding extremely smooth, powerful driving force, high feedind accuracy
Every spindle is tested and assembled in dust free room, with S KF bearing on the double end before finished. Absolute smooth running of the spindleensure the finished surface without any roughness
	Double-deck working table on left and right spindle, guaranteed working verticality
Front and rear press plate can be adjusted respectively, although the big variation in wood thickness, also work pieces can be firmly pressed down on the working table
	Feeding frequency inverterDigital display, easy operation, energy saving, reduction of mechanical transmission wear.

Processed effect

Package & Delivery
After passed the quality inspection, the machine will be wiped with biodegradable anti-rust oil to protect from the humid sea air. Then use PE film packaging.
Usually we use iron pallet handling equipment to the container. It can also be packaged in a fumigant-free wooden box according to customer requirements.


Our Service
Pre-sale Service
· Tailored configuration solutions according to your needs.
· Customized service available.
· Free workshop layout design.
· Free visit reception service.
· Free supply chain support service.

After-sales Service
· Professional on-site installation, training and maintenance.
· Timely and efficient online and video technical support.
· Super 18 months warranty since package opened.
· Reliable lifetime spare parts support and technician service available.


About Us
Since established in 1990s years, we keep our attention on Four side moulder, Double Side Moulde, Rip saw,Optimizing cross cut saw and double end tenon machine. Depand on powerful R&D capability, strong machining capacity and high quality products and service, we have becoming a leader manufacturer in China

---
