Plastic HDPE 250 220 Liters Barrel Industrial Machines Manufactures Drums Extrusion Blow Molding Making Machine

Product Description

Product Description

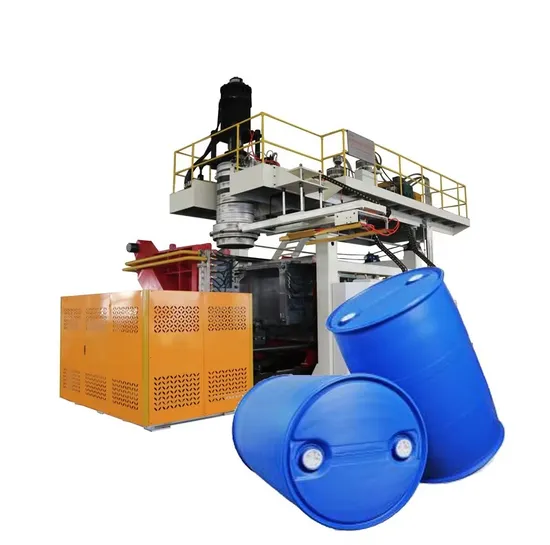

WEZK-220L Single/Double Layers L-Ring Drum Blow Molding Machine
WEZK-220L Single/Double Layers L-ring drum blow molding machine adapted new designed multi-layers machine head, servo controlling system, saving more than 30% energy, and also new designed screw, capacity could be up to 450-500 /24 hours.The machine could produce double L-ring, single L-ring and open-top drum by changing different molds. APPLICATION
PRODUCT DETAILS

System	Item	220L L type barrel
		1 layer	2 layer
Extruder	Screw diameter(mm)	120	90/9
	L/D	30/1
	Driving motor power(KW)	132	75/75
	Heating power(KW)	28	44
	Extrusion capacity(Kg/h)	330	350
Moulds die head	Materials storage volume(L)	22
	Parison control	100 dot MOOG wall thickness controller
	Drum Size	120-250L
	Heating power(KW)	36	40
Moulding clamping system	Mould size(mm)	1600x1500
	Clamping force(KN)	800
Electrical control Cabinet	Temperature-controlling	SIEMENS temperature-control modules
	PLC	SIEMENS
	Touching screen	SIEMENS
Hydraulic system	Main oil pump motor(KW)	37
	Servo motor(KW)	5.5
Basic Parameter	Outer size L*W*H(M)	7x4x5
	Total power installed(KW)	230	270
	Average power consumption(KW)	150	175
	Weight	22	28
	Capacity	450-500 /24 hours

OUR WORKSHOP
Our Advantages
Company Profile
Qingdao Weier Plastic Machinery Co., Ltd. is engaged in macromolecule science and producing plastic machinery. Our production lines, such as aluminum plastic composite pipe unit, PVC foam pipe unit, plastic profile, board and sheet units, HDPE gas pipe unit, and PP-R (PEX) pipe unit, are characterized by stable performance and advanced technology which are welcomed by our customers. The new developed PVC plywood board unit, plywood decorative strip and foamed sheet unit, macromolecule paint free board unit and PET strapping band unit are in leading place in China. The new developed TPU high pressure oil transportation and TPU moving oil warehouse equipment in war industry have been put into production, which has been approved by authority in China. Our products have been exported to many countries in the Middle East, Africa, and Southeast Asia. Please feel free to contact us for more information.

FAQ
Q1: How to visit our Factory? (not a trade company)
A:Qingdao Airport → Pick you up
Q2: How does your factory do the quality control?
A:"QUALITY FIRST " We purchase qualified parts, test the machine every step when manufacturing.
Q3: How about the installation?
A: Option 1: Our engineer installs the machines for you, also train your staff until they can run the machine independently.
Option 2: You learn installation in our factory.
Q4: Do you have after-sale service?
A: The supplier is responsible for installation, debugand training, we will realize guarantee of repair; Replacement and refund of substandard products within one year after the machine leaves factory. Fittings of the machine will supply at preferential price after one year
Q5: How about the payment term?
A:30% deposit, 70% after testing machine in our factory Before Shipping By T/T, VISA,L/C.

---
