Automatic Round Saw Blade Sharpening Machine / Metal Cutting Saw Blades Precision Grinding Machine for Sale

US$15,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
TF650
Processing Object
Gear
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Item
Carbide Saw Blade Tipped Grinding Machine
Color
White
Weight
1600kg
Power
4kw
Grinding Speed
1~20mm/S
Voltage
380V, 50Hz
Accuracy
0.01-0.03mm
Mode
Auto
Certificate
SGS
Loading Port
Tianjin
Transport Package
PE Bag and Wooden Case
Specification
1800 X1200 X2030mm
Trademark
TORSEL
Origin
China
HS Code
8460310000
Production Capacity
1000PCS/Year

Product Description

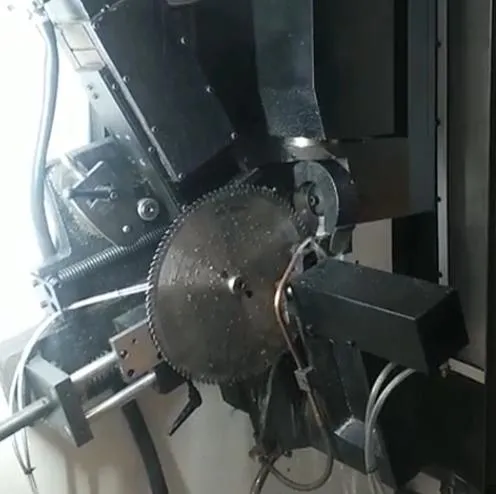

Automatic round saw blade sharpening machine / metal cutting saw blades precision grinding machine for sale
1. Mainly used for grinding top&face angle of aluminum alloy saw blades, plate furniture saw blades, and high -end power tools.
2. All the mechanisms are installed on the cast iron base, which avoids the resonance during grinding. The castings are treated with high temperature tempering and vibration to ensure that they will not be deformed for long-term use.
3. The four-axis servo is controlled by digital signals, and the equipment has no analog signals such as proximity switches and sensors.
4. The feed method, feed amount, grinding speed, saw blade speed can be set on the screen. The processed specifications can be stored as the product number, which can be directly called during the next processing, and a maximum of 100 recipes can be stored.
1.What is the payment terms?
---L/C, T/T
2.Which is the grinding surface of the grinding machine TF650?
---It can grind the top and face surface of the tip.
3.Where is the loading port?
---Tianjin, China.
4.Is the company's technology for producing saw blade grinding machines mature?
---Sure,our company have more than 120 technicians, and they have more than 20 years working experiences.
5.Where is the address of the factory?
---Our factory is located in Tangshan city, Hebei province, China.
6.What is the grinding accuracy of the grinding machine?
---The accuracy of the grinding machine is between 0.01-0.03mm.
7. Which tooth surfaces of the saw blade can your grinding machine grind?
---It can grind any tooth surface, and you can choose a grinding machine to grind the tooth top, tooth face or side surface according to your needs.
8. Are you a manufacturer or a trading company?
---We are professional saw blade grinding machine manufacturer. We have more than 120 technicians dedicated to the design, development and production of saw blade grinding machines. And there is an independent sales department and after-sales department to provide you with services.
9. How can I select a suitable grinding machine?
---You can tell us your requirements of saw blade grinding machine, and other parameters of your saw blades, we will give you professional suggestion.
10. Can I contact you if I have any questions?
---Sure, we will serve you wholeheartedly, please feel free to contact us if you have any questions.
