Vacuum Mixing Emulsifier Equipment of China Ai

Product Description

vacuum mixing emulsifier equipment of china AI

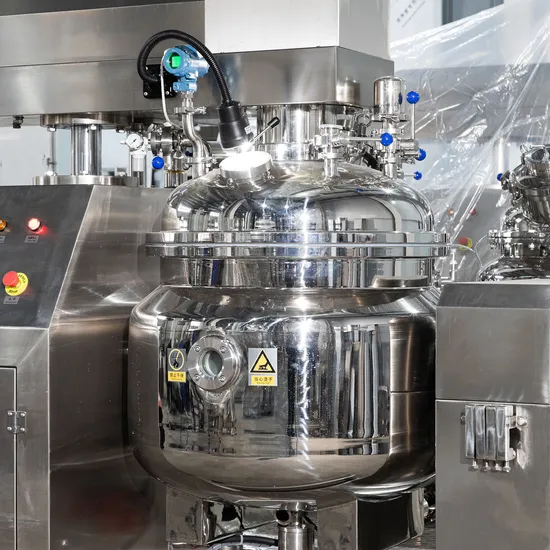

This unit is composed of tank, water tank, vacuum homogenizing emulsifying machine, heating system, mixing system, vacuum system, electric lifting system, operation control cabinet and pipeline system. It is the most suitable cream equipment for producing high-grade skin care products or products .
Tank volume 45L; water tank volume 65L; main pot volume 120L, working volume 100L; ultimate vacuum -0.09MPa.
Host Dimensions: 1700mm*650mm*1700-2500mm (can be customized according to customer requirements), oil pan Dimensions: 1200mm*600mm *1250mm
The unit material: inner wall is 316 stainless steel , jacket, outer layer is 304 of high quality stainless steel inside and outside fine polishing, surface special light processing.
Fuel tanks, water tanks: double production, the inner wall thickness of 4mm, the outer thickness of 4mm,
Water tank heating system: Mezzanine electric heating power 8KW, asbestos insulation on the outer layer, both to ensure that heat energy to reduce emissions, but also to avoid burns staff.
Water tank mixing system: two boxes with a nominal mixing disperser 0.75KW, oil, water heating more quickly and evenly.
Vacuum homogenizing emulsifying pan: made for three layers, inner wall thickness 5mm, middle layer thickness 5mm, outer layer thickness 4mm, special light treatment. The machine adopts the homogenizer, according to different products arbitrarily set the homogenization time, voltage 380V, Power 3KW Shanghai motor, the maximum speed of 2900 rev / min. Homogenizer using advanced German technology, unique structure, the material in the multi-layer rotor and stator high-speed movement in the gap between the formation of a strong hydraulic shear, dispersion of materials , At the same time produce centrifugal squeeze, grinding, collision and other comprehensive force, the final full mixing of materials, mixing, refinement to meet the desired requirements .With the lid with lighting observation hole, ready to grasp the pot product emulsification. The material inlet facilitates the process of adding special flavors, and the operation is convenient for discharging the material at the bottom of the pan, which can be directly fed into the filling machine through the pipeline for dispensing, and also discharged again for cleaning.
Vacuum system: voltage 380V, power 1.1KW, vacuum suction, the use of Shanghai Bohui rotary vane vacuum pump defoaming treatment (tap water can be recycled cooling), to improve the homogeneous effect.
Mixing system: with a transparent filter monitoring, frequency control speed scraping wall mixing, voltage 380V, power 1.1KW, 120 rev / min.
Heating system: the bottom of the host with 8KW electric heating device as the host heating.
Electric lift system: voltage 380V, power 1.1KW, electric lift easy to operate, can effectively make the material emulsified under closed conditions.
Control system: The control system is equipped with digital time relay device, which can adjust the speed and working time of the homogenizer according to the technology and characteristics of different products. , Voltage, current and frequency control, homogenizer time settings are reasonable together. Operate at a glance.
Terms and conditions:

Time of Shipment:	Within 50 working days after receipt of advanced 30% payment of the sales contract or upon receipt of an irrevocable and at sight L/C in our favour.
Port of Shipment:	From Shanghai Port , P. R. China.
Term of Delivery:	By sea
Packing:	Export-standard wooden case.
Terms of Payment:	30% Advance payment before production and 70% balance payment before shipment by T/T or by Irrevocable confirmed L/C at sight.
Warrantee period:	16 months from shipping but not later than 12 months from installation.

---
