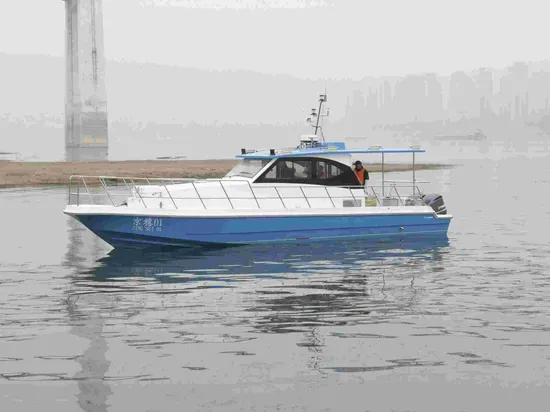

11.68m FRP Diving Boat for 15 Passengers

Product Description

Product Description MAIN SPECIFICATIONS

Brand	Jingsui
Material	FRP
Model	JS-UF39A fishing boat
Place Of Orgin	Wanzhou,Chognqing
Overall Length	11.68
Water Line Length	10.36
Beam	2.85
Depth	1.4
Draft	0.55
Person Capacity	15
Speed	42KN
Engine Type	outboard motor
Maximum Power	350HPX2

LAYOUT
STANDARD FITTINGS

HULL
Isophthalic gel coat	set	1
Unsaturated polyester resin	set	1
Fiberglass Mat	set	1
Fiberglass cloth	set	1
OUTFITTINGS
Rubber fender	set	1
Fence	set	1
Tube socket	set	1
Seat	set	1
Seat Cushion	set	1
Side cushion	set	1
FRP canopy	set	1
Bridge windshield	set	1
Anchor Tank Outlet	pc	1
Deck scupper	pc	2
Air inlet and outlet	set	1
Bow U-ring	pc	1
Diving board &ladder	set	1
Stern drain	pc	2
Bilge pump drain with check valve	pc	1
Trash	pc	1
Signal light stand	set	1
Locks, hinges and other small hardware	set	1
Electrical equipment
Deck lights		4
storage compartment light		1
Driving console switch buttons, indicators, instruments	set	1
Distribution board assembly	set	1
Cable, Lightning Rod Grounding	set	1
Battery	pc	2
Deck flushing faucet + fresh water pump + 100L water tank	set	1
Life saving equipment
Life jacket	set	12
Life buoy and lifeline	set	1
Radio, navigational equipment
magnetic compass	pc	1
Searchlight	pc	1
Signal equipment
Port/starboard light	pc	1
White ring light	pc	1
Anchor light	pc	1
Anchoring, mooring
anchor	pc
Anchor cable	pc	1
mooring fiber rope	pc	2
Tow rope	pc	1
Single bollard	pc	4
Bow chain guide hole	pc	1
ENGINE SYSTEM
Fuel tank and hostsystem		1
liquid level sensor	pc	1
Fuel injection, venting, fuel delivery host, valves	set	1
Hand builge pump	pc	1
Bilge pump	pc	1

Recommended Products
Company Profile
Packaging & Shipping
FAQ 1. How to choose the right model ? It depends on continuous output power, Voltage, Frequency and fuel type.
2. What is the warranty ? One year.we offer all spare parts free of charge during warranty period. After this period, spare parts are not free. What's more, a set of spare parts will be shipped together with engine and generator set free of charge.
3 . How is the after sale service and maintenance? A:We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.

---
