2025 Multi Layer 5 and 7 Layers Blown Film Extrusion Lines Best Performances Five Layers Film Blowing Machine

Product Description

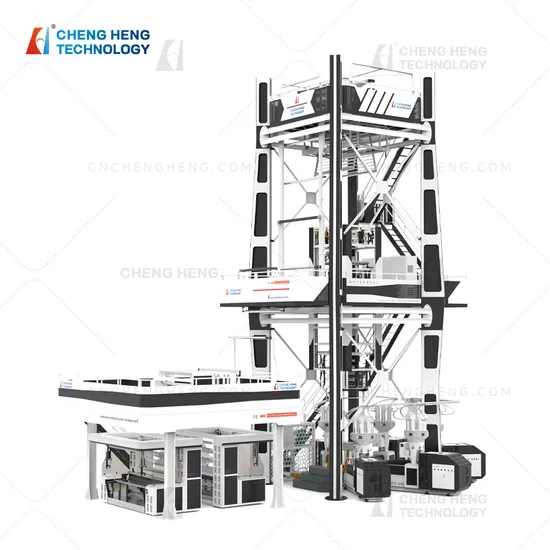

Multilayer 5-7 Co-extrusion Blown Film Extrusion Machine Product Description
The 5 layers film blowing machine is designed to cater to your needs for excellent film blowing performance in various industries such as food and beverage,pharmaceuticals,and cosmetics packaging.This machine comprises five polymer layers,each designed to provide unique properties to enhance the overall quality of the film. Intelligent control for the whole line to improve processing management and teduce labor intensity.Modular design for the whole to meet client's customization requirements.
Product Parameters

Model	45/50/55/50/45-1800	50/55/65/55/50-2000	55/65/75/65/55-2200	65/75/85/75/65-2400
Width of the film	900-1500mm	1000-1800mm	1200-1800mm	1300-2200mm
Thickness of the film	0.03-0.15mm
Output	150-200kg/h	150-300kg/h	150-400kg/h	150-450kg/h
	According to different width, thickness of film,die size and raw material characteristics to change
Raw material	HDPE/LDPE/LLDPE/EVA/MLLDPE
Diameter of screw	Φ45/50/55/50/45	Φ50/55/65/55/50	Φ55/65/75/65/55	Φ65/75/85/75/65
L/D ratio of screw	32:1 (With force feeding)
Gear box	146# *2 180#*1 173# *2	173# *2 200#*1 180# *2	180# *2 225#*1 200#*2	200#*2 250#*1 225#*2
Main motor	15kw*2 30kw*1 18.5kw*2	18.5kw*2 37kw*1 30kw*2	30kw*2 45kw*1 37kw*2	37kw*2 55kw*1 45kw*2
Die diameter	Φ300mm/400mm	Φ400mm/450mm	Φ450mm/500mm	Φ500mm/550mm

Detailed Photos
Gravimetric dosing unit
Using professional high-speed valve and reverse screw stirring technology and continuous weight lessness control technology,precise proportioning of raw materials andmixing can effectively avoid chromatic ab-erration and reduce labor.
Automatic air ring
The automatic air ring is a double air lip air ring composed of software and automatic contour control system, which is used to control the air volume of the upper and lower air lips to match the characteristics of the plastic polymer
Auto thickness control system
The system uses capacitive measurement technology to continuously measure thethickness during the film production pro-cess, mounted on a circular track, and con-nected to a 15" color

IBC
IBC can accelerate the cooling of the inner and outer sides of the film , improve the transparency, tensile strength and other physical properties,which is conducive to the stabilization of the film, reduce the film width error and improve the yieldtouch screen.

Horizontal rotary tower
In this method, the primary haul-off rollers and herringbone nippers make a 180-degree round-trip rotation, the film runs in a radius.This type of rotation allows the blown film die to remain stationary at all times, eliminating the "ripple" phenomenon by changing the film's running path to evenly distribute the thickness of the film bubble.
Automatic double winder
Automatic double winder is constitute with two stations that back to each other. Typically, it combines two winding stations with familiar machine functions into a complete set. With the various function, it produces both single layer and two-layers film. Besides.the machine is available to divide into two bodies for independent working according to the requirements of customer as well.
Company Profile
Hebei Chengheng Plastic Machinery Technology Co., Ltd. is located in Ningjin County, Hebei Province, one of China's plastic production and processing distribution centers. The transportation is very convenient.The company covers an area of 22,000 square meters. We have a modern intelligent operation workshop, specializing in the R&D and production and sales of biodegradable film blowing machines, ultra-high-speed intelligent film blowing machines, multi-layer co-extrusion intelligent film blowing machines and other plastic machinery.
Certifications
Packaging & Shipping
FAQ
Q: How about after-sales service? How long is the machine warranty?
A: We guarantee lifetime after-sale service once you bought our machine, you can call us or send us any questions about the machine.
Q: How long is your delivery time and how many machines can you produce per month?
A: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q: How long can your machine work continuously?
A: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q: Does your factory need agents? What are the thresholds?
A: We need to recruit agents, welcome to inquire for more details.
Q: Where is your factory? How can I visit there?
A: We are located in Ningjin County, Hebei Province, one of China's plastic production and processing distribution centers. It only takes one hour by high-speed rail from Beijing and 2-3 hours by plane from Shanghai and Guangzhou.Warmly welcome domestic and foreign customers to visit us.

---
