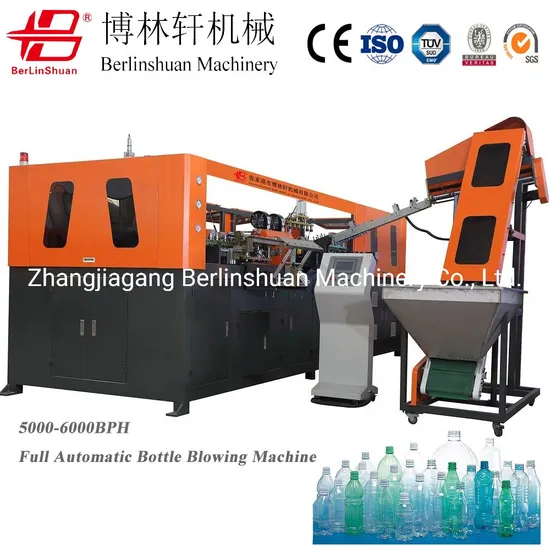

5000-6000bph Plastic Pet Bottle Making Moulding Machine

Product Description

Full Automatic Bottle Blowing Machine

Flow chart.
High Pressure Air Compressor -- Air Tank -- Air Fiter -- Air Dryer -- Low Pressure Air Compressor -- Air Fiter -- Full Automatic
Blow Moulding Machine -- Mould -- Water Chiller

Bottle type specification	cavity	6
	theory output (PCS/HR)	5000-6000
	Max. volume (L)	2L
	Bottle mouth maximum overall diameter (mm)	28-38mm
	Bottle biggest diameter	100mm
	Bottle maximum height	330mm
Power specifications	Light tube quantity	32pcs
	Light tube power	1.25kw
	Maximum heating power	40kw
	All electric machine installation	43kw
	Actual consumption	21.5kw
Air pressure specification	Work pressure	7-9kg/cm2
	Low-pressure gas consumption	1600Ltr/min
	Blow bottle pressure	25-35kg/cm2
	Higher -pressure gas consumption	3000 Ltr/min
Frozen water specification	Work pressure	5-6 kg/cm2
	Temperature range	10°C
	Consumption	8000kcal/hr
	Frozen water flow	88Ltr/min
Machine specification	Size of the machine	5.5x1.8x2 (m)
	Weight of the machine	4.5ton

Feature for PET Bottle Blowing MachineA. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the
rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the
reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a
state of safety in case of a breakdown in certain procedure.

---
