Hsg Speed Metal Steel Stainless Steel Aluminum Copper Cutter Fiber Laser Cutting Machine 1kw 2kw 3kw 4kw

Product Description

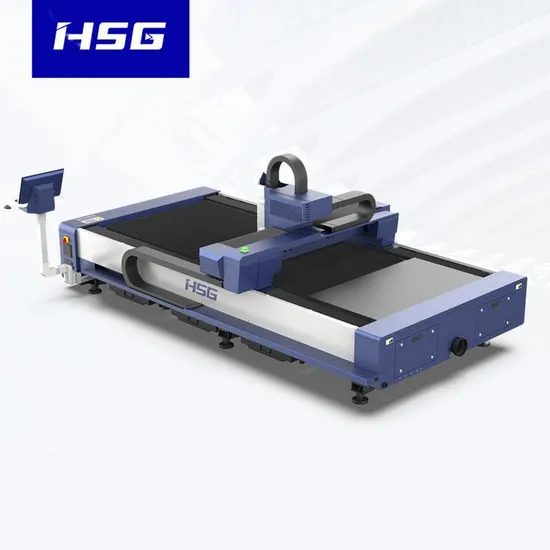

hsg cnc fiber laser cutting machine for sheet metal steel 1000W-12000W
Introduction
Although the power of G3015C fiber laser cutting machine is 1500W(plate / sheet laser cutting machines)
Application
Applicable materials: stainless steel and aluminum of 0.5-8mm, carbon steel of 0.5-16mm, brass of 0.5-6mm, copper of 0.5-4mm, galvanized plates, cold-rolled sheets and more.
Application industry: The G3015C laser cutter is widely used for external processing of metal sheets, home decorations (window grilles, laser-cut screen door), elevators, aerospace components,instruments and more.
GC is the third generation of GC after technical upgrades and innovation. It is small in size, only equalling to a large SUV, and has single platform, therefore, GC III is relatively cost-effective than other models.
Product Parameters

Machine Parameters
Model	Power	Working Area (L*W)	X/Y-axis Positioning Accuracy	X/Y-axis Repositiong Accuracy	No-load Speed	Acceleration	Loading Weight of Platforms	Overall Dimensios (L*W*H)
G3015C III	1500W-6000W	3000*1500mm	±0.03mm/m	±0.03mm	140m/min	1.2G	700kg	4900*2250*1700mm
G4015C III	1500W-6000W	4000*1500mm	±0.03mm/m	±0.03mm	140m/min	1.2G	1050kg	5560*2250*1700mm
G4020C III	1500W-6000W	4000*2000mm	±0.03mm/m	±0.03mm	140m/min	1.2G	1400kg	6015*3300*1700mm
G6015C III	3000W-6000W	6000*1500mm	±0.03mm/m	±0.03mm	140m/min	1.2G	1500kg	8300*2800*1700mm
G6020C III	3000W-6000W	6000*2000mm	±0.03mm/m	±0.03mm	140m/min	1.2G	2000kg	8300*3300*1700mm
G6025C III	3000W-6000W	6000*2500mm	±0.03mm/m	±0.03mm	120m/min	1.2G	2500kg	8300*3760*1700mm
G8025C III	6000W-12000W	8000*2500mm	±0.03mm/m	±0.03mm	120m/min	1.2G	3200kg	10500*3600*1700mm
G6025C III-H	6000W-12000W	6000*2500mm	±0.03mm/m	±0.03mm	100m/min	1.2G	4700kg	8600*3800*1700mm
G8025C III-H	6000W-12000W	8000*2500mm	±0.03mm/m	±0.03mm	100m/min	1.2G	6300kg	11000*3800*1700mm
G12025C III-H	6000W-12000W	12000*2500mm	±0.03mm/m	±0.03mm	100m/min	1.2G	3200kg	15300*3800*1700mm

* Machine appearance, technical parameters, function description, data comparison shown in this page/video/picture are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine. Detailed Photos
Ipg Raycus CNC desktop Fiber Laser Cutting Machine for Carbon Stainless Steel Sheet Aluminum with 1500 watt 2000/3000/6000W/12000W Laser Cutter Metal
1. Further Upgraded
no-load speed 140m/min, acceleration 1.2G, 40% faster than 2nd generation, accelerate from 0m/min to to 100m/min in 3.2s.
* no-load speed 140m/min
* acceleration 1.2G

2. Alpha T CNC System
* Self-developed by HSG Laser
* Easy to operate even by green hands
* Match with 2000+ process data on its graphical programming interface
* Compatible with multiple graphic files, incl. DXF, DWG, PLT and NC code
* Improve stock layout and material utilization by 20% and 9.5%, with no limit of quantity of spare parts

3. Cutting Head
* accuracy ±0.01mm

4. The Latest Generation of Aviation Aluminum Beam
* Light: Select 6 series aviation aluminum alloy, light-weight and dynamic performance of beam
* Solid: Honeycomb compressive structure design in accordance with aerospacecraft design standards
* Durable: Extrusion molding process adopted, no air or sand hole

5. Carbon Steel Welded Machine Bed
* 20 years using without deformation
* carbon steel adopted, with less impurity, less heat absorption

6. GC III performs in sheet cutting and we will carefully check the entire machine and all components before delivery to you. Cutting Sample
* Customizable size: 4m×2m, 6m×2m, 8m×2m.
** We offer lasers in a variety of powers. The material and thickness levels to be cut directly depend on the laser power.

Compatible Materials
Stainless steel Carbon steel Galvanized steel Cold rolled steel Titanium Electrolytic steel
Customer Case Company Profile
HSG ® LASER COMPANY HSG Laser, founded in 2006 as a hi-tech enterprise focusing on R&D, production and sales of laser equipment, is dedicated to serve global customers with intelligent metal forming solutions.
Packaging & Shipping


After Sales Service
FAQ

1. I knew nothing about this machine, what kind of machine i should choose?
-So easy . Just tell us what you want to do by using laser machine, then let us give you perfect solutions and suggestions.
2. What can it welding?
-Laser machine for metal usually deal with carbon steel, stainless steel, aluminum, brass and alloy.

3. How long is the warranty?
-We offer 1-year warranty.
