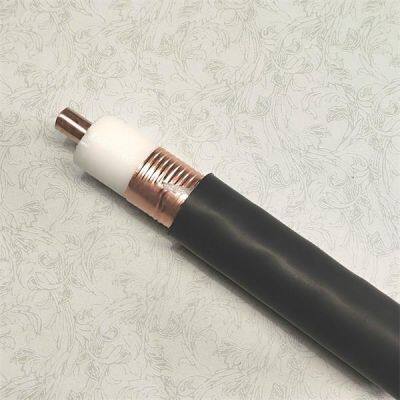

| 2.4GHz&5.8GHz WLAN Radiating cable HLRCTYZ-50-16(5/8") Leaky cable | ||
| 1、Leaky cable functions as a distributed antenna to provide communications in tunnels, mines and large building complexes and is the solution for any application in confined areas. 2、Slots in the copper outer conductor allow a controlled portion of the internal RF energy to be radiated into the surrounding environment. Conversely, a signal transmitted near the cable will couple into the slots and be carried along the cable length. 3、This leaky cable utilize a low-loss cellular polyethylene foam dielectric and a Corrugated copper foil outer conductor which offers a superior electrical performance together with good bending properties. 4、This product is suitable for WLAN communication systems, with low loss characteristics. | ||
| Technical features | ||
| Structural dimensions and materials | ||
| Inner Conductor | Copper Clad Aluminum Wire | 6.8 mm |
| Insulation | Physical Foam Polyethylene | 17.7 mm |
| Outer Conductor | Overlapping Copper Foil- | 18.3 mm |
| Jacket | Low Smoke Halogen-free Fire-retardant | 20.8 mm |
| Mechanical and environmental specifications | ||
| Minimum Bending Radius | 125mm | |
| Repeated Bending Radius（15 times） | 250mm | |
| Bending Torque | 13.5N·m | |
| Weight | 350g/m | |
| Recommended Clamp Distance | 0.8mm | |
| Minimum Distance to Wall | 80mm | |
| Tensile Force | 1350N | |
| Storage Temperature | -30 ℃ ~ ﹢80 ℃（LSZH) | |
| Installation Temperature | -20 ℃ ~ ﹢60 ℃（LSZH) | |
| Operation Temperature | -30 ℃ ~ ﹢80 ℃（LSZH) | |
| Electrical specifications | ||
| Capacitance | 75pF/m | |
| Impedance | 50±2Ω | |
| Velocity | 89% | |
| Insulation Resistance- | ＞10000MΩ•km | |
| Jacket Spark | 8KV | |
| Insulation Voltage | 6KV | |
| Inner Conductor DC Resistance | 2.2 Ω/km | |
| Outer Conductor DC Resistance | 3.5 Ω/km | |
| Operating Frequency | 2400~6000MHz | |
| VSWR | ≤1.4 | |
| Resonant Frequencies（MHz） | 455,1365,2275,3185,4096,5005,5915 | |
| Attenuation and Coupling Loss | ||
| Frequency（MHz） | Attenuation（dB/100m，20℃，±5%） | Coupling Loss（dB,2m,50%/95%，±5dB ） |
| 2400MHz | 8.35 | 73/79 |
| 2500MHz | 8.70 | 70/76 |
| 5000MHz | 14.1 | 64/70 |
| 5200MHz | 14.5 | 63/68 |
| 5500MHz | 16.1 | 64/70 |
| 5800MHz | 16.9 | 65/70 |
