Drying Machine Use for Grain Corn Embry Feed

Product Description

drying machine use for grain corn embry feed
Description

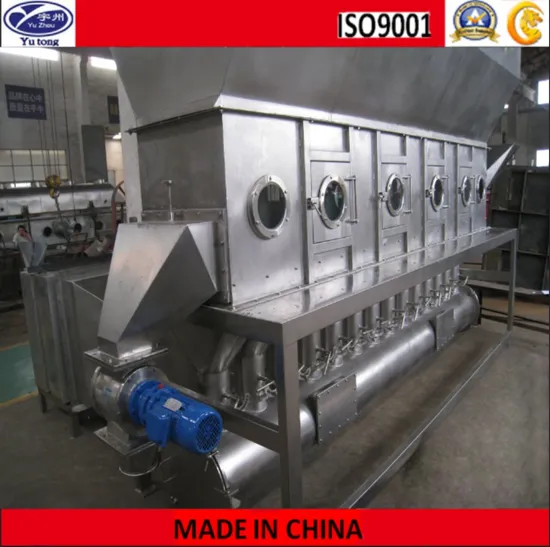

The XF Boiling (or Fluidizing) dryer is mostly used for drying different kind of Vanillin product. We already have lots of different customers of Vanillion in China, some are the top leading enterprise in the line.

Application
The boiling dryer is designed and manufactured for drying powdery or granular materials in the pharmaceutical, health care products, food, chemical and other industries. Vanillin drying production is an example of application of fluidized drying machine in chemical industry.
Vanillin, also called vanilline, is a broadly used edible spice. It is widely used in seasoning food such as cakes, cold drink, chocolate and sweets.

Features
1. This Boiling dryer operates under closed negative pressure without any dust explosion.
2. Using anti-static filter materials, our fluidized drying machine operates safely and stably.

Process Flows of Fluidizing Dryer in Vanillin Drying Production
Technical Specifications of Fluidizing Dryer

odel	Bed area (m2)	Drying capacity (H2O kg/h)	Fan power (kw)	Air pressure (Pa)	Air flow (m3/h)	Inlet air temperature (C)	Outlet air temperature (C)	Steam consumption (kg/h)	Power consumption (kw)
XF10A	0.25	10-15	5.5	4900	2300	60-200	40-80	50	30
XF10B			4	3800	2300
XF10A	0.5	20-25	7.5	5000	3100			100	60
XF10B			5.5	3500	3100
XF10A	1.0	30-45	15	6000	4200			150	90
XF10B			11	4700	4200
XF10A	2.0	50-80	22	7400	6000			250	150
XF10B			18.5	5900	6000

The drying capacity can be affected by material property, solid content, inlet/outlet temperature.

---
