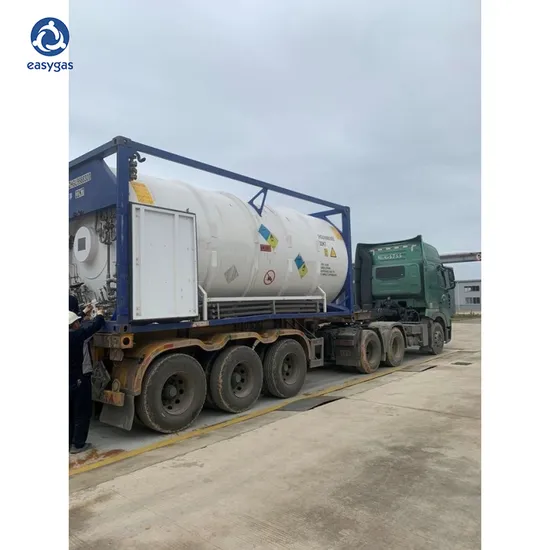

20FT Chemical Industry Transport ISO Tank Container

Product Description

Product Parameters
LOX, LN2, LAR ISO tank 20ft

Description		Parameters
Model		1CC-TC-18400/17
Total volume		20m3
Effective volume		18.4m3
Loading medium		LOX,LIN,LAr
Design code		ASME Section Vll DIV 1-2023+IMDG/ADR/RIDTIR/ CSC/ UIC/ TC/ US DOT(CFR49)
Main material		inner vessel	SA-240M 304(ASME Section II PART A )
		outer vessel	Q345R (GB/T 713)
Working temp.		≥ -196 ºC
Working pressure		2.2 MPa
Design pressure		2.2 MPa
Test pressure		2.9 MPa
Static evaporation per day		LIN ≤ 0.338% LAr ≤ 0.25% LO2 ≤ 0.225%
Corrosion allowance		0 mm	1 mm
Welding joint coefficient	Class a	1.0	0.85
	Class b	1.0	0.85
Filling ratio		0.92(LIN/LOX) 0.80(LAr)
Insulating type		high vacuum multilayer
Total net weight		11360 kg
Max loading weight		14823 kg (LN2)
Total weight with full loading		26183 kg
Dimension		6058×2438×2591 mm

LCO2 ISO tank 20ft

Description		Parameters
Model		1CC-TCC-20/2.4
Total volume		20.11m3
Effective volume		18.5m3
Loading medium		LCO2
Design code		ASME Section Vll DIV 1-2023+IMDG/ADR/RIDTIR/ CSC/ UIC/ TC/ US DOT(CFR49)
Level gauge		Chinese maker
Main material		inner vessel	SA-240M 304(ASME Section II PART A )
		outer vessel	Q345R (GB/T 713)
Working temp.		≥ -40 ºC
Working pressure		2.2 MPa
Design pressure		2.2 MPa
Test pressure		2.9 MPa
Static evaporation per day		/
Corrosion allowance		0 mm	1 mm
Welding joint coefficient	Class a	1.0	0.85
	Class b	1.0	0.85
Filling ratio		0.92
Insulating type		high vacuum multilayer
Total net weight		12210 kg
Max loading weight		21790 kg
Total weight with full loading		34000 kg
Dimension		6058×2438×2591 mm

Product Description
Good Quality ISO Tank can be used for a wide range of applications. They are standardised to ensure smooth distribution logistics and cost-efficient series production. Each tank is vacuum-insulated and can be delivered as a vertical or horizontal installation. The inner vessels and piping are made of stainless steel to ensure high-grade cleanliness - particularly important for the food and electronics industry. The outside shell is specially coated and a vacuum-perlite system with a molecular sieve adsorbent is applied to ensure outstanding insulation.
Detailed Photos
Other Products

Cryogenic Storage Tank

gas cylinder

SO2

instant freezer

Ethylene

liquid nitrogen container

Company Profile
Shandong Yizhong Industrial Co., Ltd. stands as a leading force, providing a full spectrum of essential industrial gases, state-of-the-art equipment, and unparalleled applications expertise. Our products serve a multitude of sectors, including refining, chemical, metals, electronics, manufacturing, food preservation as well as beverage industry.With a relentless focus on research, development, and production, Yizhong Industrial epitomizes excellence in the realm of industrial gases and equipment. Our unwavering commitment to a safety-first ethos ensures that we deliver unparalleled service quality, propelled by a desire to exceed our customers' expectations.
Cooperation


Packaging & Shipping
FAQ
Q1: What products can I order from your company?

A1: We specialize in industrial gas and relevant equiment, such as cryogenic liquid storage nitrogen tank, liquid nitrogen doser, liquid nitrogen freezer, respirator ect. We can also provide cryogenic storage technology.

Q2: What is your production standard?

A2: GB/ISO 9001 Quality Certificate.

Q3: Can you do custom-made?

A3: OEM,ODM welcome.
(1) Silk print your logo on your box
(2) Customized color box3) Design and produce based on your idea and draft

---
