Product Details
Product Description
Product Description

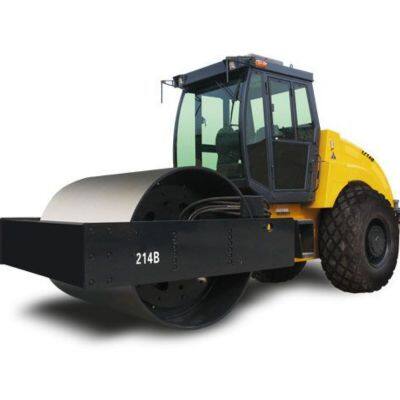

Heavy duty vibratory rollers effect powerful centrifugal force and great static linear load,They are suitable for non-cohesive materials,such as sandy soil,gravel,crushed stones,rock filings and slightly cohesive soils,designed for large foundation constructions such as high-class highways,mines,dams,airports,harbors,railways and industrial areas etc.
Main Features
▲Mechanical travel drive,double amplitude,hydraulic vibration and steering with optimal function/price ratio and reliable performance.
▲Reliable Yuchai Series diesel engine for convenient operation and maintenance.
▲Two sets of brake devices,a hand brake and foot pedal brake,assure the machine's safefy and dependability.
▲Spacious and comfortable cab mounted on top quality rubber damping elements.
▲World advanced technology is adopted for the hydraulic vibration technology,high in reliability,simple and convenient in maintenance,and low in cost.
Main Technical Parameters
| MODEL |
| 218B | 216B | 214B | 212 |
| Operating mass | Kg |
|
|
|
|
|
| 18000 | 16000 | 14000 | 12000 |
| Static linear load | N/cm | 428 | 380 | 326 | 276 |
| Vibrating frequency | Hz | 30 | 30 | 30 | 30 |
| Vibrating amplitude | mm | 1.9/0.95 | 1.8/0.9 | 1.7/0.8 | 1.8 |
| Centrifugal force | KN | 390/280 | 320/180 | 290/160 | 270/140 |
| Travel speed | Km/h |
|
|
|
|
| 1st gear |
| 2.0 | 2.0 | 2.0 | 1.8 |
| 2nd gear |
| 4.0 | 4.0 | 4.0 | 3.7 |
| 3rd gear |
| 10.5 | 10.5 | 10.5 | 9.7 |
| Grade ability | % | 30 | 30 | 30 | 35 |
| Steering angle | 。 | 35 | 35 | 35 | 35 |
| Ground clearance | mm | 432 | 432 | 432 | 360 |
| Electrical voltage | V | 24 | 24 | 24 | 24 |
| Tuming radius | mm | 7000 | 7000 | 7000 | 7000 |
| Vertical oascillation | 。 | 8 | 8 | 8 | 8 |
| Tyre size |
| 23.1-26 | 23.1-26 | 23.1-26 | 17.5-25 |
| Overall length | mm | 6200 | 6025 | 5900 | 5640 |
| Overall width | mm | 2280 | 2280 | 2280 | 2258 |
| Overall height | mm | 3050 | 3050 | 3050 | 2970 |
| Drum width | mm | 2100 | 2100 | 2100 | 2100 |
| Drum diameter | mm | 1570 | 1570 | 1570 | 1400 |
| Drum rim thickness | mm | 36 | 24 | 24 | 24 |
| Wheelbase | mm | 3380 | 3265 | 3185 | 3080 |
| Diesel model |
| CUMMINS 6BT5.9 | CUMMINS 6BT5.9 | CUMMINS 6BT5.9 | CUMMINS 6BT5.9 |
| Diesel power | Kw | 97 | 97 | 97 | 97 |
| Diesel speed | r/min | 2000 | 2000 | 2000 | 2000 |
| Fuel tank capacity | L | 220 | 220 | 220 | 180 |
| Hydraulic tank capacity | L | 160 | 160 | 160 | 150 |
>>
