Basic Info.

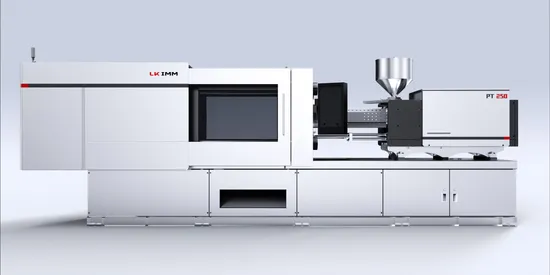

Model NO.
Potenza-III 200
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Computerized
Computerized
Certification
CE, ISO9001:2008
Transport Package
Wooden Package
Specification
5580*1310*2000
Production Capacity
500/Mon
Product Description
Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 3 in China.
We have over 10 production bases worldwide, 1 in Taiwan, and 1 acquired company in Italy. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang.
There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system provide customs all-around fully coverage customer service. K6 series adopts the new Internet of Things injection molding 5G concept, with independent knowledge and technology connotation. The injection power of this series is increased by 10% ~ 30%, and the new machine hinge point optimization design, with low noise, energy-saving, environmental protection, cloud injection interface, and other significant characteristics.
Advantages
1. Enlarged design of the mode-locking structure
2. The whole machine layout is reasonable, and the shape line is firm
3. The momentum is strong and the cycle is shorter
4. High response, low noise hydraulic system
5. High precision linear guide injection unit
6. Add cloud injection molding network interface
Use of application
Technical Parameter List
| | ITEM | UNIT | PT200 |
| Shooting Part | Shot Weight(ps) | g | 318 | 393 | 475 |
| Screw Diameter | mm | 45 | 50 | 55 |
| Injection Volume | cm^3 | 350 | 432 | 522 |
| Injection Pressure | Mpa | 230 | 186 | 154 |
| Screw L/D Ratio | L/D | 24 | 22 | 20 |
| Injection Rate | cm^3/s | 191 | 236 | 285 |
| Plasticizing Capacity(ps) | kg/hr | 84 | 105 | 137 |
| Screw Speed | r/min | 0-210 |
| Hopper Capacity | L | 60 |
| Clamping Part | Locking Force | KN | 2000 |
| Die Height(Min-Max) | mm | 180-550 |
| Opening Stroke | mm | 490 |
| Space Between Tie Bars | mm | 530*530 |
| Ejector Stroke | mm | 150 |
| Ejector Force | KN | 67 |
| Others | Motor Capacity | KW | 25.4 |
| Max. Working Pressure | Mpa | 17.5 |
| Oil Tank Capacity | L | 290 |
| Heating Capacity | KW | 14.8 |
