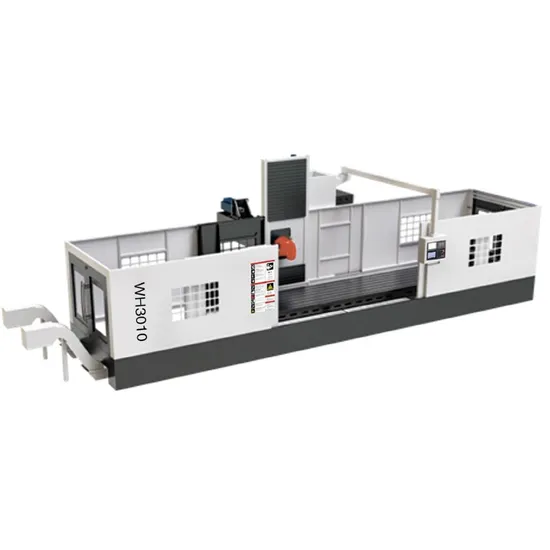

Universal Head Bed Type Milling Machine

Product Description

Product Description
Features of the machine: configuration of universal milling head, through manual conversion, can be vertical processing, and horizontal processing, but also can be any space Angle processing. After the configuration of the CNC system, the A, C automatic separation (2.5 degrees) universal head can also be configured.
Product Parameters

Specification		Unit	WH2010	WH2510	WH3010
worktable	Table width		1000
	Table length	mm	2000	2500	3000
	Max.load of table	Kg	4000	5000	6000
	T slots(number/width/distance)	mm	7x22x140
Travel	X axis travel	mm	2100	2600	3100
	Y axis travel	mm	1000
	Z axis travel	mm	1400
	X, Y, Z axis feed speed	mm/min	1-8000
	X, Y, Z axes rapid speed	m/min	12/12/12
Spindle	Distance from spindle nose to table surface	mm	100-1500
	Spindle taper		ISO50
	Spindle motor	KW	22/26
	Max. torque of spindle	N.M	475
	Max. spindle speed	rpm	2000
Magazine (optional)	Magazine capacity	NO.	24
	Magazine type		Arm type
	Max, tool diameter	mm	Φ105/200
	Max. tool length	mm	300
	Max. tool weight	Kg	15
Positioning accuracy (Semi-closed Loop)Only for CNC	Positioning accuracy-X	mm	0.02	0.025	0.03
	Positioning accuracy-Y	mm	0.015
	Positioning accuracy-Z	mm	0.02
Repeatability Positioning accuracy(Semi-closed Loop)Only for CNC	Repeatability Positioning accuracy-X	mm	0.012	0.014	0.015
	Repeatability Positioning accuracy-Y	mm	0.01
	Repeatability Positioning accuracy-Z	mm	0.012
	outline dimension	mm	4200* 2500 *2500	5200* 2500* 2500	6500* 2500* 2500
	weight	T	12000	15000	18000

---
