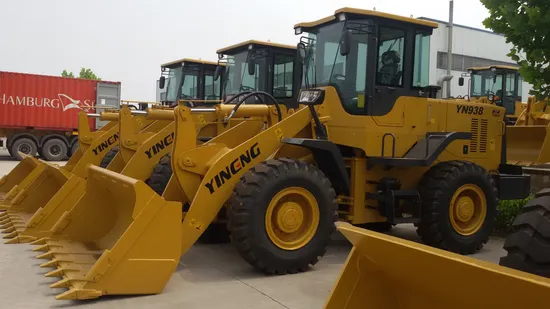

Yn938g Wheel Loader Heavy Duty 3ton Loaders

Product Description

1.8 m3, 3 ton front wheel loader, with ISO9001: 2000 and CE approved.
* Weichai DEUTZ diesel engine, higher power and reliability.
* Hydrodynamic transmission, three-element and single stage torque converter, high reliability, easy maintenance.
* Hangzhou Advance Gearbox Group BS428 power shift transmission, high efficiency and easy maintenance.
* Gear-shift controlled by flexible shaft makes operation more flexible and reliable.
* Single lever joystick control system, comfortable and flexible operation.
* Double sealed hydraulic pipeline joints with 24° Awl and O ring of international standard, avoiding oil leakage;
* Air over hydraulic disks on four wheel brakes.
* Large space articulated frames make operation and traveling stable.
* Working device with automatically levelling ability at high position.
* Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
* Integral, luxury instrument board.
* New, luxury cabin.
OPTIONALS:
(1) DongFeng Cummins 6BT5.9-C130 (97kw),
(2) A/C
(3) Quick Hitch
(4) Fork
(5) ROPS

Item	Specifications	Item	Specifications
Bucket capacity	1.8 m 3	Min. turning radius (outside of rear wheels)	5160 mm
Rated load	3000 kg	Steering angle	36º
Dumping height	3000 mm	Min. ground clearance	375 mm
Dumping distance	1100 mm	Wheel base	2700 mm
Boom lifting time	5.5 S	Tread	1865 mm
Total cycling time	10 S	Engine model	WP6G125E23
Max. speed	36 km/h	Rated power	92 kW/2300 rpm
Max. breakout force	103 kN	Tyrespecifications	17.5-25
Max. drawing force	90 kN	Overall dimensions	6910*2510*3100 mm
Max. grade ability	30°	Operating weight	10200 kg

Company Profile
Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.

---
