Mini Machine Manual Light Duty Horizontal Milling Machine Hh28 X6128

Product Description

Product Description

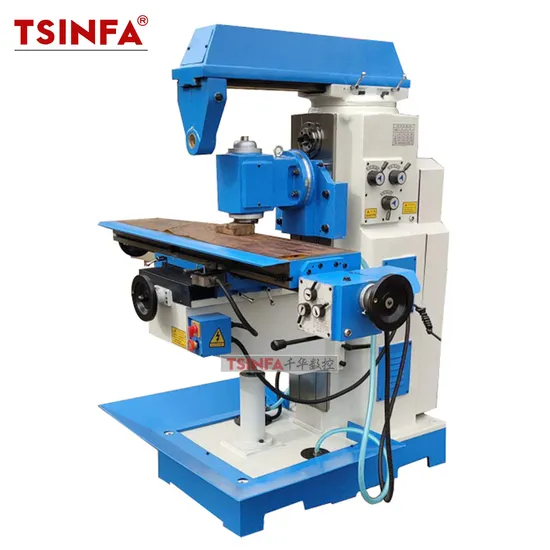

HH28 (X6128) horizontal universal milling machine is a powerful metal cutting machine with strong rigidity, wide feed speed range, and can withstand heavy-load chips. The spindle taper hole can be directly or through accessories to install various cylindrical milling cutters, disc milling cutters, forming milling cutters, end milling cutters and other tools. It is suitable for processing planes, bevels, grooves, holes, etc. of various parts. It is an ideal processing equipment for machinery manufacturing, molds, instruments, meters, automobiles, motorcycles and other industries.
Product Parameters

Specifications	Units	H28	HH36	H32	H40
Table size	mm	1200*280	1500x360	1320x320	1600x400
T- slot number and size	mm	3-14-70	3-18-80	3-18-70	3-18-90
Max load capacity	kg	200	300	500	800
Max. longitudinal travel	mm	680	980	700/680	900/880
Max. cross travel	mm	300	320	255/240	315/300
Max.vertical travel	mm	400	400	320/300	380/360
Spindle taper	/	M.T.4	7:24 ISO50	7:24 ISO50	7:24 ISO50
Range of feed speeds	mm/min	15-370 (8 steps)	X:22-555,Y:810, Z:595	X,Y:23.5-1180,Z:8-394	X,Y:23.5-1180,Z:8-394
Speed of rapid travels	mm/min	/	X:2300, Y:1533, Z:770	X:2300,Y:2300,Z:770	X:2300,Y:2300,Z:770
Spindle speed range	r/mm	40-1300	60-1800	30-1500	30-1500
Max. swivel angle of table	degree	±45°(optional)	±45°(optional)	±45°	±45°
Spindle speed grade	stpes	12	12	18	18
Distance from spindle center to working table	mm	0-300	0-400	30-350	30-410
Spindle motor power	kW	2.2	4	7.5	11
Overall dimensions (L*W*H)	mm	1680*1480*2000	1700*1700*1880	2294*1770*1665	2560*2130*1800
Gross Weight	kg	1350	2200	2650	3850

Detailed Photos
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.

FAQ
Q1:How can l choose the most suitable machines ?Please tell me your specifications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there?Our factory is located in Tengzhou City , Shandong Province, 277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .Q6: What's the MoQ?1 set .(Only some low cost machines will be more than 1 set )We want to know:1. We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible,
better to send us workpiece drawing, so that we can recommend you most suitable model!
2. lf need ClF Price, please kindly tell us the port of destination.

---
