Low Price Energy Saving Ring Die Pellet Production Machinery

Product Description

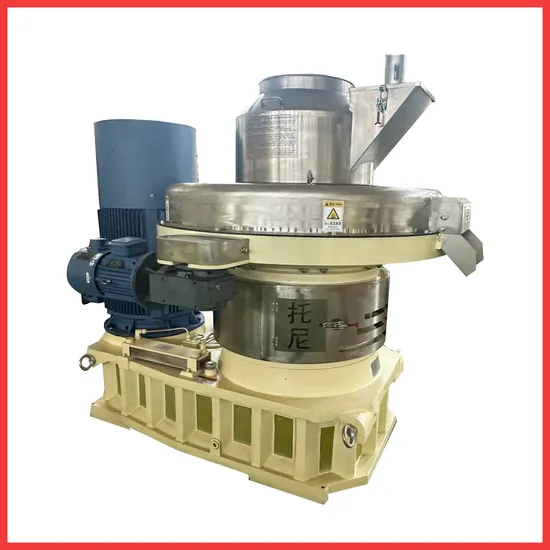

Low Price Energy Saving Ring Die Pellet Production Machine

DESCRIPTION:TONY wood biomass pellet machine is a new biomass fuel production machinery by using crushed sawdust . Compared with the old machine, it obsorbed the essence of horizontal ring die and flat-die Pellet Mill Machine, solved the insufficient pressure, die crack problems of horizontal ring die pellet machine, and overcame the small capacity, high failure rate of flat die wood. pellet making machine.

Model	Power(KW)	capacity(T/H)	weight(T)	size(mm)
TYJ551	90	1.5	5.5	2100*1300*2000
TYJ551	110	1.5-2	5.8	2100*1300*2000
TYJ551	132	2-2.5	6	2250*1400*2150
TYJ760	160	2.5-3	9	2500*1600*2400
TYJ860	220	3-4	13.5	2700*1700*2500

Main Features
1) Automatic lubrication system for the rollers and spindles which can reach the machines run 20 hours without resting.High
tempreture/pressure,and low temporeture/pressure warning and automatic lubrication.
-----Other suppliers did not have this system,they have to lubricate each working time for about 8hours.
2) Big gear Transmission for easy operation and lower maintenance.Two big gears,each weight is more than 1.3ton.
-----Other suppliers all use the reducer transmission,which is easy to break,and higher maintenance.
3) 4 rollers working, increasing press rate and capacity.
-----Other suppliers all use the 2 rollers.
4) Double layers ring die type, longer working lifetime.
Spare Parts for Biomass Pellet Machine
Double-layers Ring Die
All kinds of pellet machine only have 1 die(ring die).Material: alloy, stainless steelLife time: 3000-4000hours1.The professional heat treatment processing technology can make its hardness above HRC62.2.Vertical Ring die, feeding vertically.3.Double-lay die, dual use. When one side is damaged, turn over and use the other side.4.The compression ratio can be custom made
Rollers1.Number of rollers:2 pieces2.Die fixed, rollers running, materials centrifugal and evenly distributed around.3.Structure:roller shell and bearing4.Working life of rollers:1500-2000 hours
Spindle1.Our main shaft is forged.2.no air insde the main shaft while being forged3.hard to be broken while high-speed running
Requirements for raw materials
Size:Less than 5 mm
All the raw materials must be crushed into sawdust before going
to wood pellet machine.If not, you may need a wood chipper, wood crusher.
Moisture:10-15%
Better for pelletizing high quality pellets, Final Pellets For burning
Ø6mm/8mm: household stove burning;
Ø8mm-18mm: Industrial using
Energy Level: 5kwh/kg, Compared to Oil: 1 lty oil = 2kg wood pellets
Customer Case

Company Introduction
TONY is a professional manufacturer and exporter engaged in the research, production, sale and service of Biomass wood pellet line, wood pellet mill, grinding equipment, crushing equipment, drying equipment, cooler and other screening, conveying equipment.Having developed the pellet machines with reliable functions, reasonable design, energy saving and high efficiency low consumption, our vertical ring die pellet mill which use special gear transmission has sold very well during home and aboard.
We always supply the most suitable machines for customers with excellent quality and competitive price.

FAQ
1.Q:Are you a manufacturer or agency?
A:We are a manufacturer with our own factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Zhangqiu City, Shandong Province, China. You can fly to Jinan airport and then we will pick you up(40
minutes by car) . All our clients are warmly welcome to visit us!
3.Q:How does your factory do regarding quality control?
A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our
factory has gained CE.


Questions asked Frequently Q: What is a pellet mill/pellet machine?
A: A pellet mill/pellet machine is a machine that takes raw materials and shapes it into pellet form for multiple uses.
Q: What kind of materials can be pelletized?
A: Materials such as wood wastes, saw dust, corn cobs/stover/stalks, straw, switch grass, other grasses, distillers grain, paper, etc. Basically, most Biomass materials that can be ground down to sawdust form can be pelletized.
Q: What are pellets used for?
A: Pellets are used mainly for heating, animal feed, and animal bedding. Many other applications may apply.
Q: What size does my material need to be, to run through the pellet mill?
A: All materials must be 5mm or less.
Q: What size pellets can I make?
A: We have dies sizes from 4mm-12mm, depending on the machine or your raw materials.
Q: Do you ship worldwide?
A: Yes. We have sent machines to Canada, Europe, Asia, Southeast Asia, Africa, South America, Ireland and Australia.
Q: If I purchase a pellet mill, will you show me how to make pellets?
A: Yes, we do. We will instruct you how to use it via video or phone or engineer avaliable abroad if you need.

---
