Product Description
Product Description

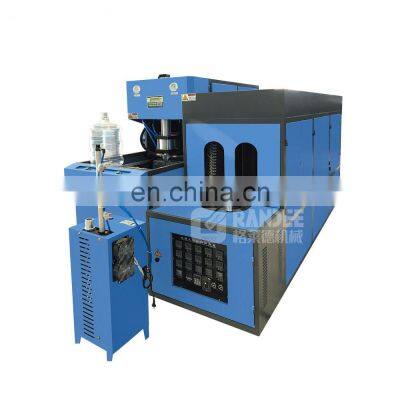

5 gallon PET plastic blowing machine price / water bottle making machine / blow molding machineProduct DescriptionApplication:Suitable for producing PET plastic containers and bottles from 5-25L. It is widely used to produce the carbonated drink bottle, drinking water bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc. Features:1. Adopting double crank to adjust mould ,heavy locking mould, stable and fast , adopting infrared oven to heat the perform ,the perform rotated and heated equally.2. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.3. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.4. The machine can be operated in the step-by-step mode and the semi-auto mode.5. The machine is small with low investment, safety lock system for the blow molding system, ensure safety operating.6. Volume exchange will be through the PLC control panel by setting the film sending time and filling time only.7. One person can operate semi-auto perform loading and product bottle discharging and combining the fully auto blower process.8. Space saving and low cost for equipment investment.9. Sound distinguish and lubrication device is equipped on the machine for easy maintenance. Machine show Heater One cavity mould Air compressor machine Main technical parameter:TypeItemUnitGD-B20L 5 gallon semi automatic blow molding machineContainerProduct material/PETVolumeL5L-25LTheoretic outputBPH90-180BPH for 5 gallon bottlePreform lengthmm15-460Preform inner diametermm5-200Max mould plate dimensionmm420(L)*500(W)Max mould thicknessmm40MoldingClamping forceKN330Mould opening strokemm38Machine size and weightMain machine weightT1Main machine dimensioncm218*77*196Heater dimensioncm237*68*165Heater weightT380Powerkw15Related productSemi automatic 5 gallon bottle washing machine: This machine operated by manual and is suitable for cleaning inside and outside of 5 gallon bottle. Semi automatic 5 gallon / 20L PET bottle blow molding machine: Semi automatic Blowing Machine for 90BPH-180BPH from 5 gallon bottle with one cavity, 5L bottle with 2 cavity can be also used in this blowing machine RO System:Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department.This RO system we can make to match up with your waterfilling machine from capacity from 500L/Hr to 50000L/hr.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc5 gallon water filling line: It include decapper, 5 gallon washing filling capping machine, light checker, heat steam shrinking machineAutomatic shrink labeling machine for 5 gallon neck label: Capacity: 50-100bottles/min can be chosenLabel material: PVC PET OPS, etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max)Label thickness: 0.03~0.13mm Company InformationOur exhibitionWorkshop deatilsOur teamOur ServicesCustomer's service:1.Grandee company can provide turn-key project for you, only you have any idea to start beverage factory plant.2. Grandee company have professional design team, our engineer can draw bottle samples and flow chart of workshop for you .3. Grandee company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottlematerial, pet or glass,etc After service:1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.2. We supply below necessary documents with the machine: a. Machine layout b. Electricity diagram c. Machine certificate d. General manual book/maintenance book3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance service.FAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare pats?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
