Outdoor HD P2.6mm LED Video Screen Wall 500X500mm LED Display Screen

Product Description

Product Description

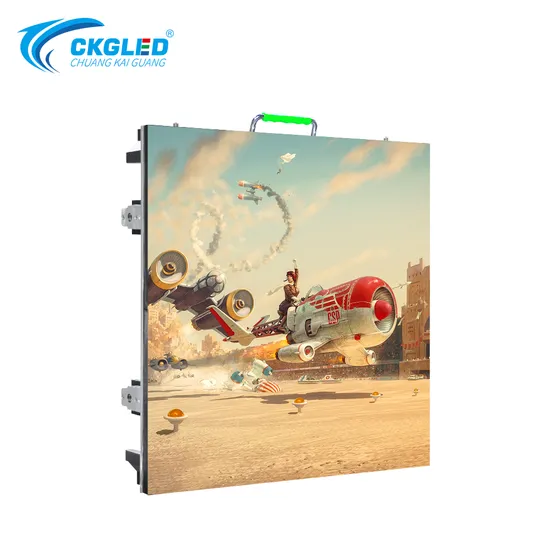

Outdoor HD P2.6mm led video screen wall 500X500mm LED display screen

Rubber handle design.
Noiseless design, excellent heat dissipation : Quiet design without fans.
Compatible designs of 500x500 and 500x1000mm panels.
3840Hz high refresh rate : Smooth and vivid videos without ripple and blank, clear images restored accurately, bringing to the audience greatest visual enjoy.
Low brightness high grey-scale : High grey-scale available even below 100nits brightness, the layering and vividness of the video superior to traditional screens.

Detailed Photos

Product Parameters

NO.	Parameter	Specifications
1	Model	X1pro
2	Pixel Pitch(mm)	2.6
3	LED	SMD1415
4	Screen Resolution (Pixels / m2)	147456
5	Drive Method (Scan)	1/24
6	Cabinet size(L*H)	500mm X 500mm
7	Cabinet(Kg)	7.5KG
8	Viewing angle	H:140° V:140°
9	Grey Scale	16bit
10	Refresh rate(HZ)	3840
11	Module size(mm)	250*250
12	Brightness(nits)	≥5000
13	Working Voltage(V)	AC 100~240V
14	AVE. power consumption (W/m2)	260
15	MAX. power consumption(W/m2)	780
16	IP grade	IP65 waterproof
17	controller	Nova
18	Working humidity	10~95%RH
19	Storage humidity	10~90%RH
20	Working temperature	-30ºC~60ºC
21	Storage temperature	-30ºC~70ºC
22	Compliance	CE / RoHS / FCC

Certifications
Packaging & Shipping
Company Profile

Service
Pre-producing

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution 4. Customized design
In producing
1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients
After service
1. 2 years free maintenance
2. 7 days a week, 24 hours a day on-line service for any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service
FAQ
Q1. Could I get a sample order of led display?A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products? A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?A: Yes, we offer 2 year warranty for our products in copper wire led and 3 years warranty for our gold wire product.
Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can reply on us

Q5: Do you have any MOQ limit for led display order?
A: No MOQ, 1pc order for sample checking is available.

Q6: How do you ship the goods and how long does it take to arrive?
A: We usually ship by sea and by air. It usually takes 3-7 days by air to arrive, 15-30 days by sea.

---
